Search results for: 'bar thei hung stall door'

Bobrick stainless steel straight grab bars for 1-1/2" diameter with a snap on flange to conceal the screws. Type 304 stainless steel tubing. Maximum weight capacity is 250lbs Known as B-6806x18, B-6806x36 and B-6806x42.

WingIt Grab Bar Fastener for extra strength mounting grab bars. The wingit 251-4 is designed to work for a hole 2-1/2" and 3-1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1-1/2" thick. Material used is a corrosion resistant stainless steel. One require for each flange. Fasteners will support up to 300 lbs load. Also known as 251-4.

Bobrick 1550 metro series plastic laminate privacy screens, Privacy screens are typically for the men's restroom, but can also act as a privacy in the women's restroom. We have different dimensions for more options to our customers. All Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

The Bobrick Partitions Bottom Door Insert for 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Bobrick Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

Bobrick B-35639 surface mounted waste receptacle with disposal door in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 3 gallon capacity and is 14-13/16"w x 28-3/16"h x 4-1/2" depth.

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Bobrick 1550 metro series plastic laminate free standing partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Bobrick 1550 metro series plastic laminate in a corner partitions, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Bobrick SCRC solid phenolic material in a Corner Partition layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The Bobrick Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The Toilet Partition ADA Slide Latch Set with Indicator is constructed of black acetate plastic and stainless steel.  This lock meets ADA Compliance Codes, and has a green and red occupancy indicator on the exterior.  Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6069.  Shipped with mounting screws. For 1" thick doors.

Bobrick SCRC solid phenolic partition free standing layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The Bobrick Partition Keeper Bumper Outswing is designed for use on a 1" thick square edged pilaster post.  The keeper is constructed of die cast metal and then chrome plated.  Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5720.  Shipped with mounting screws.

The Fiat Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.  Shipped with mounting screws.

The Bobrick Partition Keeper Bumper Inswing is constructed of chrome plated Zamac die cast metal.  The keeper is designed for 1" thick squared edged pilaster posts.  Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. The slot is 5/16" deep by 1-1/2" high. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing 1". Manufacture part # 5620.  Shipped with mounting screws.

The Toilet Partition ADA Slide Bolt Latch & Keeper Stainless Steel is constructed of black acetate plastic and stainless steel.  This latch meets ADA Compliance Codes.   Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.  Shipped with mounting screws. For 1" thick doors.

Bobrick B-212 clothes hook with bumper for toilet partition doors. This unit is solid aluminum casting with a matte finish. The hok projects out 3-3/4" x 1-1/2"w x 2"ht.

Bobrick B-35649 surface mounted waste receptacle in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 12 gallon capacity and is 17-3/8"w x 40-1/8"h x 8-7/8" depth.

Bobrick inswing keeper for door latch. Known by as 1040-35 or 201099. Used with Bobrick slide latch 1040-42.

Bobrick clothes hook for inside door mount. Also known as 1000869. For hanging coat when in toilet compartment.

Bobrick flat mount keeper for door latch. Also known as 1040-39. Used with slide latch for assembly

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

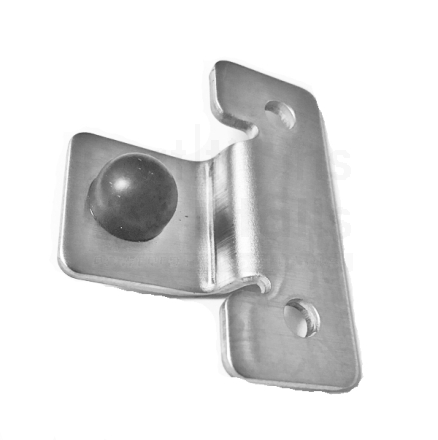

Bobrick outswing keeper for door latch. Also known as 1040-36, 7729. Used with slide latch. Hole spacing is 1-1/2".

Bobrick B-36903 recessed paper towel dispenser with waste receptacle in a satin finish stainless steel. The door has a 90 degree return. dispenses 300 c-fold or 400 multifold towels. Removable leak-proof waste container has a 1.6 gal. capacity. Rough wall opening 11-1/2"w x 29-1/2"ht x 3-3/4" minimum depth.

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42 or 1001492 includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

B-3699 surface mounted towel & waste receptacle. The unit holds up to 350 c-folds and 475 multifold towels. Knob latch retains door. Removable waste container has a 2 gallon capacity. For mounting this unit has a stainless steel skirt for surface mounting.

B-2621 Surface mounted paper towel dispenser on sale today. Satin finish stainless steel. Paper dispenser holds 200 c fold or 275 multifold towels. The door has knob-latch. Hemmed towel tray opening. The unit is 10-3/4" x 7-1/8"ht x 4" depth.

Bobrick B-369 recessed paper towel dispenser and waste receptacle in a satin finish stainless steel. Seamless beveled flange. Dispenses 350 c-fold or 400 multifold towels. knob latch retains door. Removable waste container has a 2 gal. capacity. Rough wall opening 12-5/8"w x 26-5/8"ht x 4" minimum depth.

Bobrick B262 surface mounted paper towel dispenser on sale today. Satin finish stainless steel. Paper dispenser holds 400 c fold or 525 multifold towels. The door has a tumbler lock with key and piano hinge for extra strength. Hemmed towel tray opening. The unit is 10-3/4" x 14"ht x 4" depth.

Bobrick B-3944 recessed convertible paper towel dispenser with waste receptacle in a satin finish stainless steel. The door has a 90 degree return. dispenses 600 c-fold or 800 multifold towels. Removable leak-proof waste container has a 12 gal. capacity. Rough wall opening 16"w x 54-3/4"ht x 4" minimum depth.

The Bobrick Toilet Partition Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

Bobrick B-2888 multi roll toilet tissue dispenser for surface mounted only. Satin finish in stainless steel dispensing mechanism. The door is equipped with a tumbler lock and holds up to two rolls 5-1/4" wide. The extra roll at the top will drop in place when the bottom roll is out. Theft resistant heavy duty spindles. The unit is 6-1/16" w x 11" ht x 5-15/16" deep.
