Restroom Accessories | American Specialties Inc.

ADA Vertical soap dispenser
for both liquid and lotion soaps
stainless steel
5" w x 8" h x 5" d
40 oz. capacity
Bulk Fill

Napkin / Tampon Disposal Recessed in Wall

Body: Type 304 #22 ga stainless steel, #4 satin finish.

Flange: Type 304 #22 ga stainless steel #4 satin finish, drawn one piece construction with 1/4" returns to wall surface. (Without miters or welds)

Push Panel: Type 304 #22 ga stainless steel self closing push panel door. *International Graphic Symbols are optional.

Waste: Type 304 #22 ga stainless steel, removable type waste, secured by pin tumbler lock. Pin tumbler commercial quality locks, keyed like all other A & J cabinets. *(Optional finger grip in lieu of lock)

Replacement Spindle
used on the 9A0311
5-5/16" Long x 7/16" Axle Dia.

"C" Fold or Multi-Fold
Tumbler lock, stainless steel and heavy duty piano hinge
Holds 275 Multi-fold or 200 C-fold towels
11"w x 8"h x 4"d

Dispenses 250 seat covers. Fabricated of 20 gauge type 304 stainless steel with a satin finish.

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

Roval Stainless Steel Mirror with Integral Shelf 20655 The gently radiused edges provide added strength and complement the curves of the ASI Roval™ Collection. Mirror frame and 6” wide curved edge shelf are fabricated of 18 gauge type 304 stainless steel with satin finish. Mirror frame has polished seamless mitered corners. 0.25” (6.4 mm) thick plate glass mirror. Warranted for 15 years against silver spoilage. Choice of sizes. or Same as 20655 but with tempered glass

Napkin Disposal w/o Shelf Stainless Steel Surface mount 16 gauge utility shelf. Overall Size 7 1/2" x 10" x 3 7/8".  Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. American Specialties 0852 stainless steel napkin disposal unit.

Roval Stainless Steel Mirror 20650 The gently radiused edges uniquely complement the curves of the ASI Roval & trade; Collection. Frame fabricated of 18 gauge type 304 stainless steel with satin finish and polished seamless mitered corners. 1/4" thick plate glass mirror. Warranted for 15 years against silver spoilage. Sizes available are 18X30, 18X36, 24X36.

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

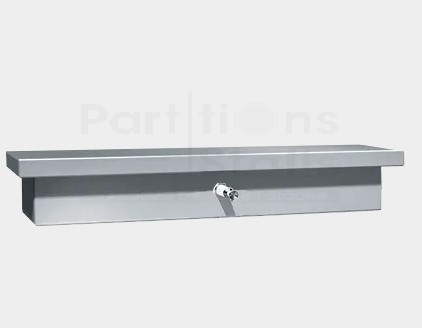

Stainless Steel ADA Soap & Shelf Combo
for liquid & lotion soaps. Model 0318
Dispenser 17-3/8" x 3-7/16" x 5-1/16"
83 oz.capacity

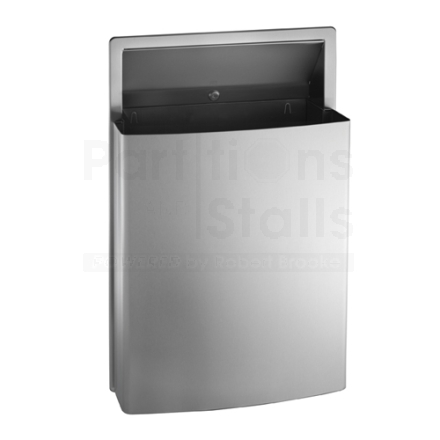

Roval Semi Recessed Removable Waste Receptacle. 20458 Easy maintenance — removable stainless steel waste receptacle locks into cabinet with a tumbler lock for security. Capacity 11.2 gal. (42.6 L). Fabricated of 20 gauge type 304 stainless steel with satin finish. Wall Opening: 15 5/8" W x 26 5/16" H x 4" D

Roval Recessed Paper Towel Dispenser, 20452 Dispenses 600 C-fold or 800 multi-fold paper towels. Door fabricated of 18 gauge type 304 drawn one piece stainless steel with satin finish. Door secured with 3/16" staked piano hinge and flush tumbler lock. Wall Opening: 11 3/16" W x 26 1/4" H x 4" D

Roval Recessed Hand Dryer, 20199

This high performing hand dryer, with a drying time of less than 15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty.

FEATURES:

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

Stainless Steel Waste Receptacle Recessed
22 gauge type 304 stainless steel
Top and bottom edges hammered of safety
12 gallon receptacle
16"w X 29"ht

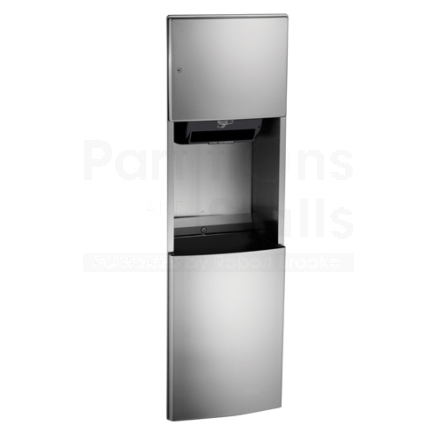

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Roval Paper Towel Dispenser, 20210 Dispenses 400 C-fold or 525 multi-fold paper towels. Fabricated of 22 gauge type 304 stainless steel with satin finish. Fitted with tumbler lock and heavy-duty stainless steel staked piano hinge.
ASI spec sheet

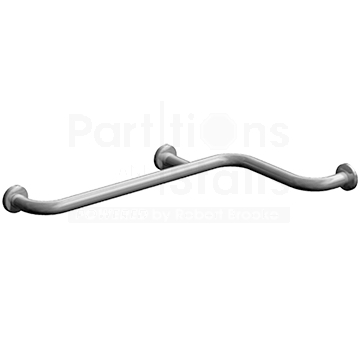

Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

Roval Dual Sanitary Napkin & Tampon Dispenser Dispenses 31 napkins and 22 tampons. Door made of 18 gauge type 304 satin finish stainless steel, with two flush tumbler locks. Universal coin mechanism is convertible for 25 cents, 50 cents or FREE (no coin) operation. Coin boxes have different lock and key than doors. Wall Opening: 15 5/8" W x 25 7/8" H x 4" D

Stainless Steel Waste Receptacle Surface Mount
22 gauge type 304 stainless steel
Top and bottom edges hammered of safety
12 gallon receptacle
16"w X 29"ht X 7"d

Roval Automatic Roll Towel Dispenser & Waste Receptacle Fabricated of 18 gauge type 304 stainless steel. 17.8 gal. (67.2 L) removable waste receptacle. Wall Opening: 15 13/16” x 54 11/16” x 10”
