The Sanymetal Partitions Ada Latch Cover Knob is constructed of Zamac die cast metal that is then chrome plated and polished.  This latch is unique in that it has a flat surface on the male portion of the cover to prevent slipping.  This latch is ADA Compliant.  This piece is also known as the 111940 and 650-9117, 8809, 8818.

The Toilet Partition ADA Slide Bolt Latch & Keeper Stainless Steel is constructed of black acetate plastic and stainless steel.  This latch meets ADA Compliance Codes.   Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.  Shipped with mounting screws. For 1" thick doors.

Toilet Partition Surface Mounted Black ADA Slide Latch Set W/ Indicator

Stamped stainless steel construction with a Black Finish. Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6065. For 1" thick doors.

Shipped with mounting screws.

The Toilet Partition ADA Slide Latch Set with Indicator is constructed of black acetate plastic and stainless steel.  This lock meets ADA Compliance Codes, and has a green and red occupancy indicator on the exterior.  Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The indicator is 2" in diameter and 13/32" thick. The keeper is 3/4" wide by 1-7/16" tall by 1/16" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6069.  Shipped with mounting screws. For 1" thick doors.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch.  Manufacture part # 5020.  Shipped with mounting screws.

The Partition Slide Bolt Latch with Indicator is constructed of Cast Stainless Steel.  It is designed for 3/4" or 1" thick doors, and has a screw spacing of 2-3/4" on center.   We find this latch on Global Partition Corp and Global Partition Corp restroom stalls.  The manufacturer part number is 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.partitionsandstalls.com/partition-hardware/latches/chrome-plated.html

https://www.partitionsandstalls.com/partition-hardware/latches/cast-stamped-stainless-steel.html

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

The Hadrian Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The Partition Slide Bolt Latch Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The latch measures 1-1/2" Wide X 3-1/4" High, and 2-3/4" Between Screws.  We find this latch used on Accurate Partition Corp and Global Partition corp restroom stalls.  Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

The Partition Slide Bolt Latch 1-1/2" wide x 3-1/4 Long is constructed of cast stainless steel, and then brushed to the desired finish.  The hole spacing is 2-3/4" center to center.  This latch is used on Global Partition Corp and Accurate Partition Corp products.  The manufacture part numbers are  40-256300, 40-8562899, and 8698. This latch is Ada approved.

The Hiny Hider Aluminum Slide Bolt Latch 3-1/2" Screws is usually used on Solid Plastic (HDPE) Toilet Partitions.  Base is 4-1/2" tall by 2" wide by 1/8" thick. Latch bolt is 3-1/8" long by 1" wide by 1/4" thick, and has a 1" throw. The latch bolt is 9/16" from the bottom of the base to the under side of the latch bolt. Also known as a Bathroom Stall Aluminum Slide Bolt Latch and Toilet Partition Locks. Clear anodized aluminum construction.  The manufacture part #'s are 4988, 650-4051, 650-8543 and HLSLA.  This latch ships with the mounting screws.

The Knickerbocker Partition Turn Latch Knob is the male portion of there concealed latches. The cover that goes with this latch is the 9K0255. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this piece is 1410. Works with General partitions.Used with powder coated steel toilet partitions.

The Global Partitions Ada Latch Knob Cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9G0139AS meets ADA compliance codes.  This is one of 3 concealed latches that we know of that are held together by a screw instead of the retaining clip we find on most latches.  The manufacture part number is 40-8513370G. This was used up until October 2021.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

The Flush Metal Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

Accurate stainless steel ADA turn latch with screw. This version started January 2013 for all accurate partition doors and end September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8263350. Cast stainless steel finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

Bobrick 5/64" allen wrench only for slide latch for partition doors. Also known as 1000900. Used with slide latch for assembly.

The Knickerbocker Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished. The Cover has an outer diameter of 1-3/4" with a 1-11/32" inner ring diameter. The Knob has an outer diameter of 1-5/8" and and inner diameter of 1-11/32". ADA Lever is 3-3/4" long. Also known as a Bathroom Stall ADA Concealed Latch. Manufacturer part # 6170. Works with General partitions. Used with powder coated steel toilet partitions.

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

The Fiat Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.  Shipped with mounting screws.

The Mills Toilet Partition Slide Bolt Latch Concealed is a popular latch used by them.  Latch cover plates are 1-3/4" wide by 1-3/8" high. The latch switch is 1-15/32" wide. The latch bolt is 3/8" diameter. The spacing between the cover and the latch 1-1-32". They are constructed of Zamac die cast metal that is then chrome plated and polished.  This is a one of a kind latch. Also known as a Bathroom Stall Concealed Latch. Manufacture part # 4230, HDWT T290.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563.

The All American Toilet Partition ADA Latch Knob & Cover is used on All American Metal Corp 1" thick metal doors.  This will replace our 9AA104C to make your door ADA Compliant.   The manufacturer's part number is 104 HC ADA.

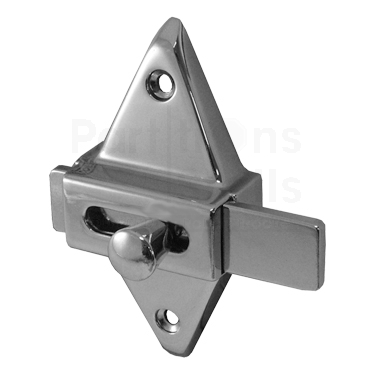

The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

Metpar concealed Ada lever latch knob with cover. Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a bathroom stall concealed ADA lever latch cover and knob assembly or a barrier free concealed latch knob, Cover and pin. Manufacture part # 6080.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

The Knickerbocker Partition Latch Knob Cover is the female portion of there concealed latches.  The latch knob that goes with this latch is the 9K0250. They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer part number on this piece is 2620. Works with General partitions. Used with powder coated steel toilet partitions.

Chrome plated global slide latch with indicator and emergency access. Overall dimension 2-3/4" x 1-1/2" with 2-1/4" hole spacing. Used with new style doors 10/1/21 to current. Used with a 1 inch door. Security screws included. Manufactures part number 40-8513010.

The Accurate Toilet Partition Slide Bolt Latch Stainless Steel is constructed of cast stainless steel. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053.  This latch is used by Accurate Partition Corp and Global Partition Corp.   The one way screws and barrel nuts are included with this latch.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is just like every other slide bolt, except it has an offset bolt.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the underside of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacturer part # 5030.  Shipped with mounting screws.

Accurate ADA Turn Latch with Screw. This version started January 2013 for all accurate partition doors and ended September 2021. This old style is the exact same as Global's version, except the name on the cover latch part. Also known as 40-8513350. Chrome plated finish.

This turn latch will not replace previous version of Accurates old style turn latches that are no longer available.

The Flush Metal Toilet Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150
