Double Roll
Deluxe Chrome
Die Cast
tension spring controls tissue flow for 4-1/2" wide rolls

Double Roll Type Control-o-Roll
tough high impact plastic holder

The Matte Black Hadrian double door pull is designed to mount through a 3/4" thickness partition door. Constructed of stainless steel to have a matte black finish. Measures 6-3/4" in length with center to center holes spacings of 6-1/8". Designed for outswing and ADA doors. Will require a 7/32" hole to be drilled into door and should be istalled 7" from door edge. Comes with fasteners to mount double pulls through door. Known as manufacturers part number 670112-BLK.

Toilet Partition Double "H" Alcove Bracket Aluminum For 1" Panel to 1" Pilaster

Constructed of extruded anodized aluminum. Bracket is 2-1/2" high, 1-1/4" wide and 3" deep. Mounting thru holes 1-1/2" on center. The legs project out 1-3/16". Designed for 1" thick panels to 1" thick pilasters. This bracket is also known as a Double H Wall Bracket, Alcove Double H Bracket, Toilet Partition Double H Wall Bracket, or Bathroom Stall Alcove Double H Bracket. The manufacturers part number is 1734. The bracket ships with all the required fasteners.

Chrome Double TP Holder

Double sided door pulls in a cast stainless steel finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54403. This kit includes both handles and screws for 1" thick doors.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Double sided door pulls in a chrome finish. The overall width is 4-3/4" x 1" deep. The center screws are 3-1/2". This manufacturer number is 54400. This kit includes both handles and screws for 1" thick doors.

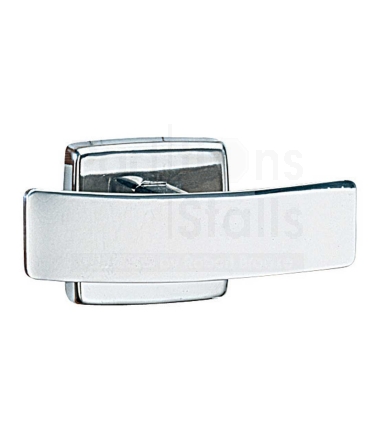

Bobrick B-672 double robe hook. Bright polished stainless steel material. The flange is 2"x2" and projects out 2-5/16" from wall.

B-2892 Bobrick double jumbo toilet tissue dispenser. The unit is a satin finish stainless steel. Equipped with a keyed lock. The spindle holds up to two 10" diameter roll and for a 3" diameter core. Stainless steel mounting plate and is 20-13/16"w x 11-3/8"h x 5-5/16" depth.

Double Hook Chrome Plated Projects 3-1/2", 4-1/2"ht

Surface Mounted Double Roll Type Holder Stainless Steel
Keyed 2 Roll Type surface mounted with key lock
6" w x 13" h x 6" d

The Partition Double Door Pull 5-1/2" stainless steel come as two handles for mounting back to back handles on an one inch thick door.  The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door. This is constructed of cast brushed stainless steel. The manufacturer part number on this part is 900112. Overall width is 6-3/4"

B-274 Bobrick toilet tissue dispenser for double roll. The unit is made of a cast aluminum satin finish with a plastic spindle that is theft resistant. Holds up to one roll 6" diameter. The unit measures 12-1/2"w x 4-7/8" projecting out from the wall. This also has a controlled delivery.

ASI Matte Black double roll toilet tissue holder is a surface mounted unit. Heavey gauge concealed mounting brackets allow this holder to support 2 standard rolls of toilet paper and comes with chrome rollers. The product is stainless steel with a matt black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

The Partition Double Door Pull 5-1/2" Chrome Plated come as two handles for mounting back to back handles on an one inch thick door.   The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufacturer part number on this part is 610112. Overall width is 6-3/4".

projects 2", ht 1-3/4"

3/4" Center to Center Hole Spacing

projects 2", ht 1-3/4"

projects 3-1/4", 2" dia

Ordering Online All Solid Plastic (HDPE) Panels Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All panels ship from the factory after 5 business day, plus 2-4 days travel. Note 14", 18", 24", 28", 34", 40", 46", 52", 55", 58", 59", 64", 70" and 76" x 55"ht are available. All panels are 1/4" less than size. The panels include standard aluminum mid bracket kit or up grade to ss channels for better support, includes 2 two ear brackets and 2 u brackets for 1" thick material.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.

Global Partitions Color Chart

Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.

color chart

Instructions

Hadrian Smooth Stainless Steel Panels are available with panel kits that include the brackets for the back wall and the pialster. All smooth surface stainless steel panels ship out in 48 hours and usually take 2-4 days travel. We offer a wide range of sizes, All partition panels are 1/4" less than the size and are 58" height. Partition panels are mounted 12" off the floor.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615350.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, equal.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 14" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with same thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 190269

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2868, and 650-8531-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

Global partitions ordering online all solid phenolic panels are solid phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths 16"-76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

White dispenser
Keyed 2 Roll Type
surface mounted with key lock
6" w x 13" h x 6" d

Global partitions new style door kits, used September 2021 to current. This door kit includes chrome plated zamac hardware, hinges and associated parts, slide latch with indicator and door keeper, coat hook. The adder is for outswing doors that included double door pulls, stainless steel top pin and 2" door stop. All security screws included. Factory part number 8513513 for inswing parts and 8513514 for the adder which is double door pulls and door stop. The hinges have been used for over 30 years.

To order out swing version you must order both parts as pictures shown for complete door kit.

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

Keyed 2 Roll Type
Dark translucent surface mounted with key lock
6" w x 13" h x 6" d
