The All American Toilet Partition Top Hinge 1" Door Insert is for plastic laminate restroom stalls.

The Bobrick Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Flush Metal Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

The American Sanitary Bottom hinge Insert For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Continuous Hinge Stainless Steel, 54"  is for use on Left Hand Outswing/ Right Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

The Bobrick Partitions Bottom Door Insert for 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

Scranton Partitions 8" Wrap Around Hinge Insert Replacements. This kit includes the Top and Bottom insert replacements. Design works with other manufactures 8" Wrap Hinges. Known as HHINSERTST by Scranton Products/Comtec/Hiny Hider.

The American Sanitary Toilet Partition Top Hinge Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

The All American Toilet Partition Bottom Door Insert is for use on there plastic laminate restroom stalls.  The insert has a polished chrome finish.

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

The Partition Hinge Assembly Cast SS is for use on 1" thick  Doors  and 1" squared edged pilaster Posts.  The kit includes top and bottom hinges, pintle, pin, inserts and all of the mounting screws.  They are constructed of cast stainless steel that is then brushed to the proper finish.  Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153.

The Ampco Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Left Hand Inswing, Right Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.  Shipped with all the fasteners.

Lh Inswing or Rh Outswing See Diagram

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

The Toilet Partition Square Barrel Nylon Insert Replacement Hinge Kit is for use with our 9A7051 (7413) and 9A7052 (7423) surface mounted bathroom stall hinge.  The kit includes new pins for the upper and lower hinges in this 9 piece package. Replacements for 13/16"-7/8" square.

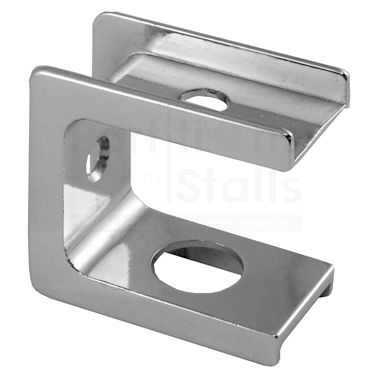

The Accurate Toilet Partition U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

The Global Toilet Partitions U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

The Toilet Partition Top & Bottom Hinge Kit  is for use on 1" Doors with 1" Square Edged Pilaster Posts.  The top and bottom hinges are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes top and bottom hinge, inserts, pintle, cam, top pin and all of the mounting screws.  This hinge set is designed for a maximum rotation of 110 degrees, past 110 degrees the hinge may fail.   Manufacture part # 63150.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Cast Stainless steel inswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11003.

Chrome plated inswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11300.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Flush Metal Partition Bottom Door Insert is for 7/8" thick doors and is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

The Continuous Hinge Stainless Steel, 54"  is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

The Toilet Partition Nylon Hinge Insert Replacement Kit is for use on the 9A7043 (7043), 9A7033 (7033), 9A7SS1 (7123), 9A7SS2 (7113), 9A70B1 (7021) and 9A70B2 (7011) bathroom stall surface hinges.  The pins measure 5/8" diameter by 2-3/4" long.  Manufacture part # 7035.

The Metpar Toilet Partition Bottom Door Insert For 7/8" Door is constructed of Zamac die cast metal and then chrome plated.  The door insert measures 2-5/16" wide by 1" wide by 1-3/16" high. The hex shaped hole is 5/8" and the round hole is 7/32" diameter. The material or rim is 5/16" high. Also known as a Bathroom Stall Door Insert Bottom 7/8". Manufacture part # 1530.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Right Hand Inswing, Left Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.  Shipped with all the fasteners.

Rh Inswing or Lh Outswing See Diagram

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Restroom Door Kit Inswing 7/8" Door & 1-1/4" Post Cast SS. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17803.

The Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster if for use on 7/8" thick doors and 1-1/4" thick squared edged pilaster posts.  Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  Kit includes Bottom Hinge, Pintle, Nylon Cam, Bottom Hinge Door Insert and mounting Screws. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.
