Bobrick stainless steel straight grab bars for 1-1/2" diameter with a snap on flange to conceal the screws. Type 304 stainless steel tubing. Maximum weight capacity is 250lbs Known as B-6806x18, B-6806x36 and B-6806x42.

Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

WingIt Grab Bar Fastener for extra strength mounting grab bars. The wingit 251-4 is designed to work for a hole 2-1/2" and 3-1/2" or deeper hollow walls with finished wall surfaces 1/4" to 1-1/2" thick. Material used is a corrosion resistant stainless steel. One require for each flange. Fasteners will support up to 300 lbs load. Also known as 251-4.

ASI Matte Black grab bars are surface mount and come with conceales snap flange harwdare. This finish is only available in a 1-1/2" diamater bar, constructed from 18 guage stainless steel and ADA Complaint. Uses 2 holes for the mounting plate and 3 dimples for attaching the cover to plate.  The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

ADA Grab Bar Mounting Plates Stainless Steel actual size is 2-11/16" diameter. These plates mount to your wall and the grab bar is held on by set screws. Also known as D1512-98.

Grab Bar Installation Kit Concealed Wood Backing, wood screws only.

Grab Bar Installation Kit Exposed for Wood Backing, Wood screws are included.

Grab Bar Installation Kit Exposed Masonry Wall screws and anchors

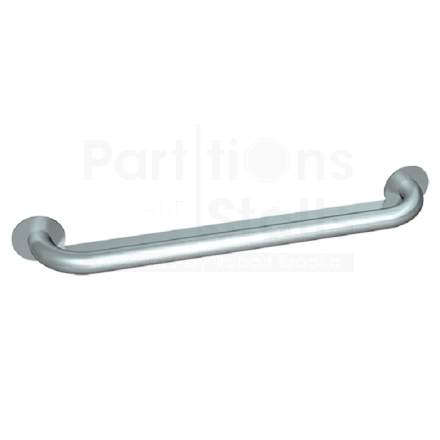

Security Chase Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 rods welded to the back of the flange for wall mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

*** DISCOUNTINUED SIZES 36", 42" AND 48" IN 2024-25 ***

Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.

Grab Bar Installation Kit Exposed 1" Panel ss plate with screw and nut.

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Ordering Online All Powder Coated Metal Wall Hung Urinal Screens Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall Hung 1" thick by 48" high panel. Available in the following widths - 12, 18, 24" x 48"ht screen. Two Standard Chrome Plated Brackets included.

Global Partitions Color Chart

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

The Partition Slide Bolt Latch Stainless Steel 3/8" Bar To Door, 2-3/4" Screws is constructed of cast stainless steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/4" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 3/8" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5033.  Shipped with mounting security screws.

The Partition Slide Latch Stainless Steel 3/8" Bar To Door, 3-1/2" Screws is constructed of cast stainless steel.  The latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5063.  Shipped with mounting security screws.

Swing Up Grab Bar (1-1/4" O.D) - Smooth - With Detent Stops at 0°, 45° and 90° Positions.Features include flange of 3″ diameter, 1/8″ thick type 304 stainless steel with a satin finish; exposed mounting screw holes are drilled and countersunk. Swing Up Grab Bar Locks firmly into place when lifted into an upright position. 1-1/4" OD. Projects 30" from wall. When properly mounted, swing-up type bar will sustain a static load of 250 lbs. Known as 10-3414.

Used with ADA Grab Bars For concealed mounting to the flange and set screw.

22.5"x41" Urinal Splash Stainless Steel Plates Cover panels or screens near urinal. Stainless Steel  rivets are included. This is mainly in the men's bathroom caused by the urinals next to the partition divider or wall hung screen.

Stainless Steel #12 X 2-1/2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91909. This uses a Torx bit to drive screw.

Grab Bar Installation Kit Exposed Dry Wall screws and toggles

Grab Bar Installation Kit Concealed Dry Wall screws and toggles.

Grab Bar Installation Kit Concealed Masonry Wall screw and anchor

Grab Bar Installation Kit Concealed 1" Panel 3"dia SS plate stud/nut

Hadrian Wall Mounted Privacy Screen's in powder coated are available in 48" heights by 18" or 24" wide. Standard chrome brackets are included. Wall hung screens are great for between urinals or a sink and urinal. The colors that are marked with an astris or has a usa flag on the color chart are a quick ship and take 48 hours to ship, then 2-4 day travel delivered any where in the usa. we also offer continuous aluminum and stainless steel brackets for extra support.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Security Front Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 holes on each flange for exposed mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

#12 X 2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91913. This uses a Torx bit to drive screw.

Stainless Steel #12 X 2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91919. This uses a Torx bit to drive screw.

#12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

#14 x 5/8" Screw 6 Lobe(T-27), Chrome, 7/16" diameter head, also known as 92193. This uses a Torx bit to drive screw.

The Toilet Partition Slide Bolt Latch 3/8" Bar To Door Clearance is constructed of Zamac die cast metal that is chrome plated and then polished.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 5/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5060.  Shipped with mounting screws.

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated
