Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

The Flush Metal Partition Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac dia cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

Global partitions complete solid phenolic material alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

The Accurate Toilet Partition Keeper Bumper for In swing doors is constructed of Zamac die cast metal, then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4" Square Edge. Manufacture part # 5110. Shipped with mounting screws.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast Stainless steel. The manufactures part number is 40-8261505.

The Hadrian Partition Wrap Around Top Hinge is for use on 1-1/4" round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 601350.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 42′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 42′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Fiat Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Mills Toilet Partition Keeper Bumper is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Flush Metal Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Global Partitions Latch Knob Cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  This is one of 3 concealed latches that we know of that are held together by a screw instead of the retaining clip we find on most latches.  The manufacture part number is 40-8513380G. This was used up until October 2021.

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 36′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 36′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

The Partition Double Door Pull 5-1/2" Chrome Plated come as two handles for mounting back to back handles on an one inch thick door.   The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufacturer part number on this part is 610112. Overall width is 6-3/4".

DryBaby stainless steel baby changing station is a horizontal unit that has a stainless steel exterior finish. Designed with pneumatic gas shocks to provide smooth operation, able to be pulled down as well as fasten safety belt with one hand. Features bag hooks at front corners and dual bed liner dispensers. Comes with easy step by step installation instructions and is ADA complaint when installed in accordance to instructions provided. Easy to maintain as High-density polyethylene inhibits bacterial growth and odor resistant. Known as World Dryers part number ABC-300HS.

• Stainless Steel Exterior, with High-Density Polyethylene Interior
• Horizontal Surface Mount Design
• Unit Size: 21.5”x37.5”x4”
• ADA and ANSI Compliant when mounted according to instructions
• Design for children up to 3.5 years or age and weighing up to 50 lbs, Meets ASTM F2285
• Smooth Opening and Closing Motion with Pneumatic gas shock mechanism
• CPSIA Compliant to applicable sections
• Resistance to Fungi(ASTM G21) and Bacteria(ASTM G22)
• Features built in liner dispenser, Liners(ABC-300L)
• Replacement Strap (93-10075)
• Recessed Stainless Steel Unit(ABC-300HSR) Available
• 5 yr Limited Warranty

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

The Global Partition ADA Door Kit is the manufacturer's conversion kit from regular door to ADA door.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes ADA handle, door stop and bumper, handles, and hinge pin.  The manufactures part number is 40-8513512.   If you want the complete kit, order 9G4000, which is a complete hardware package. This was used up until October 2021.

The Partition Surface Mounted SS Hinge Set are for use on  Left Hand Inswing and Right Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin in them.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand inswing door, or right hand outswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7103.  Shipped with mounting screws.

The Hadrian Partition Upper Door Casting SS is the component that fits into the top of the metal door to act as one of the hinge points.   They are constructed of cast stainless steel.  The manufactures part number is 640003-700.

Toilet Partition Continuous "U" Wall Bracket For 1" Thick Panel Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 54" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2799.

Screws included with bracket.

The Accurate Partition Stainless ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of cast stainless steel. The manufactures part number is 50-8261515.

The Sanymetal Toilet Partitions Ada Latch Knob Cover & Pin is an ADA Compliant latching mechanism.  The pin measures 3-1/8" overall length.   They are constructed of Zamac die cast metal that is then chrome plated and polished.  Manufactures part # 6860 and 8860.

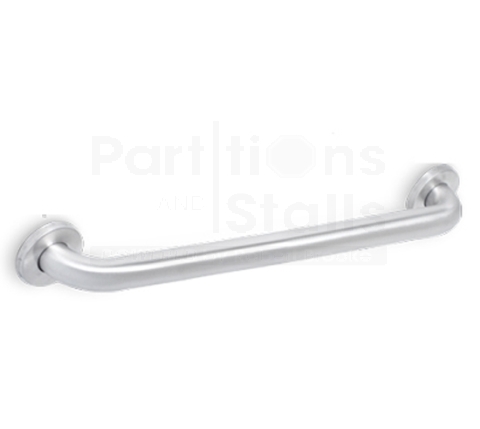

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 50-8511505.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

The Hadrian Toilet Partition Top Hinge is considered a surface mounted hinge, as it mounts on the edge of the pilaster post.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9HH450 Toggle and Screw are not included with this hinge.   The manufactures part numbers are 601310 and 601300.

The Knickerbocker Partition Turn Latch Knob is the male portion of there concealed latches. The cover that goes with this latch is the 9K0255. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this piece is 1410. Works with General partitions.Used with powder coated steel toilet partitions.

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

The Hadrian Toilet Partition Top Hinge Pin is used to replace the old style hinge pin. If you have the old style you must also purchase the upper hinge. This hinge is used with the 9HH350, 9HH300, 9HH550, 9HH500 and also the Arch Hinges. The manufacturer's part number is 631400. This product uses a phillips head screwdriver, old style was a torx head. The dimensions are 3/8" diameter by 1-1/2" height.

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.
