The Knickerbocker Partition Turn Latch Knob is the male portion of there concealed latches. The cover that goes with this latch is the 9K0255. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this piece is 1410. Works with General partitions.Used with powder coated steel toilet partitions.

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for recess mounting , also know as part number 9013 with American Specialties.

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".

Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.

The baby changing tables are ADA compliant units and are welded stainless steel for long and reliable use in commercial buildings. Exposed surfaces are satin finish. Easy one handed operation is assisted by a pull handle and concealed spring. The changing surface is high-impact-resistant plastic for easy cleaning. Its two part adjustable safety strap and 400 lb load capacity assure child protection. This unit is used for surface mounting , also know as part number 9013-9 with American Specialties.

Roval Automatic Deck Mounted Soap Dispenser, 20333 Constructed of polished type 304 stainless steel on exposed surfaces with battery-operated, hands-free sensor. LEDs indicate function, battery condition and soap supply level on face front. Translucent tank holds 54 oz. (1600 ml) of liquid soap

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

The Global Partitions stainless steel Ada latch knob & cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of cast stainless steel metal that is then brushed and polished.  The 9G3370 meets ADA compliance codes. The manufacturer part number is 40-8263370. This was used up until October 2021.

Retractable White Cushion Shower Seat lh, Left hand seat with cushion covered in off-white Naugahyde. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Seat measures 33″ wide and projects 22-7⁄8″ from wall. Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly.

The Hadrian Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  This hinge is considered a surface mounted hinge because is mounts on the surface of the pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The 9HH450, Toggle and Screw are not included with the hinge, and would have to be ordered separately.  The manufacture part number on this piece is 601510 and 601500.

The Global Partition Stainless ADA Door Kit is the manufacturer's conversion kit from regular door to ADA door.  They are constructed of cast stainless steel. The kit includes ADA handle, door stop and bumper, handles, and hinge pin.  The manufactures part number is 40-8263512.   If you want the complete kit, order 9G500SS which is a complete hardware package. This was used up until October 2021.

The Global Partitions Ada Latch Knob Cover, with Screw, are a concealed latch that is held together by a screw.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9G0139AS meets ADA compliance codes.  This is one of 3 concealed latches that we know of that are held together by a screw instead of the retaining clip we find on most latches.  The manufacture part number is 40-8513370G. This was used up until October 2021.

Ordering online all global partitions in powder coated panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All hardware chrome plated included. Available in 16"- 76". Actual width is 1/2" less. (58" Height). Panels are 1" thick.

Global Partitions Color Chart

Retractable Ivory Phenolic Shower Seat lh, (Left Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” thick, one piece solid, white colored, black core phenolic. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ wide and projects 22-7⁄8″ from wall. When properly mounted seat will support up to 250 lbs.

Available in Recessed, Semi Recessed and Surface mount. Fabricated of 22 gauge stainless steel with satin finish. Wall Opening: 15 3/4” x 26” x 10” Power Source can be hard wired is (AC) or Battery Operated (A) Battery not supplied, 4-D Batteries. Automatic Mechanism. Unit automatically dispense one predetermined length at a time when hands are placed in the sensor zone. The owner can determine the length of sheets.

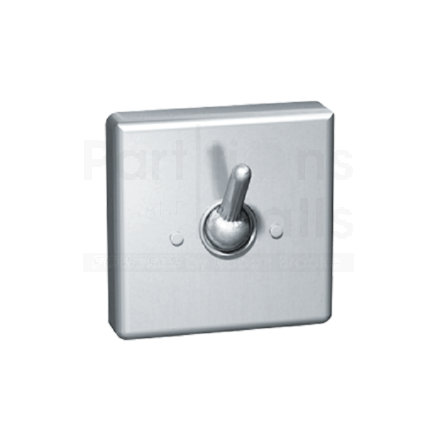

Square Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, 12 gauge and backplate 14 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 dimbled holes through flange bracket and comes with torx mounting screws.Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

4-1/4″ x 4-1/4″ x 2-1/4″ (108 x 108 x 57 mm)

*** CHASE MOUNT DISCOUNTINUED 2024-25 ***

Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8441007

Outswing door Kit: 40-8441008

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

The Accurate Partition ADA Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, ADA concealed latch and security screws.  This kit will convert your door to an ADA compliant door.  They are constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 50-8511515.

These hinges will not replace previous version of Accurates old style hinges that are no longer available.

Hadrian's new style 7/15/19 Partition Ada Latch Knob includes the turn latch wit set screw and cover. The latch is ADA compliant and meets barrier free codes.  They are constructed of die cast stainless steel that is then a brushed finish. This part is used on Hadrian Partitions and will replace the old style concealed turn latch.  The new manufacturer's part number is 901150, but also associates with old parts and replaces 601100-700, 601110-700, 601200-700. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, bracket is 11 gauge and hook 7 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 holes through flange bracket and comes with torx mounting screws. Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

3″ x 5″ x 3-1/16″ (76 x 127 x 78 mm)

The KB300 series surface mounted horizontal baby changing station is constructed of polypropylene and features a unibody steel chassis for superior strength. Available in three stunning colors with each providing a modern visual aesthetic. Thoughtful patron amenities enhance the end-user experience, and include Microban product protection, a redesigned liner dispenser and the Koala brand mark that communicates comfort to families and the promise of a thoughtful accommodation.

The dual liner cavity has an internal spring tab that pushes liners forward while only allowing single liner dispensing. Each cavity holds 25 liners and locking mechanism minimizes operator refills and discourages potential vandalism. The product includes child protection straps. Bed surface exclusively contains Microban® antimicrobial product protection that reduces odor-causing bacteria and keeps the bed surface cleaner between cleanings. Concealed pneumatic cylinder provides controlled, slow opening and closing of the changing station bed.

Napkin / Tampon Dispenser Recess

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish

Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
: Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.

Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

KB300-SS Horizontal Surface-Mounted With Stainless Steel Veneer. Surface mounted, horizontal plastic baby changing station with stainless steel veneer is constructed of polypropylene and features a unibody steel chassis for superior strength. Available in two stunning colors with each providing a modern visual aesthetic. Thoughtful patron amenities enhance the end-user experience, and include Microban product protection, a redesigned liner dispenser, a convenient external solid stainless steel rod bag hook with satin finish and the Koala brand mark that communicates comfort to families and the promise of a thoughtful accommodation.

The dual liner cavity has an internal spring tab that pushes liners forward while only allowing single liner dispensing. Each cavity holds 25 liners and locking mechanism minimizes operator refills and discourages potential vandalism. The product includes child protection straps. The external stainless steel bag hook is for safely storing a diaper bag off the floor and keeping the diaper bag in close proximity to the caregiver for ease of use. Bed surface exclusively contains Microban® antimicrobial product protection that reduces odor-causing bacteria and keeps the bed surface cleaner between cleanings. Concealed pneumatic cylinder provides controlled, slow opening and closing of the changing station bed.

Napkin / Tampon Dispenser Surface Mount

Fabricated of Type 304 #18 Gauge Stainless Steel With #4 Satin Finish
Holds 30 Sanitary Napkin and 27 Tampon Packages
Multiple Coinage Options Available

Door
Fabricated of type 304 #18 ga stainless steel with #4 satin finish. Door has 1/2" returns for rigidity.
Body: Fabricated of type 304 #22 ga stainless steel with a #4 satin finish. Adj. Slip Flange: Fabricated of type 304 #22 ga stainless steel, one piece construction with no miters or welds and #4 satin finish. Flange will adjust from a 1" minimum to a 6" maximum wall depth.

Coin Mechanisms: Two independent, trouble free turn knob mechanisms, with an "EMPTY" indicator that does not allow coins to be inserted into mechanism when product has been depleted. Operational with one hand with less than 5 lbs (22.2n) of force without tight grasping. Can be operated with palm, elbow or forearm if user has a physical impairment. (Free,.25,.50)

Global Partition selling online all plastic laminate panel dividers. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes 4 standard chrome brackets. Available for the following widths 16-76" and are 1" thick. Actual width is 1/2" less.

Global Plastic Laminate color chart

The Electronic Touchless Bulk/Cartridge Soap Dispenser in white, consistently dispenses one (1-1.5ml) drop at a time. The unit operates on 3 "C" batteries for up to 80,000 cycles. The refillable reservoir may be used with quality bulk liquid soaps. The mechanism is a separate piece to prevent damage from the soap.

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Global partitions plastic laminate pilasters are for commercial use. All toilet partitions ship in 48 hours, 2-4 days travel. The pilasters Include floor mounting hardware and stainless steel shoes and are 1" thick.  Available for the following widths are available in 3- 24". The pilasters are for overhead braced units that use an aluminum headrail to brace the top of the pilasters. A plastic laminate pilasters are 1" thick and 85" high. If yours are less you can cut the top off and the headrail will cover the top.

Global Plastic Laminate color chart

The Metpar Toilet Partitions Pintle For Laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

The Ampco Toilet Partition Pintle Laminate is for laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

The Bobrick Toilet Partition Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

The Ampco Toilet Partition Top Hinge Pin For Laminate is constructed fo knurled steel.  This pin is used on there plastic laminate restroom stalls.   Hinge pin is 3-1/4" long by 1/4" diameter. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99585.

The Metpar Toilet Partitions Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.
