The Toilet Partition Bottom Hinge For 1-1/4" Round Edge  is constructed of chrome plated Zamac die cast metal.  This hinge is used on round edged pilaster posts of 1-1/4" thickness.  The hinge measures 1-1/4" deep by 2-1/8" high by 1-7/16" wide. The U part of the hinge measures 2-1/8" high by 1-1/4" deep with a slot depth of 11/16". The hole spacing is 1-1/2". The lug projects out 1-3/32" and is 1/2" thick with a 5/16" diameter hole. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 4040. Used on Ampco and Metpar Metal Partitions.  Shipped with mounting screws.  A=1-7/16"

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Hadrian Partition Wrap Around Top Hinge is constructed of cast stainless steel, making it a very strong hinge.  The manufactures part number is 601451.

The Hadrian Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  This hinge is considered a surface mounted hinge because is mounts on the surface of the pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The 9HH450, Toggle and Screw are not included with the hinge, and would have to be ordered separately.  The manufacture part number on this piece is 601510 and 601500.

Comtec Stealth Brackets for Integral Hinges 4 brackets included. These brackets help support the plastic pins used with the integral hinge pin system. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The American Sanitary Bottom hinge Insert For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Hadrian Toilet Partition Top Hinge is considered a surface mounted hinge, as it mounts on the edge of the pilaster post.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The 9HH450 Toggle and Screw are not included with this hinge.   The manufactures part numbers are 601310 and 601300.

The Matte Black Hadrian Corner Headrail Kit is designed for mounting Hadrian Matte Black Headrails. Constructed of stainless steel with matte black finish. Sping clip and end cap are made of plastic. This kits includes (2) Wall Brackets, (1) Spring Clip, (1) L Bracket, (1) Headrail Endcap and fasterners. Would be used for partitions that need headrail across front of partitions as well as down one side. Spring clips would be used if you are needing to join two headrails together. L bracket is used to attach Headrail on the side of partitions to back wall. Known as manufacturers part number 675411-BLK.

The Toilet Partition Bottom Hinge for 1-1/4" Sq Edge Cast Stainless Steel is a replacement for the Zamac Die Cast hinges for General, American Sanitary, Flush Metal and Fiat Partitions.  It features cast stainless steel construction, which is much more durable.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a General Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3293.  Shipped with mounting screws.  A=1-5/8"

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

Accurate Commercial Partition Alcove Handicap Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Accurate Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

The All American Toilet Partition Bottom Hinge is used on metal doors and is for use on round edged pilaster posts.  The manufactures part number is 103.  A=1-5/8".

Bobrick fixed position tilt mirrors known as B-293 series. These mirrors are ADA approved and are required for commercial restrooms that provide handicap accessibility. The frame is type 304 stainless steel with beveled edges of the frame hug the mirror. This provides a gapless fit for improved appearance and safety when cleaning. The product is a plate glass. The mirror extends 4" from the wall at the top and tapers down to 1" at the bottom.

The Sanymetal Toilet Partition Plastic Top Hinge Pin is 2-1/2" long by 3/8" diameter.  The manufacture part number is 98715.

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, bracket is 11 gauge and hook 7 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 holes through flange bracket and comes with torx mounting screws. Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

3″ x 5″ x 3-1/16″ (76 x 127 x 78 mm)

Scranton Partitions 8" Wrap Around Hinge Insert Replacements. This kit includes the Top and Bottom insert replacements. Design works with other manufactures 8" Wrap Hinges. Known as HHINSERTST by Scranton Products/Comtec/Hiny Hider.

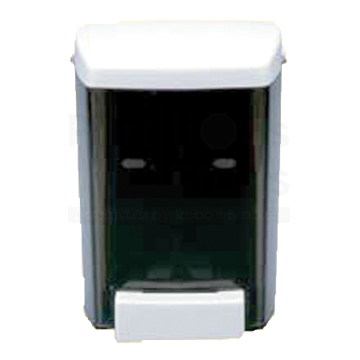

Plastic Liquid/Lotion Soap Dispenser .30 oz, Dark Translucent with Large push bar meets ADA Requirements. Manufacturers part number SD0927-02.

The Hadrian Partition Wrap Around Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacture part number is 601550.

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

The Accurate Partition Bottom Hinge Flat Mount Chrome is used when mounting a door on a flat wall surface.  The hinge is constructed of die cast Zamac metal, that is then chrome plated and polished.  The diameter of the larger hole is 3/8".  We sometimes find the number 3210 on the back of the hinge.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.

Accurate and Global partitions door hinge kits for plastic laminate partitions. The top and bottom hinge kits are the exact same. The door kit includes the hinge, hinge pin, door insert, plastic cam set and all the security screws to install. This part is also known as 63160. The hinge mounts to a pilaster with 1-1/4" thickness, the doors are 1" thick.

Accurate Partition Bottom Hinge Flat Mount Stainless Steel is used for a flat wall surface mount.  The hinge is constructed for cast stainless steel and brushed to the desired finish.  The hinge hole is 3/8" diameter, and the manufactures part # 3213.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Toilet Partition Top & Bottom Hinge Assembly For 1" Door, 1-1/4" Pilaster Square Edge. Polished chrome plated zamac die cast construction. Kit includes Bottom & Top Hinges, Pintle, Nylon Cam, Top Pin and Bottom & Top Hinge Door Inserts. Hinges measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Manufacture part number 63130 kit. The top hinge wall to center of the 3/8" diameter hole is 1-1/4" which is known as a 3790 hinge. The bottom hinge wall is also 1-1/4" to the center of the 5/16" hole and known as 3290 hinge. The Top Pin is 3/8" x 3-1/2". Screws are also included.

The Hadrian Partition Wrap Around Bottom Hinge Cast Stainless Steel is for use on 1-1/4" thick round edged pilaster posts.  The manufactures part number is 601452.

The Hadrian Toilet Partition Top Hinge Pin is used to replace the old style hinge pin. If you have the old style you must also purchase the upper hinge. This hinge is used with the 9HH350, 9HH300, 9HH550, 9HH500 and also the Arch Hinges. The manufacturer's part number is 631400. This product uses a phillips head screwdriver, old style was a torx head. The dimensions are 3/8" diameter by 1-1/2" height.

The Toilet Partition Top Hinge Door Escutcheon For 7/8" Thick Doors has chrome plated Zamac die cast construction. The outside dimensions of the escutcheon are 1" deep by 1-5/8" high by 2-3/8" wide with two of the three holes with a diameter of 5/16" and one at 7/32". The inside dimensions of the U are 1" high by 2-1/16" wide. Also known as a Bathroom Stall Door Insert - Top 7/8". Manufacture part # 2740. Used on Metpar and AMPCO Toilet Partitions.

The Toilet Partition Top & Bottom Hinge Kit  is for use on 1" Doors with 1" Square Edged Pilaster Posts.  The top and bottom hinges are constructed of Zamac die cast metal that is then chrome plated and polished.  The kit includes top and bottom hinge, inserts, pintle, cam, top pin and all of the mounting screws.  This hinge set is designed for a maximum rotation of 110 degrees, past 110 degrees the hinge may fail.   Manufacture part # 63150.

The All American Toilet Partition Top Hinge is used on round edged pilaster posts.  It is constructed of die cast metal that is then chrome plated and polished.  The manufactures part number is 102.  A-1-5/8".

The Accurate Partition Top and Bottom Hinge kit is for 1-1/4" round edge pilasters or posts.  These are used on Accurate Partition Corp's, metal doors sold before January 2013.  The kit includes the top and bottom hinges, pins and security screws.  Hinges are constructed of die cast metal that is then chrome plated and polished.  The manufactures part numbers are 50-8517300, 50-2517200 and 50-398660.   A=1-1/2". There is no exact hinge replacement available.

**Not Available anymore, see link for new doors

https://www.partitionsandstalls.com/accurate-partition-steel-doors.html

https://www.partitionsandstalls.com/partition-hardware/hinges/surface-mounted-hinge-sets.html

https://www.partitionsandstalls.com/partition-hardware/hinges/continuous-piano-hinges.html

Square Security Clothes Hook designed to snap down if excessive load is placed on hook. Fabricated from type 304 stainless steel, 12 gauge and backplate 14 gauge with satin finish. Product is offered in 2 mounting types: Front or Chase(Rear). Front mount has 4 dimbled holes through flange bracket and comes with torx mounting screws.Chase mount will come with rods welded to back and nuts for mounting. There are 3 options for the chase mount which you will have to select and each will come with specific sized rods to affix hook through wall. Options are to accommodate the wall thickness they will be mounted though. Designed in mind for Behavioral Health and Detention Centers.

Chase Options

• Less than 6" Wall
• Between 6"-8" Wall
• More than 8" Wall, Custom size

Dimensions

4-1/4″ x 4-1/4″ x 2-1/4″ (108 x 108 x 57 mm)

*** CHASE MOUNT DISCOUNTINUED 2024-25 ***
