The Bobrick Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

The American Sanitary Toilet Partition Top Hinge Pin Laminate is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

Roval Automatic Soap Dispenser, 20364 Hands-free, battery-operated soap dispenser. Dispensing cycles adjustable with tamper proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view soap level. LED indicates adjustment and operation. Bulk fill with a 34 oz capacity. Overall Size 5 1/2" W x 10 7/8" H x 4" D projection

The Hadrian Partition Wrap Around Top Hinge is for use on 1-1/4" round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 601350.

ASI EZ Shoe is designed to anchor directely to the floor. Made for Global Partitions and Accurate Partitions restroom stall. This allows for the pilaster to sit inside the shoe. Constructed of #304 Stainless Steel and 3" height. The ASI EZ Shoe comes in round or square edge design. Round Edge shoes are configured for Solid Plastic (1" Thick), Powder Coated Steel and Stainless Steel (1-1/4" Thick) partition pilasters. Square Edge is designed for Plastic Laminate (1" Thick) and Phenolic (3/4" Thick) partition pilasters. ASI EZ Shoes come with all hardware for anchoring shoe to floor and screws for attaching pilaster shoe to pilaster. Pilaster shoes are the base support for partitions.

Bobrick SCRC solid phenolic partition between walls layout with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall are 60" x 60" depth (36" door). All standard stainless steel hardware included with option of full stainless channels and piano hinges. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must add Ada to add 24" to a standard stall of 36" to create 60" width, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and add Ada 24". 1080 & 1090 series phenolic ship in 3-4 weeks plus travel time.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

The General Toilet Partition Nylon Cam For Steel For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

Bobrick Angle Frame Tilt Mirror, series B-294 18x30 two position tilt mirror. This mirror is Ada approved for commercial restrooms. The outside channel is 3/4"x3/4" and is type 304 stainless steel frame. This mirror has a 7" from top wall and the bottom is mounted to wall. Standard 1/4" plate glass is used.

The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The Flush Metal Partition Latch Knob & Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The All American Toilet Partition Top Hinge is used on plastic laminate restroom stalls.  The hinges mounts on an 1-1/4" square edged pilaster post.  The part is constructed of die cast metal that is then chrome plated and polished.  The manufacture part number is 102PL.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior diameter is 5" with 4-1/2" depth to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7-1/8" (181mm) Square and features front mounting holes. Designed in mind for Behavioral Health and Detention Centers. Mounting hardware included.

Overall Dimensions:

7-1/8″ x 7-1/8″ x 4″ (181 x 181 x 102 mm)

Wall Opening:

5-5/16″ dia. x 5″ min. depth (135 x 127 mm)

B-2621 Surface mounted paper towel dispenser on sale today. Satin finish stainless steel. Paper dispenser holds 200 c fold or 275 multifold towels. The door has knob-latch. Hemmed towel tray opening. The unit is 10-3/4" x 7-1/8"ht x 4" depth.

Bobrick fixed position tilt mirrors known as B-293 series. These mirrors are ADA approved and are required for commercial restrooms that provide handicap accessibility. The frame is type 304 stainless steel with beveled edges of the frame hug the mirror. This provides a gapless fit for improved appearance and safety when cleaning. The product is a plate glass. The mirror extends 4" from the wall at the top and tapers down to 1" at the bottom.

The All American Toilet Partition Bottom Hinge is for plastic laminate restroom stalls.  The hinge is constructed of a die cast metal that is then chrome plated and polished.  The part is for mounting on a  square edged 1-1/4" thick pilaster post.  The manufacture part number is 103PL.

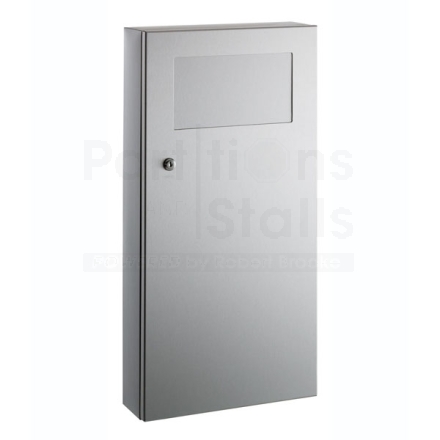

Bobrick B-35639 surface mounted waste receptacle with disposal door in a satin finish stainless steel all welded construction. The door is secured to cabinet with a concealed full length stainless piano hinge. Equipped with a cable door swing limit and tumbler lock. Waste bin constructed of heavy gauge stainless steel. The unit is a 3 gallon capacity and is 14-13/16"w x 28-3/16"h x 4-1/2" depth.

The American Sanitary Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Sanymetal Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Roval Automatic Foam Soap or Foam Hand Sanitizer Dispenser, 20365 A foam drop is dispensed out of the nozzle on unit bottom each time its battery-operated sensor is activated. Capacity: 34 oz. (1000 ml) of liquid foaming soaps within a wide range of viscosity. Overall Size 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection. Soap Requirements: Proper usage of this dispenser requires, that only soap/lotion/foaming hand sanitizer within the following range for viscosity and pH may be used.

Current style Global stainless steel door catch includes screws for mounting. This is used with the 9g700 latch in ss. Product part number is 8262360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

Current style Global chrome plated door catch includes screws for mounting. This is used with the 9g600 latch in ss. Product part number is 40-8212360. This part has a 3/8" gap for the catch and is 2-1/8" in length, 1-5/8" hole spacing and is 3/4" wide.

ASI Matte Black round 10" roll toilet tissue dispenser is surfaced mounted. This unit accepts one roll up to 10" (254mm) in diameter of 1-5/8" or 2-1/4"(41mm or 57mm) core diameter. Features a viewing slot and tumbler lock on front. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

10-5/8” x 10-5/8” x 4-1/2” (270 x 270 x 114 mm)

Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

B-4288 surface mounted multi roll tissue dispenser. The unit is a satin finish stainless steel. Flush tumbler lock and holds up to 2 rolls 5-1/4" in diameter. The extra roll automatically drops in place when bottom roll is out. The unit is 6-1/16"w x 11"h x 5-15/16" depth.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

The Surface Mount Door Hinge Set RH In/ LH Out is for use on Right Hand In Swing and Left Hand Out Swinging doors.  They are self closing.  The hinges are constructed on stamped stainless steel that is then polished.  The package includes the top and bottom hinges and the mounting screws.  Hole spacing right to left 2-1/4", up and down 1-1/2",  overall 3" width by 2-1/2"height.  Also known as a toilet partition or bathroom stall gravity surface hinge set.  Manufacture part number is 7073.

Toilet Partition Stainless Steel Continuous Angle Bracket, 71, 18 Gauge.

Stainless Steel Construction 18 gauge. Angle bracket is 1" wide by 2-1/4" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Angle or L Bracket. Angle bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182689

The Hadrian Partition Keeper Bumper Cast SS is for use on 1-1/4" thick round edged pilaster posts.  The rectangular slot measures 9/16" by 11/16" and is meant to be the receiver for a concealed latch.  They are constructed of cast stainless steel and then brushed to the proper finish.  The manufactures part number is 601800-700.

Cast S.S. Slide Bolt Latch 5/8" Bar To Door, 3-1/2" Between Screws. Cast stainless steel construction. Base is 4-1/2" tall with a hole spacing of 3-1/2" on center. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick and has a throw of 15/16". The latch projects out 1-9/16". The distance from the back of the base to the underside of the latch bolt is 9/16". Also known as a Bathroom Stall Slide Latch and Toilet Partition Locks. Manufacture part #5053. Shipped with screws. Used by accurate and global.

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

The Matte Black Hadrian Alcove Channel is constructed of anodized aluminum. One side of the channel is for 1/2" thickness and the other is 3/4" thickness. This alcove channel is used to connect a panel and pilaster in-line with different thicknesses. The alcove channel is 57-1/2" in length and comes with fasteners to install. Known as manufacturers part number H60158-BLK.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.
