The Hadrian Partition Lower Door Casting Unplated is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of Zamac die cast metal.  The manufacture part number is 640004.

The Hadrian Partition Lower Door Casting SS is the component that fits into the bottom of a metal door.   This piece acts as one of the pivot points in the hinge.   They are constructed of cast stainless steel.  The manufacture part number is 640004-700.

Hadrian Door Kit for Ada Concealed Hinges. Standard hinges that butt up to the edge of the pilaster. Chrome plated parts include concealed hinges with toggle & screw, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pull handles, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601010, replaces 601000.

The Hadrian Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  This hinge is considered a surface mounted hinge because is mounts on the surface of the pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The 9HH450, Toggle and Screw are not included with the hinge, and would have to be ordered separately.  The manufacture part number on this piece is 601510 and 601500.

Nova 1 Plug-In provides a 3 prong 6’ cord to give consumers some flexibility on placement of unit. Designed for 110-120v ground outlets with 3 prongs and with the unit measuring 9”x9.7”x4.2”, it makes this a compact and easy unit to install. Known as World Dryers part number WHD-883.

• Economic/Entry Level Dryer
• Automatic Operation Infrared Sensor
• Surface Mounted
• Low Sound Level
• Compact Design
• Durable Die Cast Aluminum with White Epoxy Enamel Finish
• 110-120v
• Provided with 6’ cord.
• 2 yr Limited Warranty

Chrome Plated Partition Keeper Bumper Flat Stop Outswing Door

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 1-3/4" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5640.

Shipped with mounting screws.

Global partitions commercial solid phenolic overhead braced urinal privacy are a solid color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Overhead braced urinal screen's are available for the following widths 16" - 52". Actual width is 1/2" less and panels are 58" ht. All standard stainless steel brackets, headrail, 6x80 pilaster and panel are included per order.
Global Solid Phenolic Color Chart

Global partitions solid plastic pilasters manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Pilasters Include floor mount hardware and stainless steel shoes. Available for the following widths 3-24" and are 1" thick by 80"ht

Global Solid Plastic Color Chart

Global partitions stainless steel floor mounted urinal privacy screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All chrome plated hardware included. Stainless Steel Floor Anchored 70" high pilaster and 58" high panel. Available width for urinal screens 16"-76" x 58" ht.

Global Stainless Steel Color Chart

Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

Stainless Steel Angle Bracket 1-5/8"x1-5/8" are for bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2019. Security screws included.

The Flush Metal Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

Plexiglass Barrier Shields designed to create separation/social distance between individuals. Plexiglass sheets are being utilized as table top dividers and counter top barriers in schools, hospitals, restaurants and businesses to help protect individuals. These panels are ¼” thick Clear Plexiglass. Can be used in a variety of different way to create barriers. Panels DO NOT come with hardware but is available separately. Lead time is typically shipped out within 1 week but may vary depending on quantities and sizes being ordered. Panels 36” or smaller will ship ground, while panels larger than 36” will potentially ship freight. Feel Free to contact us with any questions you may have.

Available Sizes

• 24"Hx24"W **Ships Ground
• 24"Hx30"W **Ships Ground
• 24"Hx36"W **Ships Ground
• 24"Hx42"W **Ships LTL Freight
• 24"Hx48"W **Ships LTL Freight
• 24"Hx60"W **Ships LTL Freight

Accurate Toilet Partition Panels are easy to reinstall when replacing. All panel dividers come with standard chrome panel kits, with upgrades to stainless steel hardware. Accurate offers 16"-76" wide panels. All panels are 1/2" less than the width size. Panles are 58" height which are mounted 12" off the ground.

color chart

Instructions

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 7/8"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 7/8" wide partitions and is 2-1/2" height by 2-9/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 204039

The All American Toilet Partition ADA Latch Knob & Cover is used on All American Metal Corp 1" thick metal doors.  This will replace our 9AA104C to make your door ADA Compliant.   The manufacturer's part number is 104 HC ADA.

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

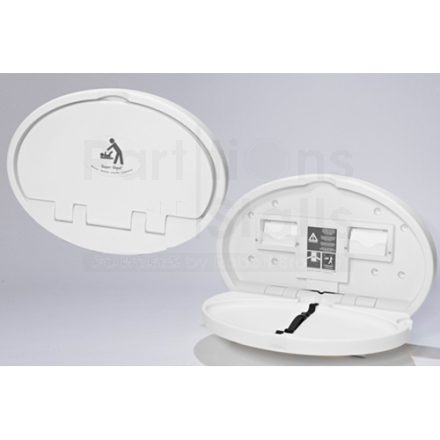

Diaper Depot Changing Station - White

• Attractive, Durable, safe, affordable
• Combines durability with long lasting looks
• Universal Safety instructions
• 4" depth closed, 20" depth open, 34" wide
• Fully hidden gas shock
• Shelf for personal changing items
• Safe strap safety belt
• Molded in hook for purse or diaper bag
• Concave bed
• Includes industrial grade hardware kit for easy installation
• 5 year warranty

The Hadrian Partition Upper Door Casting Unplated is the component that fits into the top of the metal door to act as one of the hinge points.   They are constructed of Zamac die cast metal.  The manufactures part number is 640003.

Global partition stainless steel panel dividers are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. stainless steel panels Include 4 standard chrome plated brackets. Available for the following widths 16"-76" Actual width is 1/2" less.

Global Stainless Steel Color Chart

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Cast stainless steel parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, top pin, coat hook with bumper and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 901010, replaces the 901000.

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

The Toilet Partition ADA Slide Bolt Latch & Keeper Stainless Steel is constructed of black acetate plastic and stainless steel.  This latch meets ADA Compliance Codes.   Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.  Shipped with mounting screws. For 1" thick doors.

The Stainless Stel Indicator Latch and Keeper are designed to work with for 1" doors and 1-1/4" pilasters thickness. Constructed of stainless steel with a brushed finish. Comes fasteners for installation. Known as manufacturers part numbers 905200,910128 and 910129.

The All American Toilet Partition Bottom Door Insert is for use on there plastic laminate restroom stalls.  The insert has a polished chrome finish.

Toilet partition Alcove Channel for Powder Coated Steel or Stainless Steel partitions. Constructed of extruded aluminum with #4 brushed finish(similar to stainless steel). Typically used with new construction but can be used on existing partitions. Designed to join a Pilaster and Panel in-line to eliminate sightline gaps to provide additional privacy. The indented rounded curve is where the Pilaster(1-1/4" Thickness) will attach, while the open end of channel is where the panel(1" Thickness) with attach. Comes with screws for attaching to pilaster and panel. Alcove channel is not pre-drilled so you will have the flexibility to place screws where needed. Provides the ability to space the panel inside the alcove channel as close as 1/4" to about 3/4". The Alcove Channels are for Hadrian's Standard(58" Ht Panels), Elite(64" Ht Panels) and Elite Plus(72" Ht Panels) Series of restroom partitions. Could be used on different manufacturers partitions as well. Manufactuered by Hadrian Partitions, known as 560157-990, 560170-900 and 560172-900.

Roval Recessed Hand Dryer, 20199

This high performing hand dryer, with a drying time of less than 15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty.

FEATURES:

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat

Ordering online all global partitions in powder coated panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All hardware chrome plated included. Available in 16"- 76". Actual width is 1/2" less. (58" Height). Panels are 1" thick.

Global Partitions Color Chart

Partition Keeper Bumper Inswing 3/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 4903.

Shipped with mounting screws.

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 60" ht.
• Also known as 121974.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

The Accurate Partition Top Hinge Flat Mount Chrome is used when mounting a door on a flat wall surface.  This hinge would be used on the top of the door.  The hinge is constructed of die cast Zamac metal, that is then chrome plated and polished.  The diameter of the larger hole is 1/2".  We sometimes find the number 3710 on the back of the hinge.  The white plastic insert is included.  A=1-1/2". Used with Accurate Partition doors prior to January 2013.

Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.

The Ampco Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch.  Manufacture part # 5020.  Shipped with mounting screws.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

Bobrick outswing keeper for door latch. Also known as 1040-36, 7729. Used with slide latch. Hole spacing is 1-1/2".

The Metpar Toilet Partitions Bottom Cam Housing Unplated is constructed of Zamac die cast metal.  The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4066.
