Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

Partition Two Ear Bracket Cast SS 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Metpar Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859

VERDEdri hand dryer’s are HEPA-Filtered and uses high performance motors last about 3 times longer than competing model. Manufactured to provide 30% quieter sound levels and is optimized to use only 3.16 watt-hr per use(277 VAC use 3.83 watts-hrs per use). Roughly costing the user 32 cents for every 1,000 cycles. Covers for the White, Black and Graphite finish are made from Cast Aluminum and Polished and Brushed are made from Stainless Steel. Known as World Dryers part numbers Q-162A2, Q-962A2, Q-972A2, Q-973A2 and Q-974A2.

• Finish: Black, Graphite Textured, White, Brushed Stainless Steel, Polished Stainless Steel
• Universal Voltage: Uses smart technology to adapt to almost any facilities voltage. Voltage extends from 110-277v(Min. 15 Amp Recommended).
• ADA Complaint, designed to protrudes less than 4” away from wall ensuring walkway and pathway clearance.
• HEPA Filter, Captures 99.97% of particles, 0.3 or larger
• Touchless operation offers a More Hygienic Experience
• Utilizes Anti-microbial technology on treated surfaces to protect from bacteria, mold and fungus growth that can cause staining, odors and product deterioration.
• Features sounds control between three mode settings, to accommodate sensitive spaces.
• Automatic Infrared Sensor, can dry hands in as little as 12 Second Dry Time, 45 second vandal shut-off/lock out feature.
• Unit Size: 14.5”x12.25”x3.9”
• Sound Level: 69 DBA
• Durable and Vandal Resistant
• Replacement HEPA Filter Available (93-10292K)
• Optional: Top Entry Adaptor Kit (17-10504K)
• 10 yr Limited Warranty, 7 yr Motor and Sensor

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

The Knickerbocker Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished. The Cover has an outer diameter of 1-3/4" with a 1-11/32" inner ring diameter. The Knob has an outer diameter of 1-5/8" and and inner diameter of 1-11/32". ADA Lever is 3-3/4" long. Also known as a Bathroom Stall ADA Concealed Latch. Manufacturer part # 6170. Works with General partitions. Used with powder coated steel toilet partitions.

Toilet Partition Continuous One Ear Wall Bracket For 1-1/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-11/16" x 57" long. Mounting holes are 1-19/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2359.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Global partitions ordering online all solid phenolic panels are solid phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths 16"-76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Urinal Screen Bracket Chrome Plated

This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.

The General Toilet Partitions Ada Latch Knob Cover Straight Pin is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The ADA Barrier Free Lever is 3-3/4" long. The straight pin has a diameter of 11/32" and 2-11/16". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 8080. Typically used with plastic laminate material.

Wall Guard’s white acrylic units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10455K.

• Unit Size: 31.5”x15.5”x.06”
• White(Antimicrobial Acrylic-PVC Composite)
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

Partition One Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/8" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 7/8". Manufacture part # 1653.

Shipped with mounting screws.

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

Metpar concealed Ada lever latch knob with cover. Zamac die cast construction with polished chrome plating. Outside diameter of the knob and cover are 1-3/4" with the inner ring diameter of 1-7/32". The latch bolt is 11/32" diameter by 2-21/32" long, the square box has a height of 3/4". Also known as a bathroom stall concealed ADA lever latch cover and knob assembly or a barrier free concealed latch knob, Cover and pin. Manufacture part # 6080.

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

The Global Toilet Partitions Ada Latch Knob Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380.

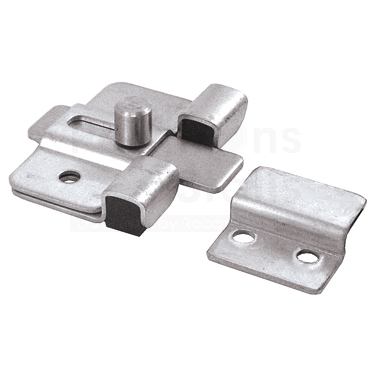

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.
