Global partitions solid phenolic wall hung or mounted urinal privacy screens are available in a color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Urinal screens are 1/2" thick by 48" high panel. Available in the following widths 12, 18, 24". Specify color and width.Cast stainless steel bracket included.
Global Solid Phenolic Color Chart

The Bobrick Partition Keeper Bumper Outswing is designed for use on a 1" thick square edged pilaster post.  The keeper is constructed of die cast metal and then chrome plated.  Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5720.  Shipped with mounting screws.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

Global partitions solid plastic panel dividers are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16- 76". Panel's actual width is 1/2" less.

Global Solid Plastic Color Chart

The Fiat Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.  Shipped with mounting screws.

The Flush Metal Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The Bobrick Partition Keeper Bumper Inswing is constructed of chrome plated Zamac die cast metal.  The keeper is designed for 1" thick squared edged pilaster posts.  Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. The slot is 5/16" deep by 1-1/2" high. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing 1". Manufacture part # 5620.  Shipped with mounting screws.

The Hadrian Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The Partition Chrome Plated ADA Throw Latch 3-1/2" Screws has chrome plated brass construction.  Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The center to center distance between the mounting screws is 3-1/2".  The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partition Throw Latch. Manufacture part # 5151.  Shipped with mounting screws.

The Flush Metal Partition Slide Bolt Latch is constructed of Zamac die cast metal that is chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch. Manufacture part # 5020.  Shipped with mounting screws.

The All American Toilet Partition Bottom Hinge is used on metal doors and is for use on round edged pilaster posts.  The manufactures part number is 103.  A=1-5/8".

Global partitions solid plastic HDPE for overhead braced privacy dividers manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard aluminum brackets included. The kit includes 6"x82" pilaster, panel, headrail and all the hardware to assembly. This works great for a privacy near the main restroom door.

Global Solid Plastic Color Chart

The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.  Ships with mounting screws.  A=1-11/16"

Global partition plastic laminate overhead braced urinal privacy dividers. All toilet partitions ship in 1 week, 2-4 days travel. 6" x 82" ht pilaster and panel included and aluminum headrail and all standard hardware included. 16-76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

Bobrick B-212 clothes hook with bumper for toilet partition doors. This unit is solid aluminum casting with a matte finish. The hok projects out 3-3/4" x 1-1/2"w x 2"ht.

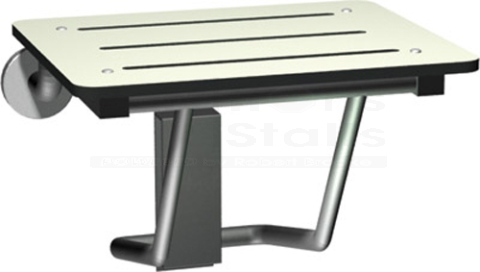

Retractable Ivory Phenolic Shower Seat, 5/16″ thick, one-piece, solid, white colored, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a selflocking mechanism. Seat measures 18″ wide and projects 16" from wall. When properly mounted seat will support up to 250 lbs.

Retractable White Cushion Shower Seat, 5/16″ thick, one-piece, solid, padded, black core phenolic seat. Frame, support legs, flanges and bracket are type 304 satin finish stainless steel. Features a self-locking mechanism.

Seat is sponge cushion covered with off-white Naugahyde® mounted on 1⁄2″ (13 mm) thick marine grade plywood.

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

The Flush Metal Partition Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac dia cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

Retractable Ivory Phenolic Shower Seat lh, (Left Hand) Meets ADA Accessibility Guidelines and the needs of the physically disabled and elderly. Seat is ½” thick, one piece solid, white colored, black core phenolic. Frame, support legs, flanges, and bracket are type 304 satin finish stainless steel. Phenolic seat ONLY is field reversible. Seat measures 33″ wide and projects 22-7⁄8″ from wall. When properly mounted seat will support up to 250 lbs.

The American Sanitary Toilet Partition Top Hinge Insert is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge insert outside dimensions are 2-3/16" wide by 1-5/32" deep by 1-13/16" high. The two holes have a diameter of 13/32". Also known as a Bathroom Stall Door Insert Top 1". Manufacture part # 2400.

The American Sanitary Toilet Partition Nylon Cam is constructed of natural nylon plastic. The nylon cam head diameter is 7/8" with an inside diameter of 11/16". The cylinder diameter is 3/4" and has an overall length of 1-11/32". For use with a 5/8" diameter pintle. Also known as a Bathroom Stall Door Hinge Cam. Manufacture part # 98245.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

The Mills Toilet Partitions Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. They are constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.  Shipped with mounting screws.

The Matte Black Indicator Latch and Keeper are designed to work with doors and pilasters that are 3/4" thickness. Constructed of zamac metal with a matte black finish. Comes fasteners for installation. Known as manufacturers part numbers 671600-BLK and 671601-BLK.

The Sanymetal Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

The General Toilet Partitions Keeper Bumper For 1-1/4" Outswing Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

Hadrian Smooth Stainless Steel Panels are available with panel kits that include the brackets for the back wall and the pialster. All smooth surface stainless steel panels ship out in 48 hours and usually take 2-4 days travel. We offer a wide range of sizes, All partition panels are 1/4" less than the size and are 58" height. Partition panels are mounted 12" off the floor.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

The Fiat Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Mills Toilet Partition Keeper Bumper is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The Flush Metal Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Roval Recessed Paper Towel Dispenser, 20452 Dispenses 600 C-fold or 800 multi-fold paper towels. Door fabricated of 18 gauge type 304 drawn one piece stainless steel with satin finish. Door secured with 3/16" staked piano hinge and flush tumbler lock. Wall Opening: 11 3/16" W x 26 1/4" H x 4" D

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included
