The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Toilet Partition U Bracket For 7/8" Thick Panel Cast Stainless Steel

Cast stainless steel construction. Bracket base is 1-3/8" x 1-5/32" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 7/8". Manufacture part number 1903

Shipped with mounting screws

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Metpar Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Toilet Partition One Ear Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base of the bracket is 2" x 1-1/2", with 1-1/2" hole spacing. Bracket legs project out 2-1/2" with the screws at 2-1/8" on center from the base. The four holes are 1/4" diameter. Also known as a Bathroom Stall One Ear Wall Bracket or One Ear 1". Manufacture part # 1763.

Shipped with mounting screws.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Toilet Partition U Bracket Chrome Plated For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the “U” Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or Wall Bracket.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

If your toilet partition or bathroom stall wall bracket is cast with the number 1920 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 2-1/8″ from the back. If features 2 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall X Long “U” Bracket, or X Long “U” Wall Bracket.

The Bobrick Partitions Bottom Door Insert for 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

Partition Two Ear Bracket Cast SS 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

The Flush Metal Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

Chrome Plated Toilet Partitions Bumper Keeper For 1-1/4" Round Edge

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-7/8" wide. The mounting holes are 1-1/2" on center. The stop measures 3/4" wide by 17/32" deep with a rubber insert bumper. Slot is 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5430.

Shipped with mounting screws.

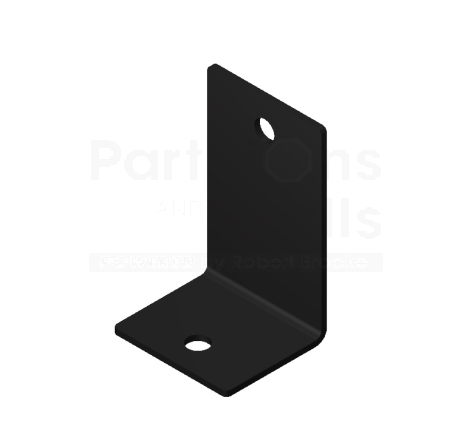

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

VERDEdri hand dryer’s are HEPA-Filtered and uses high performance motors last about 3 times longer than competing model. Manufactured to provide 30% quieter sound levels and is optimized to use only 3.16 watt-hr per use(277 VAC use 3.83 watts-hrs per use). Roughly costing the user 32 cents for every 1,000 cycles. Covers for the White, Black and Graphite finish are made from Cast Aluminum and Polished and Brushed are made from Stainless Steel. Known as World Dryers part numbers Q-162A2, Q-962A2, Q-972A2, Q-973A2 and Q-974A2.

• Finish: Black, Graphite Textured, White, Brushed Stainless Steel, Polished Stainless Steel
• Universal Voltage: Uses smart technology to adapt to almost any facilities voltage. Voltage extends from 110-277v(Min. 15 Amp Recommended).
• ADA Complaint, designed to protrudes less than 4” away from wall ensuring walkway and pathway clearance.
• HEPA Filter, Captures 99.97% of particles, 0.3 or larger
• Touchless operation offers a More Hygienic Experience
• Utilizes Anti-microbial technology on treated surfaces to protect from bacteria, mold and fungus growth that can cause staining, odors and product deterioration.
• Features sounds control between three mode settings, to accommodate sensitive spaces.
• Automatic Infrared Sensor, can dry hands in as little as 12 Second Dry Time, 45 second vandal shut-off/lock out feature.
• Unit Size: 14.5”x12.25”x3.9”
• Sound Level: 69 DBA
• Durable and Vandal Resistant
• Replacement HEPA Filter Available (93-10292K)
• Optional: Top Entry Adaptor Kit (17-10504K)
• 10 yr Limited Warranty, 7 yr Motor and Sensor

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859
