Accurate stainless steel free standing stalls floor mounted overhead braced stalls with a smooth surface. Standard stalls are 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). Standard chrome plated alloy hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate color chart

Accurate Instructions

Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.

Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.

The Flush Metal Partition Top Door Insert is for use on 7/8" thick doors.  The piece is constructed of Zamac die cast metal that is then chrome plated and polished.  Top hinge insert outside dimensions are 2-3/8" by 1" wide by 1-5/8". Two of the three holes are 13/32" diameter and the third is 7/32". Also known as a Bathroom Stall Door Inser Top 7/8". Manufacture part # 1540.  Bobrick also used this insert.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2349.

Toilet Partition Continuous Two Ear Wall Bracket Forl 1" Panel X 41" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 41" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2609.

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Chrome Plated Alcove Clip

Chrome plated zamac die casting, for use on 1" doors and 1-1/4" posts. Horizontal leg in picture is 1-1/4" wide and 1-1/2" tall. The vertical leg is 1-5/32" wide. The holes are 1/4" diameter. Also known as Bathroom Stall Alcove Clip, Toilet Partition Alcove Clip, and Toilet Stall Alcove Clip. The manufacturers part number is 1550 Alcove Clip and 650-6650 Alcove Clip.

The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

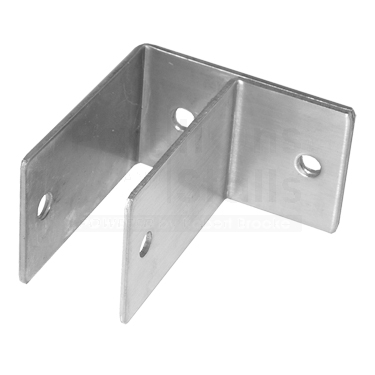

Partition Two Ear Bracket Cast SS 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Right In Swing and Left Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7033.  Shipped with the fasteners.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Left In Swing and Right Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7043.  Shipped with the fasteners.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Metpar Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859

Partition Two Ear Wall Bracket For 7/8" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3-1/2" with 2-3/4" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 7/8". Manufacture part # 1633

Shipped with mounting screws.

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

The Partition Chrome Plated ADA Throw Latch 3-1/2" Screws has chrome plated brass construction.  Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The center to center distance between the mounting screws is 3-1/2".  The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partition Throw Latch. Manufacture part # 5151.  Shipped with mounting screws.

Stamped SS One Ear Bracket 3/4" Panel 1-1/2" X 2-1/2"

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/32" with the mounting screws are 1-11/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1649.

Shipped with screws

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

The Knickerbocker Partition Ada Latch Knob & Cover is constructed of Zamac die cast metal that is then chrome plated and polished. The Cover has an outer diameter of 1-3/4" with a 1-11/32" inner ring diameter. The Knob has an outer diameter of 1-5/8" and and inner diameter of 1-11/32". ADA Lever is 3-3/4" long. Also known as a Bathroom Stall ADA Concealed Latch. Manufacturer part # 6170. Works with General partitions. Used with powder coated steel toilet partitions.

Toilet Partition Continuous One Ear Wall Bracket For 1-1/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-11/16" x 57" long. Mounting holes are 1-19/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2359.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Urinal Screen Bracket Chrome Plated

This bracket is usually used on Toilet Partition Stall Urinal Screens to hold the divider on the wall. The base measures 6-1/4" across, and the holes are 5" on center. The bracket projects out 6" with the two thru holes 3-7/32" on center. The channel that projects out is 1-1/4" wide. This bracket is sometimes called a 2500 Wing Bracket, 2500 Wall Bracket, 2500 Urinal Screen Bracket, Bathroom Partition Wing Bracket, ect..

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.
