The American Sanitary Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 9F0301, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

The Matte Black Hadrian Continuous L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx57-1/2"L. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number H60358-BLK.

Grab Bar Installation Kit Exposed 1" Panel ss plate with screw and nut.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

Roval Automatic Foam Soap or Foam Hand Sanitizer Dispenser, 20365 A foam drop is dispensed out of the nozzle on unit bottom each time its battery-operated sensor is activated. Capacity: 34 oz. (1000 ml) of liquid foaming soaps within a wide range of viscosity. Overall Size 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection. Soap Requirements: Proper usage of this dispenser requires, that only soap/lotion/foaming hand sanitizer within the following range for viscosity and pH may be used.

The Hadrian Partition Keeper Bumper is for use on 1-1/4" thick round edged pilaster posts.  The rectangular slot measures 9/16" by 11/16" and is meant to be the receiver for a concealed latch.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufactures part number is 601800.

If your toilet partition (bathroom stall) wall bracket is stamped 1650, then chances are you have the One Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-1/8″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Double Hook Chrome Plated Projects 3-1/2", 4-1/2"ht

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

The General Toilet Partitions Bottom Hinge is used on round edged 1-1/4" thick pilaster posts.  It features chrome plated Zamac die cast construction. The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" to center hole with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3420.  A=1-11/16"

The Matte Black Hadrian L Bracket is constructed of stainless steel and measures 1-1/2"Wx1-1/4"Hx2-1/2"L. It is recommended that 3 bracket be used for panels of 58" height. These are not designed to be through bolted together. Designed to be mounted on the inside of a partitions stall so hardware is not visible from the outside. Bracket comes with fasteners to install. Known as manufacturers part number 673411-BLK.

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".

The Flush Metal Partition Top Hinge is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

The Flush Metal Partition Pintle 1/2" is for laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

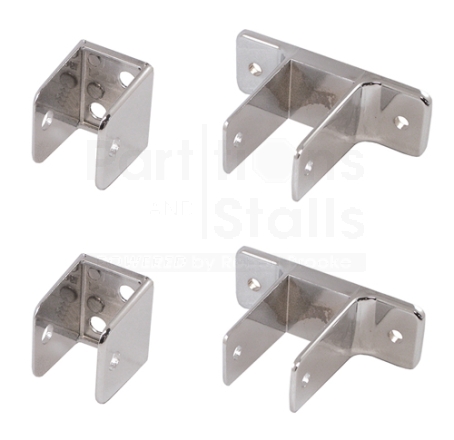

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

Toilet Partition One Ear Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/16" with the mounting screws are 1-13/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1659.

Shipped with screws

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615810.

#12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Grab Bar Installation Kit Concealed 1" Panel 3"dia SS plate stud/nut

The American Sanitary Bottom hinge Insert For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.  The door insert outside measurements are 2-5/16" wide by 1-5/32" deep by 1-3/16" tall. The inside dimensions are 1" and the hex hole measures 3/4". The round hole measures 5/16". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 2490.

Partition Anti-Grip Headrail 1" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 65" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

The All American Toilet Partition Bottom Hinge is used on metal doors and is for use on round edged pilaster posts.  The manufactures part number is 103.  A=1-5/8".

Replacement roller for the Control-O-Roll Toilet Paper Dispensers 6-1/2" wide

Toilet partition door hinge side sightline filler for 1-1/4" thick powder coated steel pilaster post. This product has a slight round edge specifically for this material. The demensions are 1-1/4"x 54-1/2", this product is brushed aluminum and can be cut in the field. This product will help block the gap on the toilet partition hinge side. Known as 560458 from Hadrian partitions and can be used with other factories.

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior depth 4-1/2" with 5" diameter is to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7" (179mm) Square and includes Mounting Hardware. Designed in mind for Behavioral Health and Detention Centers.

The One Ear Hinged Bracket , 3" by  2-1/2" by 1" is constructed of 16 ga (.050") thick for the hinge and 14 ga (.075") thick on the bracket, stainless steel.  The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111359.

The Mills Toilet Partitions Keeper Bumper is for use on round edged pilaster posts.  The strike and keeper measure 2-1/4" high by 29/32" wide and 15/16" deep. The hole spacing is 1-5/8" on center. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known on Bathroom Stall Strike and Keeper Inswing/Outswing 1-1/4". Manufacture part # 5550.  Shipped with mounting screws.

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is chrome plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615100.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.
