Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Toilet Partition Continuous "U" Wall Bracket For 1" Thick Panel Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 54" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2799.

Screws included with bracket.

Coat Hook 3" Projection x 1-3/4" High Cast Stainless Steel

Cast stainless steel construction. The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4023.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Toilet Partition Continuous U Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 54" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2794, 650-1968, 650-1968-54 and U Channel 1 x 54. These brackets are shipped with all the needed fasteners.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

Toilet Partition Continuous One Ear Wall Bracket For 3/4" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2079.

Toilet Partition Aluminum Bracket 'U' For 1" Thick Panel

Constructed of extruded anodized aluminum. The base measures 1-5/16" wide by 1-1/2" tall. The screw holes on the base are 5/8" on center. The legs project out 1-5/16". The bracket is also known as a Bathroom Stall U Bracket, Wall Bracket or Toilet Partiton U Bracket. The manufacturers part numbers is 1914. Shipped with mounting screws.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2868, and 650-8531-54. These brackets are shipped with all the needed fasteners.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Toilet Partition Continuous 'L' Wall Bracket 2-3/4" X 57-1/2" Aluminum

Extruded aluminum construction. Base is 1-3/8" and the leg projects out 2-3/4". These are sold individually. It is also known as a Bathroom Stall Continuous L Wall Bracket. The manufacturers part # is 2684.

The Global Toilet Partitions Keeper Bumper Concealed is for used with concealed latches and 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.  Shipped with mounting screws.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

Aluminum One Ear Bracket 1/2" Panel, 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Toilet Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2094. These brackets are shipped with all the needed fasteners.

The Flush Metal Partition Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac dia cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

Toilet Partition Wall Bracket 'U' For 1" Panel, 3"H x 1-3/8"L

Extruded aluminum construction. The base is 3" long x 1-5/16" wide. The legs project out 1-3/8" and are 1" apart, for use with 1" panels. The six mounting holes are 1/4" diameter. Also known as a Bathroom Stall U Wall Bracket Extra Long. Manufactures part number is 2304. Shipped with all the fasteners.

The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge is designed for use on an 1-1/4" thick pilaster post.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

Roval Automatic Soap Dispenser, 20364 Hands-free, battery-operated soap dispenser. Dispensing cycles adjustable with tamper proof magnetic key. Seamless drawn type 304 stainless steel cover. Translucent removable internal tank for easy-to-view soap level. LED indicates adjustment and operation. Bulk fill with a 34 oz capacity. Overall Size 5 1/2" W x 10 7/8" H x 4" D projection

The American Sanitary Toilet Partition Keeper Bumper Inswing is designed for use on square edged 1-1/4" thick pilaster posts.  It is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for in swinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

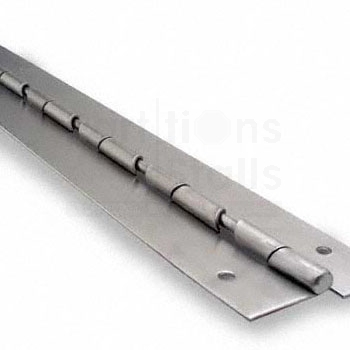

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Toilet Partition Two Ear Wall Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/16" with the mounting screws are 2-13/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1639.

Shipped with screws

Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 15510.

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

If your toilet partition (bathroom stall) wall bracket is cast 1760, then chances are you have the One Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-21/32″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.
