Search results for: 'bracket toilet hing stall desk'

The Metpar Toilet Partitions Pintle For Laminate restroom stalls.  It is constructed of steel and white nylon plastic.  The pintle is 1/2" diameter by 2-5/16" high. The threads are 5/16-18. Also known as a Bathroom Stall Pintle. Manufacture part # 98265.  Shipped with lock washers and nut.

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615230.

The Toilet Partition Door Stop 2" High is constructed of chrome plated Zamac die cast. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Stainless Steel Partition Support Brace U Shape. Used with up to a 1-1/4" Thick Post. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support U-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8503, 85083, 85093. Most common **8503, 9a8503, 9a85083, 9a85093. The U-Shape is for 1-1/4" panel.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

Global partitions solid plastic (HDPE) wall mounted urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Plastic wall mounted screens can be 48" in height by 1" thick panel. Available in 12, 18, 24, 30 widths. Continuous aluminum channel bracket shown in picture included.

Global Solid Plastic Color Chart

Bobrick 1550 metro series plastic laminate between wall partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

Ordering Online All Solid Plastic (HDPE) Doors Manufactured by Hadrian Partitions, see color chart below. For other factory colors please call for pricing. All doors ship from the factory after 5 business day, plus 2-4 days travel. Note 22", 23", 24", 26",32", 34" & 36" are the opening you have between posts. The doors Include standard 8" wrap hinge sets or up grade to ss cam piano style hinges. All hardware is for 1" thick material, aluminum latching and door stop all in aluminum finish included. (actual door size is 1/2" narrower that the opening).

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615330.

Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

The Ampco Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal and then chrome plated.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is cast stainless steel plated. All kits include security fasteners to install the brackets. Also known as 615163.

The Fiat Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Ampco Toilet Partition Pintle is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175. Shipped with nut and lock washer.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

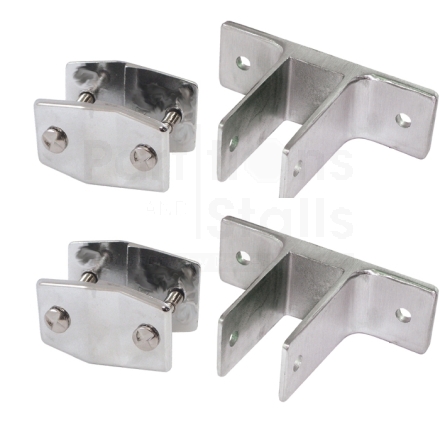

Stainless Alcove Two Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615333.

The Mills Toilet Partitions Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. They are constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.  Shipped with mounting screws.

The Fiat Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

Alcove Two Ear Bracket Panel Kit for 3/4" Panel to 1" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615313.

The Sanymetal Toilet Partition Keeper 2" Between Screws is constructed of Zamac die cast metal that is then chrome plated and polished.   Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.  Shipped with mounting screws.

Bobrick 1550 metro series plastic laminate Ada Alcove partition configuration, Plastic laminate overhead braced floor mounted stalls. Standard stalls 36" x 60"depth (24" door), ADA stall 60" x 60" depth (36" door). All hardware included. Doors are either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select (1) ADA 24", plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select (2) standard stalls and (1) ADA stall 24". Plastic laminate Partitions ship in 1 week.

Bobrick 1550 plastic laminate color chart

Bobrick 1550 Instructions

The Ampco Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

The Metpar Toilet Partition Nylon Cam is constructed of white nylon.  The partition cam head outside diameter is 23/32" and the inside diameter is 1/2". The cams cylinder is 1-13/32" long with a diameter of 5/8". For use with a 1/2" pintle. Also known as a Bathroom Stall Cam. Manufacture part # 98275.

Alcove Two Ear Bracket Panel Kit for 1/2" Panel to 3/4" Post. Wall brackets and alcove clips are cast stainless steel construction. Security screws included. Also known as 615353.

The Knickerbocker Toilet Partition Pintle 5/8" diameter is used on there metal and plastic laminate restroom stalls.   The Pintle measures 5/8" diameter by 2-3/16" long and the threaded end has a 10-32 x 1/2" thread.   This part also goes by the part number 97275 and 213.

Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

The General Toilet Partition Latch Knob & Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The Mills Toilet Partition Slide Bolt Latch Concealed is a popular latch used by them.  Latch cover plates are 1-3/4" wide by 1-3/8" high. The latch switch is 1-15/32" wide. The latch bolt is 3/8" diameter. The spacing between the cover and the latch 1-1-32". They are constructed of Zamac die cast metal that is then chrome plated and polished.  This is a one of a kind latch. Also known as a Bathroom Stall Concealed Latch. Manufacture part # 4230, HDWT T290.

One Ear Pilaster Bracket Kit for 1" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615253.

Bobrick SCRC solid phenolic alcove partitions 1080/1090 series with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. 3-4  week delivery from the factory.

Bobrick Phenolic Color Chart

Bobrick 1080 Instructions

Bobrick 1090 Instructions

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket chrome plated. Security screws included. Also known as 615360.
