Bobrick outswing keeper for door latch. Also known as 1040-36, 7729. Used with slide latch. Hole spacing is 1-1/2".

• Partition Door Privacy Strip are aluminum construction
• 1-1/8" x 72" ht.
• Also known as 121975.
• Partition Door Privacy strips are designed to eliminate any gaps between door and pilaster. Add your own self threading screws to complete the job, includes 1 privacy strip
• This product ships in an oversize box ground.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

The Toilet Partition Keeper- Outswing, For 1-1/4" Square Edge is designed for out swinging doors and an 1-1/4" thick square edged pilaster post.  The keeper is constructed of cast stainless steel.  The part is used by many manufactures on there plastic laminate restroom stalls, and there part number is 40-8562304.

The Accurate Toilet Partition Hinge Cam Set is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9G631E, 89820 and 89830.

The All American Toilet Partition Pintle 1/2" Diameter is used on metal and plastic laminate restroom stalls.  This component is used on the hinges to make the door self closing.

The Accurate Partition Top and Bottom Hinge kit is for 1-1/4" round edge pilasters or posts.  These are used on Accurate Partition Corp's, metal doors sold before January 2013.  The kit includes the top and bottom hinges, pins and security screws.  Hinges are constructed of die cast metal that is then chrome plated and polished.  The manufactures part numbers are 50-8517300, 50-2517200 and 50-398660.   A=1-1/2". There is no exact hinge replacement available.

**Not Available anymore, see link for new doors

https://www.partitionsandstalls.com/accurate-partition-steel-doors.html

https://www.partitionsandstalls.com/partition-hardware/hinges/surface-mounted-hinge-sets.html

https://www.partitionsandstalls.com/partition-hardware/hinges/continuous-piano-hinges.html

The Global Toilet Partition Cam Set For Laminate is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9HAP35, 89820 and 89830.

Bobrick B-36903 recessed paper towel dispenser with waste receptacle in a satin finish stainless steel. The door has a 90 degree return. dispenses 300 c-fold or 400 multifold towels. Removable leak-proof waste container has a 1.6 gal. capacity. Rough wall opening 11-1/2"w x 29-1/2"ht x 3-3/4" minimum depth.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

The Hadrian Partition Nylon Cam is one of the components for the door hinge.  It is constructed of white nylon plastic.  The manufactures part number is 601700.

DryBaby stainless steel baby changing station is a horizontal unit that has a stainless steel exterior finish. Designed with pneumatic gas shocks to provide smooth operation, able to be pulled down as well as fasten safety belt with one hand. Features bag hooks at front corners and dual bed liner dispensers. Comes with easy step by step installation instructions and is ADA complaint when installed in accordance to instructions provided. Easy to maintain as High-density polyethylene inhibits bacterial growth and odor resistant. Known as World Dryers part number ABC-300HS.

• Stainless Steel Exterior, with High-Density Polyethylene Interior
• Horizontal Surface Mount Design
• Unit Size: 21.5”x37.5”x4”
• ADA and ANSI Compliant when mounted according to instructions
• Design for children up to 3.5 years or age and weighing up to 50 lbs, Meets ASTM F2285
• Smooth Opening and Closing Motion with Pneumatic gas shock mechanism
• CPSIA Compliant to applicable sections
• Resistance to Fungi(ASTM G21) and Bacteria(ASTM G22)
• Features built in liner dispenser, Liners(ABC-300L)
• Replacement Strap (93-10075)
• Recessed Stainless Steel Unit(ABC-300HSR) Available
• 5 yr Limited Warranty

The Accurate Toilet Partition Keeper Bumper for Outswing doors is constructed of Zamac die cast metal and then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Out Swing 1-1/4" Square Edge. Manufacture part # 5210. Shipped with mounting screws.

The Metpar Toilet Partitions Top Hinge Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

The Fiat Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Sanymetal Toilet Partitions Bottom Power Bearing For Laminate is used on there plastic laminate of Formica restroom stalls.   The Power Bearing is what makes the door self closing.  The manufacture part number is 97280.

Hadrian HDPE solid plastic floor mounted privacy screen is great for a commercial setting with low maintenance. Floor mounted  privacy's are 55" height by 14" width through 58" wide panels. All solid plastic Hadrian colors ship out in 5 business days and are 2-4 day travel for deliveries. 5"x70" pilaster and standard aluminum brackets are included with choice of continuous aluminum or stainless full length brackets.

Hadrian Solid Plastic Color Chart

Hadrian Partition Solid Plastic Instructions

Bobrick slide latch for surface mounting on doors. Most common with Bobrick's doors. Also known as 1040-42 or 1001492 includes latch track, latch cover, set screw that uses a 5/64" allen wrench and flathead latch screw.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

The All American Toilet Partition Latch Knob and Cover is used on All American Metal Corp 1" thick metal doors.  The inner and outer knob are included in the package.  The manufactures part number is 104.

The Metpar Toilet Partition Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts and doors with a concealed latch.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-1/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/32" deep. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5520.  Shipped with mounting screws.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

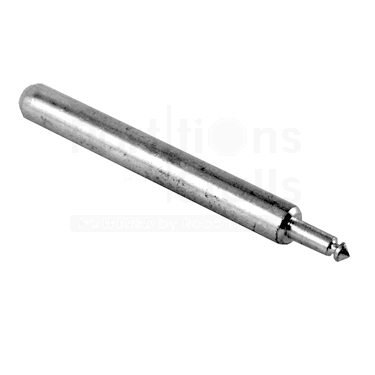

The Metpar Toilet Partition Top Hinge Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The General Toilet Partition Top Hinge Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

B-3699 surface mounted towel & waste receptacle. The unit holds up to 350 c-folds and 475 multifold towels. Knob latch retains door. Removable waste container has a 2 gallon capacity. For mounting this unit has a stainless steel skirt for surface mounting.

The Toilet Partition Keeper- Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

The Toilet Partition Keeper- Inswing For 1" Square Edge is designed for in swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562307.
