Global partitions ordering online solid phenolic pilasters are all phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Pilaster's Include: stainless steel pilaster shoe and mounting hardware to floor. Available for the following widths 3"- 24". The height is 85" pilasters for overhead braced type. If yours are less you can cut the top off and the headrail will cover the top.
Global Solid Phenolic Color Chart

Global partitions ordering online all solid phenolic panels are solid phenolic color thru or black core partitions manufactured by Global Partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Panel's Available for the following widths 16"-76". Actual width is 1/2" less. 58"ht panel's 4 stainless steel brackets included.
Global Solid Phenolic Color Chart

Global Partitions Ordering Online Solid Phenolic Doors are all Solid Phenolic color thru or black core Partitions manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Includes SS Vault Hinges, latching and keeper bumper. 58" ht Doors***
Global Solid Phenolic Color Chart

Global partitions commercial solid phenolic overhead braced urinal privacy are a solid color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Overhead braced urinal screen's are available for the following widths 16" - 52". Actual width is 1/2" less and panels are 58" ht. All standard stainless steel brackets, headrail, 6x80 pilaster and panel are included per order.
Global Solid Phenolic Color Chart

Global partitions solid phenolic 10' post & panel dividers are available in phenolic color thru or phenolic black core partitions. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. 10' Post & Panel's are available for the following widths 16-52". Actual width is 1/2" less than size and 58" high panels. All standard stainless steel brackets included for post and panel mounting.
Global Solid Phenolic Color Chart

Global partitions solid phenolic wall hung or mounted urinal privacy screens are available in a color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Urinal screens are 1/2" thick by 48" high panel. Available in the following widths 12, 18, 24". Specify color and width.Cast stainless steel bracket included.
Global Solid Phenolic Color Chart

Global partitions solid phenolic floor mounted privacy's are available in phenolic color thru or black core. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Floor mounted urinal screen's are available for the following widths 16"- 52". Actual panel width is 1/2" less size ordering and all panels are 58" ht. All stainless steel brackets, 5x70 pilaster and panel included.
Global Solid Phenolic Color Chart

Global partitions complete solid phenolic material alcove partitions with overhead braced floor mounted stalls. Alcove stall includes 36" door, 2 pilasters and panel divider to make up the balance. Doors can be either in or out swing you choose. Standard stainless steel hardware included. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partitions complete solid phenolic free standing toilet partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24 x 60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partition complete solid phenolic material in a corner partition with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), ADA stall 60" x 60" depth (36" door). All Stainless Steel hardware included. Doors can be either in or out swing to choose from. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60 x 60 Ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24 x 60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

Global partition complete solid phenolic between 2 wall partitions with overhead braced floor mounted stalls. Standard stalls 36" x 60" depth (24" door), Ada stall 60" x 60" depth (36" door). All stainless steel hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60 x 60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel.
Global Solid Phenolic Color Chart

The Toilet Partition Keeper- Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

The Toilet Partition Keeper- Inswing For 1" Square Edge is designed for in swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562307.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

The Global Toilet Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Global Toilet Partition Cam Set For Laminate is used on Accurate Partition Corp and Global Partition Corp plastic laminate doors.  The manufactures part numbers are 9HAP35, 89820 and 89830.

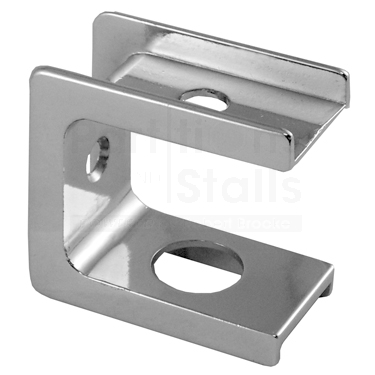

The Global Toilet Partitions U Trim Door Insert is for top or bottom 1" plastic laminate doors.  It is constructed of Zamac die cast metal, then chrome plated and polished.  Large hole is 3/4" diameter, small hole is 3/8" diameter. Hole in the U is 9/32" and counter sunk. Insert measures 1" wide by 2-9/32" deep by 2-3/16" high. Also known as a Bathroom Stall Door Insert Top/Bottom 1". Used on Accurate and Global Toilet Partitions.  Also known as 9G631B, manufacture part # 1680.

The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The Global Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws. Globals manufacturer part number 40-8511530.

The Global Toilet Partitions Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Global Toilet Partitions Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.   It is constructed on Zamac die cast metal that is chrome plated and polished.  Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010.  Shipped with mounting screws.  A=1-7/6".

The Global Toilet Partitions Top Hinge Casting is for use on there metal restroom stalls.  It is constructed of Zamac die cast metal.  The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.

The Global Toilet Partitions Keeper Bumper Concealed is for used with concealed latches and 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230.  Shipped with mounting screws.

The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.

The Global Toilet Partitions Ada Latch Knob Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380.

The Toilet Partition Keeper- Outswing, For 1-1/4" Square Edge is designed for out swinging doors and an 1-1/4" thick square edged pilaster post.  The keeper is constructed of cast stainless steel.  The part is used by many manufactures on there plastic laminate restroom stalls, and there part number is 40-8562304.

Global Partitions Top or Bottom Hinge for plastic laminate doors used for top or bottom for 1 1/4" square edge post. The partition hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Used by Global and Accurate Partitions toilet. Manufacture part # 3540. Same as 9hap10 on our website.

The Partition Keeper - Outswing For 3/4" Square Edge is for out swinging doors and mounted on square edge 3/4" thick pilaster posts.  The keeper is constructed of cast stainless steel.  The manufacture part number is 40-8562306.

Toilet partition round edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoes are split on one end for easy installation. Also known as a Bathroom Stall Pilaster Post Shoe Round Edge. Used for the base of the support system with pilaster mounting.

The Partition Slide Bolt Latch Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The latch measures 1-1/2" Wide X 3-1/4" High, and 2-3/4" Between Screws.  We find this latch used on Accurate Partition Corp and Global Partition corp restroom stalls.  Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

The Global Toilet Partitions Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136.  This latch ships with the mounting screws.

Global partition stainless steel wall hung urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Standard chrome plated brackets included. Available for the following widths - 12", 18" and 24", Actual width is 1/2" less.x 48"ht screen.

Global Stainless Steel Color Chart

Global Toilet stalls between walls in Powder Coated Metal Between 2 Walls Toilet Partitions. Standard stalls 36"x 60" depth (24" door), ADA stall 60"x60" depth(36" door). All hardware included. Doors can be either in or out swing. Up to 8 standard stalls total or 7 standard and 1 ada stall. All toilet partitions ship in 48-72 hours plus 2-4 days travel. To have an ADA stall you must select 1 ADA 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an ADA stall & standard stall, you must select 2 standard stalls and 1 ADA stall 24x60. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Global Partitions Color Chart

Global Partition selling online all plastic laminate panel dividers. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes 4 standard chrome brackets. Available for the following widths 16-76" and are 1" thick. Actual width is 1/2" less.

Global Plastic Laminate color chart
