Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Partition Bracket One Ear Aluminum 1 1/4" Panel, 3" H X 2-3/4" L

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

Partition Bottom Hinge Assembly For 1" Door, 1-1/4" Post is for use with 1-1/4" thick square edged pilaster posts and 1" thick doors.  Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". The package includes bottom hinge, pintle, nylon cam, bottom hinge door insert and mounting screws.  The hinge is constructed of Zamac die cast metal that is chrome plated and then polished.  Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63710.

The Bottom Hinge Assembly Cast SS is for use on 7/8" thick doors and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel, that is then brushed to the proper finish.  The kit includes bottom hinge, pintle, pin, insert and mounting screws.  Also known as a Bathroom Stall Bottom Pivot Hinge Set. Manufacture part # 63013

Partition U Bracket For 3/4" Thick Panel Cast Stainless Steel. Cast stainless steel construction. Bracket base is 1-3/8" x 1" with two mounting screw holes. Bracket legs project out 1-3/8" with the thru hole at 1" on center from the bottom of the base. Also known as a Bathroom Partition Stall U-Bracket or Wall Bracket 3/4". Manufacture part number 1893. Shipped with mounting screws.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

The Partition Top Hinge Assembly For 1" Door, 1-1/4" Post is for use on square edged 1-1/4" thick pilaster posts and 1" thick doors.   Top hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4".  Kit includes Top Hinge, Top Hinge Pin, Top Hinge Door Insert, and mounting screws.  The assembly is constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Top Hinge Kit. Manufacture part number 63720.

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615810.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

Coat Hook 3" Projection x 1-3/4" High Cast Stainless Steel

Cast stainless steel construction. The hook base measures 1-3/16" wide by 1-9/16" high. The long hook projects out 3" and the short hook projects out 1-1/2". Also known as Bathroom Stall Hook. Manufacture part # 4023.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated. Security screws included. Also known as 615660.

Alcove One Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are chrome plated zamac. Security screws included. Also known as 615400.

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Chrome Plated Toilet Partition Bumper Keeper For 1" Square Edge Post

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5730.

Shipped with mounting screws.

Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is chrome plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615100.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Chrome plated outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21300.

Toilet Partition U Bracket Chrome Plated For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the “U” Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or Wall Bracket.

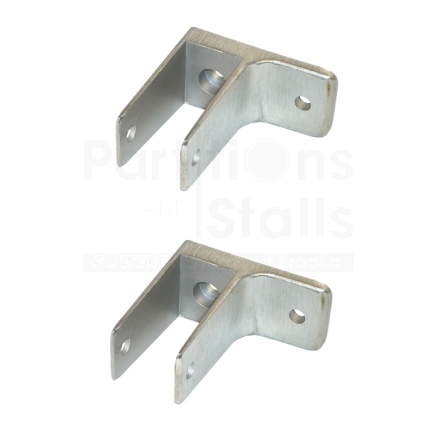

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615813.

The Partition Bottom Hinge Assembly Cast Stainless Steel is for use on 1" Door and 1-1/4" thick square edged Pilaster Posts.  They are constructed of cast stainless steel.  Set includes bottom hinge, pin, door insert and mounting screws. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Toilet Partition Two Ear Wall Bracket For 3/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 3" with 2-7/32" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 3/4". Manufacture part # 1623

Shipped with mounting screws.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is cast stainless steel plated. All kits include security fasteners to install the brackets. Also known as 615163.

Partition panel bracket kits for 3/4" thick panel, One eared bracket that is cast stainless steel plated. All bracket kits include security hardware fasteners to mount the brackets. Also known as 615103.

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum
