Partition Hardware
Our office is located in Troy, Michigan, but we ship our toilet partition parts pretty much anywhere you can think of. Whether you are right here in Michigan, in another state, or even in Canada, we can fulfill your order of bathroom stall hardware and ship it out to you without delay.
We have been in business since the 1970’s so we know a thing or two about providing our customers with excellent quality hardware. Though we started off primarily focusing on lockers, soon after our company added to our product base to include more items such as toilet partition hardware.
At Robert Brooke Partitions And Stalls, we have worked with many types of organizations throughout our time in business. We have had the opportunity to work together with offices, schools, gyms, churches and more establishments with public restrooms. We have aided in the restroom development that these organizations were working toward by supplying them with grade-A bathroom stall hardware.
We have had success in continuously fulfilling our mission as a committed bathroom partition hardware distributor. Our number one goal is to offer the best products and services possible to our customers. In turn, our customers are happy with the quality of products they purchase from us.
Bathroom Partition Hardware Brands
Have you ever wondered who makes certain equipment? Who makes commercial restroom partitions and the hardware that goes with them?
Our company has gotten to the bottom of this mystery as we have had the chance to distribute products made by these companies. Throughout the U.S. and even in Canada there are manufacturing companies whose primary concern is to produce restroom stalls and bathroom partition hardware. Some of these bathroom stall parts manufacturers also produce other washroom accessories and related products.
We’ve been able to identify some of the best constructors of stalls and bathroom partition hardware out there and they’ve allowed us to become an online vessel for selling their first-rate equipment. We only carry restroom partitions and bathroom stall hardware that was produced by reputable and leading name bathroom stall hardware manufacturers.
Bathroom Partition Hardware Online
If you would like to track down a certain kind of bathroom partition hardware, you should try out our website Search Bar. With our Search Bar, you can enter in your bathroom partition hardware model or manufacturer to narrow down the options we have for you.
Be sure to search for generalized bathroom partition hardware in our product base, too. Some products in our toilet partition hardware supply doesn’t fall under a specific brand category, so it’s a good idea to skim through the other bathroom partition hardware we have.
We have an extensive range of bathroom partition hardware that we sell online. Our toilet partition hardware supply includes pilaster shoes, panel brackets, power bearings, coat hooks for doors, door stops, door pulls, door hinges, hinge sets, slide bolt latches, standard concealed latches, ADA turn latches, keepers, partition door locks and so much more partition door hardware.
The material that restroom stall hardware is made out of varies. There is a lot of toilet partition hardware that is constructed from Zamak metal that was made in a die casting process. Zamak bathroom partition hardware can be either chrome plated or non-plated. Other material includes stainless steel, plastic, nylon, rubber, anodized aluminum, zinc plated steel, knurled steel and threaded steel.
The bathroom partition hardware that we carry also varies in the way that each part is mounted. Check the mounting style of the partition part before you commit to buying it. You will want to know how the part is mounted in order to fully understand how it functions. The product description will specify how the part can be mounted, like whether it can be surface mounted, for instance.
Installing Restroom Stall Hardware
Many of the hardware products we sell have a set of instructions listed on the product page. Plus, many of our product descriptions note the function of the restroom stall hardware when it might not seem so obvious what the partition part is used for.
For instance, the product description for the Set of 4 Comtec Stealth Brackets for Integral Hinges explains that these brackets support integral hinge pins. The product page also has a picture of installation instructions for the brackets.
Another bathroom partition hardware product that has directions right on the product page is the Stainless Steel Heavy-Duty Vault Hinge Set for ¾ inch or 1 inch thick stall doors. The page notes that this extra-strength toilet partition hardware is for solid plastic stall doors.
Even the Hadrian Headrail End Cap has simple online directions for setting it up. The instructions are on the product page in the form of a diagram. The diagram shows where the bathroom partition hardware goes on stall doors and the rest is self-explanatory.
The Privacy Cover is another kind of toilet partition hardware that has listed features and instructions on its product page. Also described is which type of stall doors the product is and is not recommended for. For example, the Privacy Cover can be used with stalls that are made from plastic laminate, solid phenolic, powder coated steel or stainless steel materials.
Please connect with us if you require more assistance with setting up the toilet partition hardware that you ordered. Email Sales@PartitionsAndStalls.com or call (800) 642-2403 and one of our team members will go over the instructions with you.
Restroom Stall Hardware Distributors
Have you had the chance to run through our toilet partition hardware supply online? If so, let us know whether you come up with any questions about the bathroom partition hardware that we have in stock. If not, go ahead and get browsing!
Call or email us so that we can go over your bathroom partition hardware order together. We are excited to help you order new toilet partition hardware that will be used to make improvements to the public restroom you manage on a day to day basis. We hope that your newly restored bathroom leaves you with an overall feeling of satisfaction.
Would you like to know more about the toilet partition hardware in our current and ever-growing stockpile? Read up on our selection of bathroom partition hardware in our RBA Partitions and Parts Catalog. Our bathroom partition hardware catalog is always here online as an extra resource.
For stellar-quality, affordable toilet partition hardware, look no further than Robert Brooke Partitions And Stalls. We have the latest and greatest partitions parts for your commercial restroom right here in our online toilet partition hardware supply. Make your purchase of toilet partition hardware right now on our site so that you can begin repairing your facility’s restroom partitions and stall doors soon.
-
Top Hinge Assembly Chrome Plated For 7/8" Door, 1-1/4" Post
Toilet Partition Top Hinge Assembly For 7/8" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Pintle, Nylon Cam, and Top Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63020. Screws are also included.9A3020 -
Partition Keeper Bumper Cast SS For 1-1/4" Sq Post
Partition Keeper Bumper For 1-1/4" Square Post Outswing Cast Stainless Steel
Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5213.
Shipped with mounting screws.
9A5213 -
Partition Keeper Bumper Flat Stop Chrome Plated 1-1/2" Screws
Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws
Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240
Shipped with mounting screws.
9A5240 -
Toilet Partition Door Pull Cast SS 3-1/2" Between Screws
Partition Door Pull 3-1/2" Between Screws Cast Stainless Steel
Cast stainless steel construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5403.
9A5403 -
Toilet Partition Headrail 1-1/4"X95" Type B
Partition Anti-Grip Headrail 1-1/4" X 95" Type B Aluminum. Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 95" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.
9HR98B2 -
Toilet Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4
Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.
Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.
9A4151 -
Torx driver bit T27
Torx driver bit T27 for toilet partition security screws. These torq heads screws are used with brackets that hold the partitions together. This torx bit is for a T27 size and is hollow for a screw with a pin sticking out in the middle of head of the screw and uses a 1/4" shank bit.
TBIT -
Two Ear Bracket For 3/4" x 1-1/2" x 2-1/2"L
If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket
9A0162 -

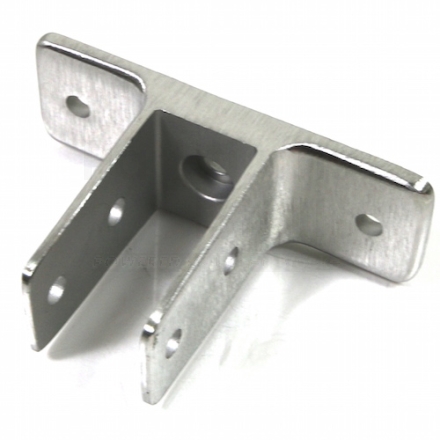

Toilet Partition Two Ear Urinal Bracket Cast SS 1" X 1-1/2" X 2-1/2"
Toilet Partition Two Ear Urinal Wall Bracket For 1" Panel Cast Stainless Steel
Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 2-1/2" with the thru hole at 2-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear 1". Manufacture part # 1613.
Ships with mounting screws.
9A1613 -
Toilet Partition Bracket Two Ear Aluminum For 1" Panel,3" H X 2-3/4" L
Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum
Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.
9A2264 -
Partition Continuous One Ear Bracket Stainless Steel 1" x 2-1/2" X 54"
Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 54" Long Stamped Stainless Steel
18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 54" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2879.
9A2879 -
Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster
The Chrome Plated Bottom Hinge Assembly For 7/8" Door, 1-1/4" Pilaster if for use on 7/8" thick doors and 1-1/4" thick squared edged pilaster posts. Hinge is constructed of Zamac die cast metal that is chrome plated and polished. Kit includes Bottom Hinge, Pintle, Nylon Cam, Bottom Hinge Door Insert and mounting Screws. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63010.
9A3010 -
Partition Keeper Bumper Flat Stop Chrome Plated 1-1/2" Screws, Outswing
Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws, For Outswing
Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5260
Shipped with mounting screws.
9A5260 -
Toilet Partition Keeper Bumper Inswing Cast SS 1" Post Sq Edge
Partition Keeper Bumper Inswing 1" Post Square Edge Cast Stainless Steel
Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. The slot is 5/16" deep by 1-1/2" high. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing 1". Manufacture part # 5623.
Shipped with mounting screws.
9A5623 -
Pilaster Anchoring Device For 3/4" Thickness
Toilet Partition Pilaster Anchoring Device
Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.
9A1056 -
Hadrian Aluminum Headrail 1"X 60" Type A
Hadrian Aluminum Headrails for 1"X60" Type A used on overhead braced floor mounted partitions. For Hadrian Powder Coated Steel and Stainless Steel Partitions. The headrail goes between a U shape which is 1" for the headrail to fit into at the top of the pilaster, the headrail bolts to the pilaster for stability at the top. Also known as part number 580060.
9HR60A -
Toilet Partition Door Pull Cast S.S. 2-3/4"
Partition Door Pull 2-3/4" Between Screws Cast Stainless Steel
Cast stainless steel construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6203.
9A6203 -
S.S.Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4
Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Stainless Steel.
Cast Stainless Steel construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4153.
9A4153 -
Partition Double Door Pull 5-1/2" Chrome Plated
The Partition Double Door Pull 5-1/2" Chrome Plated come as two handles for mounting back to back handles on an one inch thick door. The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door. They are constructed of Zamac die cast metal that is then chrome plated and polished. The manufacturer part number on this part is 610112. Overall width is 6-3/4".
9HH001 -
Partition Two Ear Bracket For 7/8" x 1-1/2" x 2-1/2" L
If your toilet partition (bathroom stall) wall bracket is stamped 1630, then chances are you have the Two Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-1/2″ long with 2-3/4″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.
9A0163 -
Two Ear Urinal Screen Bracket Cast SS For 1" Panel 1-1/2" x 3-1/2
Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel
Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.
Ships with mounting screws.
9A1283 -
Continuous One Ear Bracket Stainless Steel 1" x 2-1/2" X 57"
Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 57" Long Stamped Stainless Steel
18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2339.
9A2339 -
Partition Continuous "H" Bracket For 1" X 1" X 54",1" Panel To 1"
Toilet Partition Continuous "H" (Alcove) Bracket For 1" Thick Panels Aluminum
Constructed of extruded anodized aluminum. Channel is 2-1/2" high by 1+" wide by 54" long, for use with 1" panels. Thru holes are 1-1/2" on center. Holes are 1/4" diameter. Thru holes are every 13" or so. Sometimes known as Bathroom Stall Continuous Alcove Bracket or Toilet Partiton Alcove Bracket. The manufacturers part numbers are 2858, and 650-1862-54. These brackets are shipped with all the needed fasteners.
9A2858 -
Partition Keeper Bumper Chrome Plated Inswing 1-1/4"
Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge
Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330
9A5330 -
Partition Keeper Bumper Inswing Cast SS 1" Sq Edge
Partition Keeper Bumper Inswing 1" Square Edge Cast Stainless Steel
Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-15/16" wide. The mounting holes are 1-1/2" on center. The stop is 2-1/2" tall by 13/16" projection with a rubber insert. The two slots are 5/16" deep by 13/16" high. Also known as Bathroom Stall Strike and Keeper Inswing 1". Manufacture part # 5823.
Shipped with mounting screws.
9A5823 -
Hadrian Aluminum Headrail 1"X74" Type A
Hadrian Aluminum Headrails for 1"X74" Type A used on overhead braced floor mounted partitions. For Hadrian Powder Coated Steel and Stainless Steel Partitions. The headrail goes between a U shape which is 1" for the headrail to fit into at the top of the pilaster, the headrail bolts to the pilaster for stability at the top. Also known as part number 580074.
9HR74A -
Double Door Pull 5-1/2" Stainless Steel
The Partition Double Door Pull 5-1/2" stainless steel come as two handles for mounting back to back handles on an one inch thick door. The handles have 5-7/8" center to center hole spacing, and the screws included are for a 1" thick door. This is constructed of cast brushed stainless steel. The manufacturer part number on this part is 900112. Overall width is 6-3/4"
9HH002 -
Global Complete Hinge Set with Rounded Edge
Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.
9G663140
