Fiat Toilet Partition

Global Partitions and Accessories

Everything you need for your Bathrooms

You will find everything from Global Toilet Partition complete commercial restroom partition toilet stall systems or just door's, panel's, pilasters and privacy screens on our website. Accessories from Hand Dryers, Toilet Paper Holders, Paper Towel Dispensers, Fem nap Disposal units, foaming soap dispenser and more. Partition hardware is separated by manufacture for Door hardware, this is very important to know your manufacture of partitions. All generic parts for the manufactures are typically brackets, door pulls, coat hooks, slide latches, keepers and more on our website. All Toilet partitions are not returnable, every order is made per customer. Email us for assistance.

RBA Partitions and Parts Catalog

View as Grid List

15 Items

per page
Set Descending Direction
  1. Fiat Toilet Partition Top Hinge Pin

    The Fiat Toilet Partition Top Hinge Pin is constructed of knurled steel.  This pin is used on there plastic laminate restroom stalls.  Hinge pin is 3-1/2" long by 3/8" diameter. The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

    9F0310
    $3.80
  2. Fiat Toilet Partition Bottom Hinge

    The Fiat Toilet Partition Bottom Hinge is for use on an 1-1/4" square edged pilaster post.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide and the hole spacing is 1-1/2". The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 5/16" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Bottom 1-1/4". Also known as General, American Sanitary, Flush Metal, Fiat Tiolet Partition 91000P, 9AM280, 9FL700.  Manufacture part # 3290.  Shipped with mounting screws.  A=1-5/8"

    9F0301
    $9.61
  3. Fiat Partition Keeper Bumper Inswing

    The Fiat Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

    9F0304
    $7.17
  4. Fiat Partition Keeper Bumper Outswing

    The Fiat Partition Keeper Bumper Outswing is designed to be mounted on 1-1/4" square edged pilaster posts.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

    9F0303
    $6.77
  5. Fiat Partition Keeper Bumper Concealed

    The Fiat Partition Keeper Bumper Concealed is constructed of Zamac die cast and polished chrome plate.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.  Same as the 9S8861

    9F0227
    $7.08
  6. Fiat Partition Slide Bolt Latch

    The Fiat Toilet Partition Slide Bolt Latch is constructed of Zamac die cast metal and then chrome plated and polished.  Latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5020.  Shipped with mounting screws.

    9F0302
    $8.60
  7. Fiat Toilet Partition Pintle

    The Fiat Toilet Partition Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

    9F0311
    $4.43
  8. Fiat Toilet Partition Top Hinge

    The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin.  It is constructed of Zamac die cast metal that is chrome plated and polished.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3630.  Ships with mounting screws.  A=1-11/16"

    9F0211N
    $15.18
  9. Fiat Toilet Partition Top Door Insert

    The Fiat Toilet Partition Top Door Insert is constructed of Zamac die cast metal that is chrome plated and then polished.  The hinge U insert has outside dimesions of 2-3/16" wide by 1-1/2" by 1" deep with tow holes 1/2" diameter. The inside distance between the U's is 1-1/16". Also known as a Fiat Bathroom Stall Door Insert Top 1". Manufacture part # 4800.

    9F0316
    $7.97
  10. Fiat Toilet Partition Bottom Door Insert

    The Fiat Toilet Partition Bottom Door Insert is for use on there 1" thick doors.   It is constructed of Zamac die cast metal that is then chrome plated and polished.  The bottom door insert measures 2-1/8" by 1" by 13/16". The insert has one hole, which is 7/32" diameter. The square hole is 29/32" wide by 1". Also known as a Fiat Bathroom Stall Door Insert Bottom 1". Manufacture part # 4700.

    9F0317
    $7.27
  11. Fiat Toilet Partition Nylon Cam

    The Fiat Toilet Partition Nylon Cam is constructed of white nylon plastic.  The square head measures 7/8" by 1-1/8" with a 11/16" diameter hole. The cylindrical part is 7/8" diameter. The overall height is 1-3/16", with square part measuring 21/32". Also known as a Fiat Bathroom Stall Cam. Manufacture part # 98195. For use with an 11/16" diameter pintle.

    9F0312
    $2.53
  12. Fiat Toilet Partition Top Hinge Pin

    The Fiat Toilet Partition Top Hinge Pin is constructed of zinc plated steel.  The pin measures 3-9/32" long with a 7/16" diameter. The non pointed end has a threaded 10-24 hole. Also known as a Fiat Bathroom Stall Hinge Pin. Manufacture part # 99574.

    9F0207N
    $5.06
  13. Fiat Toilet Partition Coat Hook Bumper

    The Fiat Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

    9F0225
    $3.07

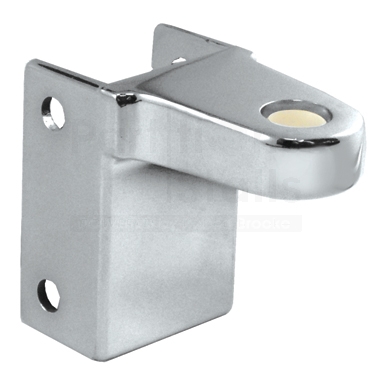

  14. Fiat Toilet Partition Top Hinge

    The Fiat Toilet Partition Top Hinge is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

    9F0300
    $9.61
  15. Fiat Toilet Partition Bottom Hinge

    The Fiat Toilet Partition Bottom Hinge is constructed of Zamac die cast metal, then chrome plated.  This bottom hinge is for 1-1/4" thick square edged pilaster posts.  The hinge U channel measures 2-1/4" high by 1-1/4" deep with an insert depth of 1-5/16". The hole spacing is 1-1/2" on center. The hinge lug projects out 1-11/16" by 1/2" thick with a hole diameter of 5/16". Also known as a AMPCO Bathroom Stall Pivot Hinge - Bottom 1-1/4". Manufacture part # 3130.  Shipped with mounting screws.  A=1-11/16"

    9F0214N.
    $17.71
