Fiat Toilet Partition Top Hinge - Lug Centered
Description

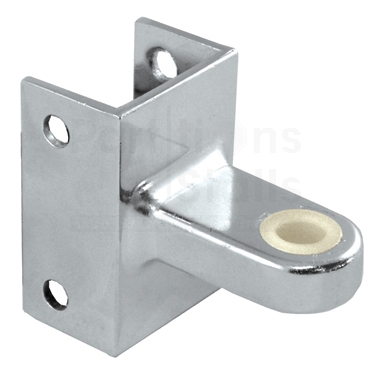

The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin. It is constructed of Zamac die cast metal that is chrome plated and polished. The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacturer part #3630. Ships with mounting screws.
A=1-11/16"
The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin. It is constructed of Zamac die cast metal that is chrome plated and polished. The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacturer part #3630. Ships with mounting screws.
A=1-11/16"
| SKU | 9F0211N |
|---|---|
| Availability | In Stock |
| Manufacturer | Fiat Toilet Partition |
| Description | The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin. It is constructed of Zamac die cast metal that is chrome plated and polished. The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacturer part #3630. Ships with mounting screws. A=1-11/16" |
| Detailed Description | The Fiat Toilet Partition Top Hinge for Laminate Door is for use on an 1-1/4" Square Edged Pilaster Post and uses a 7/16" Pin. It is constructed of Zamac die cast metal that is chrome plated and polished. The hinge U channel measures 2-1/4" high by 1-1/4" deep with a insert depth of 1-5/16". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-11/16" and is 1/2" thick. The lug hole diameter is 19/32". Also known as a Fiat Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacturer part #3630. Ships with mounting screws. A=1-11/16" |
