The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Bobrick B211 heavy duty clothes hook with exposed mounting. This mounts with three countersunk mounting screw holes. The hook and flange are one piece brass casting in satin nickel plated finish to match stainless steel. This hook withstands up to 300lbs downward pull. The diameter is 2-3/4" x 3/7/16" projects out from the wall.

Bobrick B2116 heavy duty clothes hook with concealed mounting. This product has three set screws for theft resistant mounting. The hook and flange are one piece brass casting in satin nickel plated finish to match stainless steel. This hook withstands up to 300lbs downward pull. The diameter is 2-3/4" x 3/7/16" projects out from the wall.

The Hiny Hider Aluminum Slide Bolt Latch 3-1/2" Screws is usually used on Solid Plastic (HDPE) Toilet Partitions.  Base is 4-1/2" tall by 2" wide by 1/8" thick. Latch bolt is 3-1/8" long by 1" wide by 1/4" thick, and has a 1" throw. The latch bolt is 9/16" from the bottom of the base to the under side of the latch bolt. Also known as a Bathroom Stall Aluminum Slide Bolt Latch and Toilet Partition Locks. Clear anodized aluminum construction.  The manufacture part #'s are 4988, 650-4051, 650-8543 and HLSLA.  This latch ships with the mounting screws.

The Hiny Hider Outswing Flat Stop 6" has Clear Anodized aluminum construction. The strike and keeper is 6" tall by 1-5/8" deep by 1/8" thick. The stop is 9/16" deep by 3/4" wide with a rubber insert. The mounting holes are 3" on center. Also known as a Bathroom Stall Flat Backed for Wall Mounting Strike and Keeper. Manufacture part #5898.  Shipped with mounting screws.

The Hiny Hider Inswing Flat Stop 6" has Clear anodized aluminum construction. The strike and keeper is 6" tall by 2-9/16" deep and 3/4" thick on the stop. The material is 1/8" thick. The mounting holes are 3" on center. And the locking slot is 1-1/2" high by 3/8" deep. Also known as a Bathroom Stall Strike and Keeper-Inswing Flat. Manufacture part # 5798.  Shipped with mounting screws.

Bobrick Angle Frame Tilt Mirror, series B-294 18x30 two position tilt mirror. This mirror is Ada approved for commercial restrooms. The outside channel is 3/4"x3/4" and is type 304 stainless steel frame. This mirror has a 7" from top wall and the bottom is mounted to wall. Standard 1/4" plate glass is used.

The Hiny Hider 8" Wrap Around Hinge Set is constructed of clear anodized aluminum and are used on 1" thick door and panels.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Sometimes known as part numbers, 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

The Hiny Hider Aluminum 6" Outswing Keeper Bumper For 1" pilaster post has Clear Anodized aluminum construction. Strike and Keeper is 6" high by 1-15/16" wide. The three mounting screws are 2" on center apart. Also known as a Bathroom Stall Strike and Keeper outswing 1". Used mostly on Solid Plastic (HDPE) Toilet Partitions.  Shipped with mounting screws.

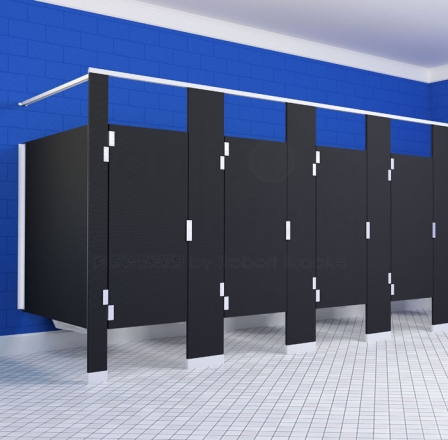

Scranton products solid plastic corner stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastc material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

The Hiny Hider Aluminum 6" Inswing Strike And Keeper For 1" Post has Clear Anodized aluminum construction.  Strike and Keeper is 6" high by 1-15/16" wide. The three mounting screws are 2" on center apart. The slot is 3/8" deep by 1-1/2" high. Also known as a Bathroom Stall Strike and Keeper Inswing 1". Used mostly on Solid Plastic (HDPE) Toilet Partitions. Some manufacture part #'s are 5778, HSISA, and 650-2873.  Shipped with mounting screws.

Introducing American Specialties Fixed Ada Tilt Mirrors. Constructed of plate glass and type 304 stainless steel. Frames are roll formed to make the 1/2” x 1/2” x 1/2” channel, the corners are then mitered and secured with stainless steel rivets, with a #4 satin finish. 15 Year warranty against silver spoilage. The mirror taper from 4" at the top to 1" at the bottom. 4 keyhole slots in back of mirror unit connect to the screws on the wall. Also known as 0535 series mirrors.

Introducing American Specialties Adjustable Ada tilt mirrors. Offers visibility for wheelchair users or returns to upright position. 18 gauge stainless steel frame with plate glass. Tilts full 6 degrees. 15 Year warranty against silver spoilage. Frames are roll formed to make the 1/2” x 1/2” x 1/2” channel, the corners are then mitered and secured with stainless steel rivets, with a #4 satin finish. Stainless steel hinge pivot brackets and hinge attached mirror to wall. Also known as 0600 series mirrors.

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

Scranton products solid plastic Free Standing stalls traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Bobrick fixed position tilt mirrors known as B-293 series. These mirrors are ADA approved and are required for commercial restrooms that provide handicap accessibility. The frame is type 304 stainless steel with beveled edges of the frame hug the mirror. This provides a gapless fit for improved appearance and safety when cleaning. The product is a plate glass. The mirror extends 4" from the wall at the top and tapers down to 1" at the bottom.

The Heavy Duty Vault Hinge Set Stainless Steel, for 3/4" Or 1" thick doors is used by all of the manufactures on their Solid Plastic (HDPE) Restroom dividers. The hinges are designed for 3/4" to 1" thick doors and 3/4" to 1" thick pilaster posts.  They use this style hinge due to the incredible strength they have, for the heavy solid plastic doors.  Also known as a Bathroom Stall Roller Bearing Hinge Set.  Manufacture part # 7813.  Shipped with mounting screws.

Scranton Products solid plastic Ada Alcove partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Alcove stalls include 36" door, 2 pilasters and panel to make up the balance needed.

Scranton Color Chart

Scranton Bathroom Stall Instructions

Scranton Partitions 8" Wrap Around Hinge Insert Replacements. This kit includes the Top and Bottom insert replacements. Design works with other manufactures 8" Wrap Hinges. Known as HHINSERTST by Scranton Products/Comtec/Hiny Hider.

Scranton Products solid plastic between wall partitions traditionally called Hiny Hider Partitions are great for moisture and high traffic commercial buildings. All plastic material is 1" thick, doors are self closing by gravity 8" aluminum hinges or a continuous spring piano hinge, all hardware is standard aluminum brackets. Offering only Classic color collect on the website, all textures please submit drawings for us to quote with color you are looking for. All doors and panels are 55" ht, pilasters are 82" ht mounted to the floor and an overhead aluminum headrail running across the top to support the top of the pilasters. Up to 8 standard stalls total or 7 standard and 1 Ada stall. All Scranton partitions colors take 3 weeks from the time you place the order. To have an Ada stall you must select 1 Ada 24x60, plus 1 standard stall for 1 complete 60x60 ada stall. To have an Ada stall & standard stall, you must select 2 standard stalls and 1 Ada stall 24x60.

Scranton Color Chart

Scranton Bathroom Stall Instructions

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

The Surface Mounted. Square Barrel Hinge Set- Right Hand Out Swing and Left Hand In swing are our most heavy duty hinges.  They are constructed of 1/8" thick stainless steel.  1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7051.  Includes all screws.

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

The Partition Chrome Plated ADA Throw Latch 3-1/2" Screws has chrome plated brass construction.  Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The center to center distance between the mounting screws is 3-1/2".  The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partition Throw Latch. Manufacture part # 5151.  Shipped with mounting screws.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

Wall Guard’s white acrylic units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10455K.

• Unit Size: 31.5”x15.5”x.06”
• White(Antimicrobial Acrylic-PVC Composite)
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Wall Guard’s brushed stainless steel units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10457K.

• Unit Size: 31.5”x15.5”x.06”
• Brushed Stainless Steel
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

"C" Fold or Multi-Fold
Tumbler lock, stainless steel and heavy duty piano hinge
Holds 275 Multi-fold or 200 C-fold towels
11"w x 8"h x 4"d

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.
