Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Grab Bar Installation Kit Concealed Wood Backing, wood screws only.

Grab Bar Installation Kit Exposed for Wood Backing, Wood screws are included.

If your toilet partition or bathroom stall wall bracket is cast with the number 1920 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 2-1/8″ from the back. If features 2 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall X Long “U” Bracket, or X Long “U” Wall Bracket.

Toilet Partition U Bracket Chrome Plated For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the “U” Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or Wall Bracket.

If your toilet partition or bathroom stall wall bracket is cast with the number 1940 on the back, then you have the “U” Wall Bracket for 1-1/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/2″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

Toilet Partition Continuous U Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 54" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2794, 650-1968, 650-1968-54 and U Channel 1 x 54. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

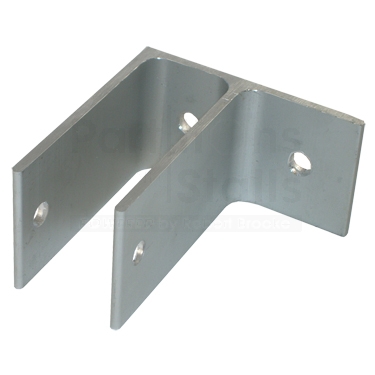

Toilet Partition Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 1-1/2" high by 2-5/8" wide, with mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs are 1" apart, and is designed for 1" thick panels. This bracket is also known as a One Ear Wall Bracket, One Wing Wall Bracket, Toilet Partition One Ear Bracket, or Bathroom Stall One Ear Bracket. The manufacturers part number is 1764. The bracket ships with all the required fasteners.

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Partition "U" Bracket Chrome Plated For 7/8" X 1-1/2" X 1-3/8 . If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2868, and 650-8531-54. These brackets are shipped with all the needed fasteners.

Aluminum Continuous Two Ear Bracket 1/2" X 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2674. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

Toilet Partition Two Ear Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 2-1/2" with the thru hole at 2-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear 1". Manufacture part # 1613.

Ships with mounting screws.

Toilet Partition Bracket Two Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" high by 3-3/4" wide, with mounting screws at 2-3/4" on center. Legs project out at 2-3/4" with the thru hole at 2-1/2" for the back of the base. The legs are 1" apart. Also known as a Bathroom Stall Two Ear Wall Bracket and Toilet Partition Two Wing Wall Bracket. The manufacturers part numbers are 1754, 650-1839, and 40-8445210. Bracket is shipped with all the fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Aluminum One Ear Bracket 1/2" Panel, 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Toilet Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2094. These brackets are shipped with all the needed fasteners.

Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.

Ships with mounting screws.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 3/4" for 3/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 650-4031. These brackets are shipped with all the needed fasteners.

Partition Bracket One Ear Aluminum 1 1/4" Panel, 3" H X 2-3/4" L

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

The Matte Black Hadrian Corner Headrail Kit is designed for mounting Hadrian Matte Black Headrails. Constructed of stainless steel with matte black finish. Sping clip and end cap are made of plastic. This kits includes (2) Wall Brackets, (1) Spring Clip, (1) L Bracket, (1) Headrail Endcap and fasterners. Would be used for partitions that need headrail across front of partitions as well as down one side. Spring clips would be used if you are needing to join two headrails together. L bracket is used to attach Headrail on the side of partitions to back wall. Known as manufacturers part number 675411-BLK.

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 15510.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

Toilet Partition Urinal Screen Bracket Chrome Plated

Constructed of polished chrome plated zamac die cast. The wall mounted base is 7" across with 6" center to center screw holes. The bracket projects out 12" and the two thru holes are 7" on center. The bracket is designed for use on 1" thick panels or urinal screens. The 6 holes are 1/4" diameter. This bracket is sometimes called the 2700 Wing Bracket, 650-6440 Wing Bracket, Urinal Screen Bracket, Urinal Screen Wing Bracket, Bathroom Stall Wing Bracket, or Toilet Partitoin Screen Bracket

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Hadrian Smooth Stainless Steel Panels are available with panel kits that include the brackets for the back wall and the pialster. All smooth surface stainless steel panels ship out in 48 hours and usually take 2-4 days travel. We offer a wide range of sizes, All partition panels are 1/4" less than the size and are 58" height. Partition panels are mounted 12" off the floor.

Hadrian Stainless Steel Color Chart

Hadrian Instructions Stainless Steel

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369
