Generic Plastic Rod fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. This is the replacement hinge pin on there Solid Plastic bottom hinges. Also known as a Bathroom Stall 8" Bottom Repair Kit.  Manufacture part # 8475.

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

The General Top Hinge Pin 3/8" Dia 3-1/4" Long For Laminate is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

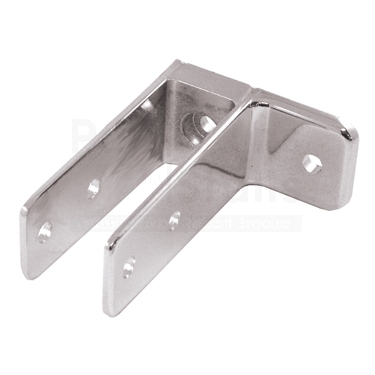

Partition Two Ear Bracket Cast SS 1" Panel 1-1/2" X 2-1/2"

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1753

Shipped with mounting screws.

The Toilet Partition Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High is constructed of Zamac die cast metal and then chrome plated and polished.  Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.  This product is the same as our 9OT285 and 9HA426.   We find this hooks used on Global Partition Corp and Accurate Partition Corp restroom stalls.

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Grab Bar Installation Kit Concealed Wood Backing, wood screws only.

Grab Bar Installation Kit Exposed for Wood Backing, Wood screws are included.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

Toilet Partition Continuous Two Ear Wall Bracket For 3/4" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2089.

Partition Two Ear Urinal Bracket For 1" X 1-1/2" X 3-1/2

This bracket is usually used on Urinal Screens, which are the walls between men's urinals, to hold the partitions to the wall. The bracket is made of a zamac casting that is then chrome plated. The bracket base measures 1-1/2" x 4", with a 3" center to center hole spacing. The bracket projects out 3-1/2", with the mounting holes at 2-1/8" and 3-1/8" from the base. The holes used to mount the bracket to the wall and to the urinal are 1/4" diameter. The 1280 Bracket is sometimes called a Bathroom Stall Bracket, Toilet Partition Bracket, Two Wing Bracket, or Urinal Screen Bracket.

For 1" thick panels

Hadrian Door Kit includes Ada turn latches with hinges that wrap around the edge of the pilaster type. Chrome plated parts include wrap hinges, keeper bumper, ada turn latch, cover plate, pintle, nylon cam, double door pulls, coat hook & bumper, top pin and all security screws included. For Hadrian partitions in steel or stainless steel partitions only. This product manufacture number is 601025, replaces 601005.

The Accurate Partition Top and Bottom Hinge kit is for 1-1/4" round edge pilasters or posts.  These are used on Accurate Partition Corp's, metal doors sold before January 2013.  The kit includes the top and bottom hinges, pins and security screws.  Hinges are constructed of die cast metal that is then chrome plated and polished.  The manufactures part numbers are 50-8517300, 50-2517200 and 50-398660.   A=1-1/2". There is no exact hinge replacement available.

**Not Available anymore, see link for new doors

https://www.partitionsandstalls.com/accurate-partition-steel-doors.html

https://www.partitionsandstalls.com/partition-hardware/hinges/surface-mounted-hinge-sets.html

https://www.partitionsandstalls.com/partition-hardware/hinges/continuous-piano-hinges.html

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous "H" (Alcove) Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Channel is 2-1/2" high by 1+" wide by 54" long, for use with 1" panels. Thru holes are 1-1/2" on center. Holes are 1/4" diameter. Thru holes are every 13" or so. Sometimes known as Bathroom Stall Continuous Alcove Bracket or Toilet Partiton Alcove Bracket. The manufacturers part numbers are 2858, and 650-1862-54. These brackets are shipped with all the needed fasteners.

Partition Door Integral Hinge Set Top & Bottom. The bottom pin is 4-7/8" high & the top pin 3" X 1/2" high. Most manufactures used this integral hinge pin set for solid plastic partitions. The Pilasters next to the door are cut out for this door to fit in it. The hinge pins break often due to swinging on the door which causes the pin to bend and breaks the door. Manufacture part #7005.

The bracket is a zamac die cast material that is then polished chrome plated. The base measures 1-1/2" wide x 2-21/32" long with two mounting holes 1-1/2" on centers. The bracket projects out 3-1/2" with the legs 1" apart, it is used for mounting a 1" thick panel. The mounting holes are located 3-1/8" from the base of the the bracket, and all the holes are 1/4" diameter. The bracket is sometimes called a Toilet Partition One Ear Bracket, Bathroom Stall One Ear Bracket, 1270 wall bracket, 650-6407 wall bracket or sometimes One Wing Bracket.

Single Hook Chrome Plated Projects 1-3/4", also known as UC10.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Hadrian partition steel stall Panels are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom panels come with standard chrome plated panel kits which includes two each u brackets and two ear brackets. Stainless steel hardware is available as an option. The panel widths are 14"-76" wide are available. All panels are 1/2" narrower than panel size and are 58" in height.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Used with ADA Grab Bars For concealed mounting to the flange and set screw.

Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.

Ships with mounting screws.

Plastic Rod works with most manufactures like Global, Hadrian, Accurate Toilet Partitions. This is the replacement pin used on Solid Plastic restroom stall top hinges. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. Also known as a Bathroom Stall 8" Top Repair Kit.  Manufacture part # 8465.

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

Hadrian partition steel pilasters are available with many colors to choose from and sizes. Quick ship colors will ship in 48-72 hours. Usually one week delivery time for those colors. There is a 3 week lead time for non stock colors. The color chart shows an American flag which indicates a quickship color. All bathroom pilasters come with a stainless steel shoe and floor hardware. Pilaster widths start out at 3"-23". The pilasters are 82" height with a u shape at the top for a head rail to fit into.

Hadrian Color Chart

Hadrian Instructions Powder Coated

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-13/16" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. The slot is for the concealed latch is 7/8" high by 7/16" deep. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5240

Shipped with mounting screws.

Partition Keeper Flat Stop 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" tall by 2-9/16" deep and is 1/8" thick. The stop projects out 3/4" and has a rubber insert. The mounting holes are 1-1/2" on center. Slots are 1/4" deep by 13/16" high. Also known as a Bathroom Stall Strike and Keeper - Inswing Flat. Flat backed for wall mounting. Manufacture part # 5283.

Shipped with mounting screws.

Ordering online all powder coated metal pilasters Manufactured by Global Toilet Partitions. All toilet partition pilaster's ship in 48-72 hours plus 2-4 days travel. Includes Floor mount hardware and stainless steel shoes available for the following widths - 2"-24". All Pilaster height's are 84" x 1-1/4" thick..

Global Partitions Color Chart

Partition "U" Bracket Chrome Plated For 7/8" X 1-1/2" X 1-3/8 . If your toilet partition or bathroom stall wall bracket is cast with the number 1900 on the back, then you have the “U” Wall Bracket for 7/8″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-5/32″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Toilet Partition One Ear Wall Bracket For 1" Panel,Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1769.

Shipped with screws

Curtain Hook Head Rail Type For 1/4" Slot in the aluminum headrail to slide back and forth. This item is anodized aluminum construction.

2" ht x 7/16" head

Toilet Partition "U" Wall Bracket For 7/8" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-1/8". Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1909.

Shipped with screws

Partition Keeper Bumper Outswing 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5263.

Shipped with mounting screws.

Hadrian Partitions Aluminum Headrail for 1" thick material Type A used on overhead braced floor mounted Solid Plastic Partitions. The headrail goes over the top of the pilaster which is 1" for the headrail to fit over the top of the pilaster. The slot is for 1/4" curtain hook. The headrail bolts to the pilaster for stability at the top. Overall dimension is 1-1/4"x1-3/4"ht. Also known as part number 620060, 620074.

Also known as Part# 9HR60SP, 9HR74SP and 9HR96SP.

The Toilet Partition Continuous Hinge Stainless Steel, 54", 1/4" Pin is 54" long by 3" wide with a pin diameter of 1/4".  They are constructed of 14 gauge (.075" thick) stainless steel.  Holes are spaced every 13" and are 9/32" diameter and has 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs.Cam features Zero Degree Closing. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. This piece features a cam, which makes it self closing.  Manufacture part # 130209,7599, 125319, 650-9402. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside. This hinge is known as 7599.
