The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

The General Toilet Partitions Keeper Bumper For 1-1/4" Outswing Sq Edge is for use on square edged 1-1/4" thick pilaster posts.  The keeper is constructed of Zamac die casting that is polished chrome plated. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for out swinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5210.  Shipped with mounting screws.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Curtain Hook Head Rail Type For 1/4" Slot in the aluminum headrail to slide back and forth. This item is anodized aluminum construction.

2" ht x 7/16" head

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

The Coat Hook & Bumper Cast SS 2-3/4" Projection x 2-1/4" High is mainly used on Hadrian Manufacturing Partitions.  The hook is constructed of cast stainless steel and measures 2-1/4" high with a projection fo 2-3/4".  The manufacture part number is 601900-700.

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Bobrick B-770/B-778 DuraDry series hand dryers have two options: high gloss white epoxy finish with black plastic trim or a chrome finish. Choices are 115 volt or 230 volt.

Partition Anti-Grip Headrail 1-1/4" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

The General Top Hinge For 1-1/4" Square Edge Pilaster is for use on 1-1/4" square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a Fiat Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

Toilet Partition Two Ear Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-11/16" with the mounting screws are 2-15/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1759.

Shipped with screws

Alcove One Ear Bracket Panel Kit for 1/4" Offset. This kit is used for panel to pilaster 1/4" offset and for 1" panel to wall bracket cast stainless steel plated. Security screws included. Also known as 615363.

Curtain Hook For 1 1/4" Rod- 2-3/4" High

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 36′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 36′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 72′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Toilet Partition two ear pilaster bracket kit for 1-1/4" thick material. This brackets base is 1-1/2″ wide x 4″ long with 3″ center to center hole spacing and comes out from the wall 2-1/2". The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. Brackets are Included with security screws for installation. Also known as 615220.

Cast stainless steel outswing door kit for square edge doors and posts. For 1" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21003.

The Partition Bottom Hinge Assembly Cast Stainless Steel is for use on 1" Door and 1-1/4" thick square edged Pilaster Posts.  They are constructed of cast stainless steel.  Set includes bottom hinge, pin, door insert and mounting screws. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Cast Stainless Steel Partition Door Stop

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5173.

Shipped with mounting screws.

Toilet partition square edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1" thick by 3" high. This size pilaster post shoe is not split on either end. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with pilaster mounting.

The Surface Mount Door Hinge Set LH In/ RH Out is for use on Right Hand Out Swing and Left Hand In Swinging doors. They are self closing. The hinges are constructed on stamped stainless steel that is then polished. The package includes the top and bottom hinges and the mounting screws. Hole spacing right to left 2-1/4", up and down 1-1/2", overall 3" width by 2-1/2" height.  Also known as a toilet partition or bathroom stall gravity surface hinge set. Manufacture part number is 7083.

VMAX V2 hand dryer’s offer cutting edge technology, aesthetic appeal and HEPA Filtration for restroom facilities. Designed so users can place handing into drying cavity unlike traditional hand dryers that require users to place hand under dryer. Features maintenance alerts for when filter needs to be changed and when water reservoir needs emptied. High performance brushless motors allow for quiet operations and average 10-12 second hand dryer times. Known as World Dryers part number V-649A.

• ABS Plastic Silver Finish
• Voltage: 110-120v(Min. 15 AMP Recommended)
• Brushless DC Motor
• HEPA Filter, Captures 99.97% of particles, 0.3 or larger
• Intelligent LED Indicator Display, Signals when filter needs changing and when water reservoir needs to be emptied.
• 10-12 Second Dry time, Automatic Operation Infrared Sensor
• Quiet Operating, Low Sound Level
• ADA Complaint suitable for walkways and pathways
• Wider hand dryer cavity opening creates a comfortable user experience without touching sides of dryer.
• Utilizes Antimicrobial technology on treated surfaces to protect from bacteria, mold and fungus growth that can cause staining, odors and product deterioration.
• Touchless operation offers a More Hygienic Experience
• Features dedicated reservoir to collect residual water from drying hands. Designed to help prevent water build up and damage to unit and prevent wet floor hazards.
• Unit Size: 13’x26.25”x9.25”
• Replacement HEPA Filter with Odor Neutralizing Tablet Available (93-10385)
• 5 yr Limited Warranty

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5973.

Shipped with screws for mounting.

Toilet Partition Angle Bracket Chrome Plated 1 3/4" X 1 3/4"

Constructed of stainless polished finish with chrome plated zamac die casting. Base is 1-3/4" x 1-3/8", projects out 1-3/4". Two screw holes are 1/4" diameter, and are located 1-1/4" from opposing face. Sometimes called Bathroom Stall Angle Bracket. Sold individually, and shipped with required screws. Manufacturer part number 2015.

Roval Automatic Foam Soap or Foam Hand Sanitizer Dispenser, 20365 A foam drop is dispensed out of the nozzle on unit bottom each time its battery-operated sensor is activated. Capacity: 34 oz. (1000 ml) of liquid foaming soaps within a wide range of viscosity. Overall Size 5 1/2” x 10 7/8” x 4” (140 x 276 x 102 mm) projection. Soap Requirements: Proper usage of this dispenser requires, that only soap/lotion/foaming hand sanitizer within the following range for viscosity and pH may be used.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Right Hand Out Swing and  Left Hand Inswinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7123.  Mounting screws are included.

Concealed Partition Latch Keeper Bumper 1" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5733.

Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

ASI Headrail is designed for use with Global and Accurate Partitions. This headrail was introduced in May of 2023 and offers a lower profile than the previous design which is no longer available. The ASI Headrail comes in three headrail thickness options: 3/4", 1" and 1-1/4". Options for length are 65" or 98" which can be cut down to size needed. Being constructed of extruded mluminum, allows for the headrail to be durable and easily customizable. Headrails are use to help stability restroom toilet partitions and give a finished look. Installed a top of pilasters or also used to connect a back wall to a pilaster. Often used in conjuction with ASI Headrail Retrun Kit (9A8448).

Known as Manufacturer Part# 8440651, 8440981, 8460651, 8460981, 8450651 and 8450981.

Also known as Part# 9A846534, 9A849834, 9A84651, 9A84981, 9A8465114, and 9A8498114.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

The Knickerbocker Partition Top Hinge For 1-1/4" Sq Edge is designed for use on square edged pilaster posts that are 1-1/4" thick.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 3860.  A=1-11/16".

Toilet Partition Pilaster Anchor 'L' Bracket For 1-1/8"-1-1/4" Thick Pilaster Posts

Zinc plated brackets and screws. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. Package includes all needed screws and brackets.

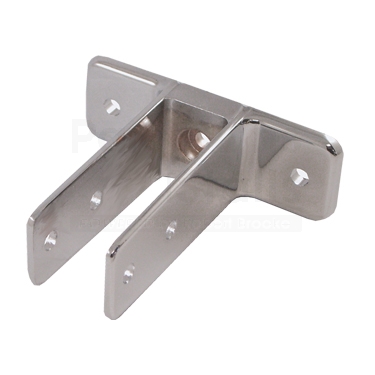

Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2"

This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partition Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

This bracket is for a 1-1/4" thick panel
