The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Right Hand Inswing, Left Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7659.  Shipped with all the fasteners.

Rh Inswing or Lh Outswing See Diagram

Toilet Partition Continuous Hinge 54" With 20 Degree Cam Close Stainless Steel. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Construction, 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 54" long. Holes are spaced every 13" and are 9/32" diameter and 5 sets of holes. The hinge is self closing by a cam action, which is made possible by angle cuts on the continuous hinge leafs. Cam features 20 Degree Closing for ADA Doors. Can be raised up 3/8" for emergency entry. This hinge is also known as a Bathroom Stall Full Length Continuous Hinge. This hinge is non handed. Manufacture part # 130219, 7598, 125319, 650-9402.

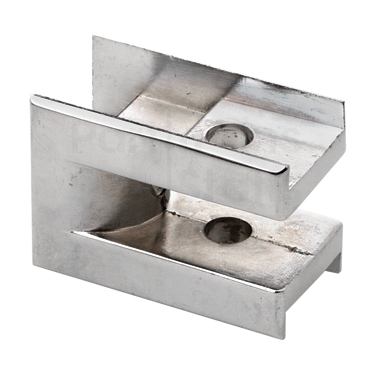

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-13/16" deep. The strike is 1/2" thick with rubber insert. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5973.

Shipped with screws for mounting.

The Partition Keeper Bumper 1-1/4" Round Edge is constructed of Zamac die cast metal that is then chrome plated and polished.  Keeper is 1-1/4" tall by 2-3/8" wide by 2-9/16" deep. The strike is a17/32" thick and the slot is 1/4" deep. The opening to mount it on the round edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing 1-1/4". Manufacture part # 5580.  Shipped with screws for mounting.

Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

The Metpar Toilet Partitions Top Hinge is for use on there 1-1/4" thick square edged pilaster posts.  The outside dimensions of the U mounting channel are 1-1/4" deep by 2-1/4" high by 1-3/8" depth with a hole spacing of 1-1/2". The hinge lug projects out 1-1/2" by 1/2" thick with a bushing diameter of 3/8". They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Metpar Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3930.  Shipped with mounting screws.  A=1-9/16".

Concealed Partition Latch Keeper Bumper 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the square edge pilaster or post is 1-1/4" by 1-1/4" Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5963.

Shipped with screws for mounting.

The One Ear Hinged Bracket , 3" by  2-1/2" by 1" is constructed of 16 ga (.050") thick for the hinge and 14 ga (.075") thick on the bracket, stainless steel.  The one ear hinged bracket is Riveted and welded together. Bracket is 3" high x 2-1/2" deep for a 1" panel. This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111359.

The All American Toilet Partition Bottom Hinge is for plastic laminate restroom stalls.  The hinge is constructed of a die cast metal that is then chrome plated and polished.  The part is for mounting on a  square edged 1-1/4" thick pilaster post.  The manufacture part number is 103PL.

The Hadrian Partition Wrap Around Top Hinge is for use on 1-1/4" round edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number is 601350.

The All American Toilet Partition Top Hinge is used on plastic laminate restroom stalls.  The hinges mounts on an 1-1/4" square edged pilaster post.  The part is constructed of die cast metal that is then chrome plated and polished.  The manufacture part number is 102PL.

Toilet partition square edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1" thick by 3" high. This size pilaster post shoe is not split on either end. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with pilaster mounting.

The Partition Keeper Bumper- Outswing for 1-1/4" Sq Edge is for out swinging doors and square edged pilaster posts of 1-1/4" thickness.  The Keeper is constructed of die cast metal that is then chrome plated.  Used on many toilet partition manufacturers partitions, the manufactures part # is 40-8512354.

The Continuous Hinge Stainless Steel 57-1/2" long, is for use on Left Hand Inswing, Right Outswing restroom stall doors. The hinge is constructed of 16 gauge (.060" thick) stainless steel with 4 springs. It measures 3" wide when laid flat x 57-1/2" long with a 1/8" diameter hinge pin. Mounting screws are located every 11" or so. Can be raise up 3/8" for emergency entrance and springs allow the door to seft close. Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7669.  Shipped with all the fasteners.

Lh Inswing or Rh Outswing See Diagram

Bobrick B-287 folding utility shelf is wall or partition mounted. The material is type 304 stainless steel in satin finish. The shelf pulls down and stays down with up to 100lbs weight. The unit will return to the up position when not in use. The shelf is 14-1/2" in length by 5-3/4" wide.

The Mills Toilet Partitions Top Bottom Hinge Set is for use on there 1-1/4" thick round edged pilaster posts.  The kit includes the top and bottom hinges along with the hinge pins and the security screws.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacture part number is HDWT-Z01.

The Hadrian Toilet Partition Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts.  This hinge is considered a surface mounted hinge because is mounts on the surface of the pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The 9HH450, Toggle and Screw are not included with the hinge, and would have to be ordered separately.  The manufacture part number on this piece is 601510 and 601500.

Toilet Partition two ear pilaster bracket kit for 1-1/4" thick material. This brackets base is 1-1/2″ wide x 4″ long with 3″ center to center hole spacing and comes out from the wall 2-1/2". The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. Brackets are Included with security screws for installation. Also known as 615220.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

Toilet Partition Bracket One Ear For 1-1/4" Panel Aluminum

Constructed of extruded anodized aluminum. The base is 2-5/8" wide x 1-1/2" high, with the two mounting screws 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The distance between the legs is 1-1/4". It is designed for 1-1/4" thick panels. The 4 screw holes are 1/4" diameter. This bracket is also known as a One Ear Wall Bracket, 1844 One Ear Wall Bracket, Toilet Partitoin One Ear Bracket, or Bathroom Stall One Ear Bracket. The bracket is shipped with all the mounting screws.

Partition Anti-Grip Headrail 1-1/4" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-11/32" by 65" long. The part that fits on top of the pilaster is 1-1/4" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80052.

Also know as Part# 9THS621-1/4, 9THSSXX, and 9THLXX.

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

 Continuous Hinge Stainless Steel, is 71-1/2" long by 3" wide, and is for use on Right Inswing, Left Outswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel and the screws are placed every 11" or so.  The hinge pin is 1/8" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. The Bathroom Stall hinge can be raised up 3/8" for emergency entry. See "More Views" for handing information.  Manufacture part # 7759

The Sanymetal Partitions Top Hinge Door Escutcheon For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.   The outside measurements of this part is 1-3/16" wide by 2-96/32" long by 1-5/8" high.  The hole through the middle is 3/8" diameter.  The manufactures part number is 2450.

Curtain Hook For 1 1/4" Rod- 2-3/4" High

If your toilet partition (bathroom stall) wall bracket is stamped 1830, then chances are you have the Two Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket, they can be ordered on our website.

The Bobrick Toilet Partition Top Hinge is constructed of Zamac die cast metal that is then chrome plated and polished.  The hinge is designed for use on 1" thick square edged pilaster posts.  he hinge mounting U channel measures 2-1/8" high by 1" deep with an insert depth of 1". The hole spacing is 1-1/2" on centers. The hinge lug projects out 1-9/16" by 1/2" thick with a 1/2" bushing diameter. Also known as a Bobrick Bathroom Stall Pivot Hinge - Top 1". Manufacture part # 3760 and 650-8840.  Ships with mounting screws.

Two Ear Urinal Bracket For 1-1/4" X 1-1/2" X 3-1/2"

This bracket is constructed of zamac die cast material that is then polished chrome plated. The base is 1-1/2" wide x 4" long, with two screws 3" on center. The legs project out 3-1/2" with the thru screws at 3-1/8" and 2-1/8" from the base. The 6 holes are 1/4" diameter. This bracket is also known as a Toilet Partition Bracket, Bathroom Stall Bracket, Two Ear Extra Long Bracket, Two Wing Bracket, Urinal Screen Bracket X-Long. The manufacturers part # are 1330, and 650-6449. The bracket includes all the fasteners.

This bracket is for a 1-1/4" thick panel

One Ear Pilaster Bracket Kit for 1" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615253.

Partition One Ear Wall Bracket For 1-1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 2-3/4" with 1-1/2" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall One Ear Wall Bracket, or One Ear 1-1/4". Manufacture part # 1843

Shipped with mounting screws.

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.
