Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

The Continuous Hinge Stainless Steel, 54"  is for use on Right Hand Outswing/ Left Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Right Hand Outswing, and Left Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7969.

Turbo Dri High Speed Dryer American Specialties introduces the Turbo Dri High Speed Dryer 0197 model. Quick drying — less than 12 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel. Overall Size 8 1/16" W x 11 19/64" H x 7 5/64" D.

Bobrick B-2888 multi roll toilet tissue dispenser for surface mounted only. Satin finish in stainless steel dispensing mechanism. The door is equipped with a tumbler lock and holds up to two rolls 5-1/4" wide. The extra roll at the top will drop in place when the bottom roll is out. Theft resistant heavy duty spindles. The unit is 6-1/16" w x 11" ht x 5-15/16" deep.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

The Hiny Hider 8" ADA Hinge Set includes 3 hinges, one for the top, bottom and intermediate locations.  They constructed of clear anodized aluminum and are usually for 1" thick panels and 1" thick doors.   This hinge set meets ADA Compliance.  Used by every Bathroom Toilet Stall manufacture on Solid Plastic Toilet Partitions Doors.  Manufacturer part #'s 7978, 7988, 8974, and 8984. These hinges are reversible by taking the 3 pieces apart and reconfiguring the opposite swing.

Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Euro Style Support Brace for 3/4" thickness material. Available in 4"-4-1/2", 6-6-1/2" and 9-9-1/2" height, all adjustable by a 1/2". Heavy duty industrial #304 stainless steel material. References part numbers are 189003, 189013, 189023.

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

Shower Room Pedestal 8" x 16-1/4"ht Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Putty color.

"C" Fold or Multi-Fold
Heavy duty steel back with impart resistant plastic front
Holds 540 multi-fold or 350 C-fold towels
11"w x 15"h x 4" d

"C" Fold or Multi-Fold
Heavy duty steel back with impart resistant white plastic front
Holds 540 multi-fold or 350 C-fold towels
11"w x 15"h x 4" d

ASI Matte Black turbo pro auto high speed hand dryer is ADA Compliant and is surface mounted. Features HEPA filter, air temperature controls, air speed controls and also a 5 year warranty. Some other features include energy efficient, quiet, and easy to maintain. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

8-5/8″ x 13-9/16″ x 4″ (219 x 345 x 101 mm)

Decibel Level

68 to 73.8 dB-A @ 2m

Electric

Different models for operating voltage
110~120 V (50/60 Hz),
220~240 V (50/60 Hz)

ON/ OFF Heat Option
Nichrome Wire
325 – 500 W

Motor: .67HP, 16 – 29 kRPM
Brush type, dual ball bearings

Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

Roval Paper Towel Dispenser, 20210 Dispenses 400 C-fold or 525 multi-fold paper towels. Fabricated of 22 gauge type 304 stainless steel with satin finish. Fitted with tumbler lock and heavy-duty stainless steel staked piano hinge.
ASI spec sheet

The Partition Surface Mounted SS Hinge Set are for use on  Right Hand Inswing and Left Hand Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand outswing door, or right hand inswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7093.  Shipped with mounting screws.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

Shower Room Pedestal Dove Gray Color 8" x 16-1/4" Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Dove Gray color.

The Surface Mount Door Hinge Set RH In/ LH Out is for use on Right Hand In Swing and Left Hand Out Swinging doors.  They are self closing.  The hinges are constructed on stamped stainless steel that is then polished.  The package includes the top and bottom hinges and the mounting screws.  Hole spacing right to left 2-1/4", up and down 1-1/2",  overall 3" width by 2-1/2"height.  Also known as a toilet partition or bathroom stall gravity surface hinge set.  Manufacture part number is 7073.

Hadrain Partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are desgned for 1" thick material only. You will need to choose In or Out swing when ordering. Can be used as right or left hand as hinges are field reversible. To hand handing, this can be done by taking the 3 pieces apart and reconfiguring the opposite swing. See Hadrians part numbers/ known as numbers listed below. Also used with Comtec-Hiny Hiders-Scranton.

Inswing: 261005 and 261025

Outswing: 621006 and 261026

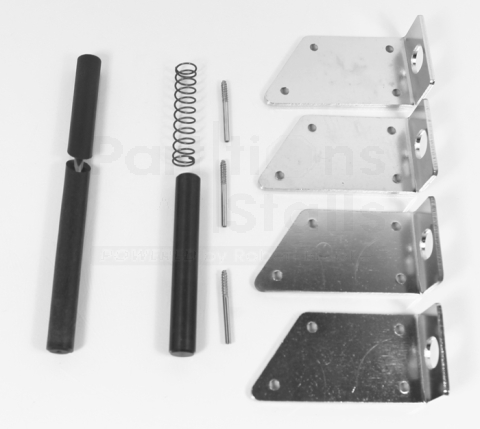

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

ASI Matte Black paper towel dispenser multi/c-fold is surface mounted and is fabricated of 22 guage stainless steel. Dispenses 400 c-fold or 525 multi fold paper towels without adapters or adjustments. Features a tumbler lock(key included), refill viewing slot on sides and heavy duty stainless steel piano hinge. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

11-1/8″ x 14-5/8″ x 4″ (282 x 371 x 101 mm)

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

The Partition Surface Mounted SS Hinge Set are for use on  Left Hand Inswing and Right Out Swinging Doors.  One of the better reasons to use this hinge is the fact that they have a stainless steel pin in them.  Nearly all of the Gravity Hinges out there use plastic pins.  Stainless Steel construction, 1/8" thick. Outside dimensions of the hinge are 3-5/16" wide by 2-7/8" high. The screw spacing is 2-5/16" wide by 1-1/2" high. The mounting holes are 1/4" diameter. For use on a left hand inswing door, or right hand outswing door. See "More Views" for the handing diagram. Also known as a Bathroom Stall Gravity Hinge Set, or Toilet Partition Surface Mounted Hinge Set. Manufacture part # 7103.  Shipped with mounting screws.

Nova 1 Plug-In provides a 3 prong 6’ cord to give consumers some flexibility on placement of unit. Designed for 110-120v ground outlets with 3 prongs and with the unit measuring 9”x9.7”x4.2”, it makes this a compact and easy unit to install. Known as World Dryers part number WHD-883.

• Economic/Entry Level Dryer
• Automatic Operation Infrared Sensor
• Surface Mounted
• Low Sound Level
• Compact Design
• Durable Die Cast Aluminum with White Epoxy Enamel Finish
• 110-120v
• Provided with 6’ cord.
• 2 yr Limited Warranty

The Stainless Steel Folding Utility Shelf has 14-5/8" projection by 5-13/16" width.  An internal heavy duty spring in the hinging mechanism returns the shelf to the up right position when not in use.  The shelf is fabricated of 18 gauge stainless steel with a #4 satin or brushed finish.  The leading edges are radiused  and deburred to prevent injury.  The support bracket is fabricated of 14 gauge stainless steel, and are also radiused and deburred to prevent injury.

The Partition Hinge Assembly Cast SS is for use on 1" thick  Doors  and 1" squared edged pilaster Posts.  The kit includes top and bottom hinges, pintle, pin, inserts and all of the mounting screws.  They are constructed of cast stainless steel that is then brushed to the proper finish.  Also known as a Bathroom Stall Pivot Hinge Set. Manufacture part # 63153.

The Accurate Partition Door Kit Old Style has been used from January 2013 to September 2021.  The door kit is replacement hardware for an Accurate Partitions Corp. metal door.  The kit includes the top and bottom hinges, nylon inserts, coat hook, keeper bumper, concealed latch and security screws.  They are constructed of die cast Stainless steel. The manufactures part number is 40-8261505.

The Top Hinge Assembly Cast SS is for use on a Square Edged 1-1/4" thick Pilaster Post and 7/8" thick Door.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The kit includes top hinge, pintle, pin, inserts and mounting screws.  Also known as a Bathroom Stall Top Pivot Hinge Set. Manufacture part # 63023.

The Surface Mount Door Hinge Set LH In/ RH Out is for use on Right Hand Out Swing and Left Hand In Swinging doors. They are self closing. The hinges are constructed on stamped stainless steel that is then polished. The package includes the top and bottom hinges and the mounting screws. Hole spacing right to left 2-1/4", up and down 1-1/2", overall 3" width by 2-1/2" height.  Also known as a toilet partition or bathroom stall gravity surface hinge set. Manufacture part number is 7083.
