The Flush Metal Toilet Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

Ordering online all plastic laminate doors are Manufactured by Global partitions. All toilet partitions ship in 48 hours, 2-4 days travel. Plastic laminate doors include hinges for 1" square edge pilaster and bumper keeper and surface mount slide bolt latch. Available for the following door opening widths 22-36 inch (actual door size is 3/8" narrower that the opening).

Global Plastic Laminate color chart

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

The All American Toilet Partitions Nylon Cam is used on metal and plastic laminate hinges.

The Metpar Toilet Partition Pintle is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175. Shipped with nut and lock washer.

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

The Knickerbocker Toilet Partition Top Hinge Pin is used on there metal restroom stalls.  The pin is constructed of plastic and measures 1/4" diameter by 2-3/4" long.  The manufactures part number is 216.

The Fiat Partition Keeper Bumper Inswing is for use on 1-1/4" thick square edged pilaster posts.  It is constructed of Zamac die cast metal that is then chrome plated and polished.  The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. The latch bolt slot is 1-9/16" high by 5/16" deep. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for inswinging doors. Also known as a Bathroom Stall Strike and Keeper-Inswing 1-1/4". Manufacture part # 5110.  Shipped with mounting screws.

The All American Toilet Partition Bottom Door Insert is for use on there plastic laminate restroom stalls.  The insert has a polished chrome finish.

The Mills Toilet Partitions Keeper Bumper Concealed is for use on 1-1/4" thick round edged pilaster posts.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. They are constructed of Zamac die cast metal that is then chrome plated and polished.  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5590.  Shipped with mounting screws.

The Flush Metal Partition Latch Housing is constructed of Zamac die cast metal.  The latch body measures 3-3/8" deep by 1-15/16" high. The face plate is 3-1/4" high. The latch bolt is 11/32" diameter and has a travel of 7/16". Also known as a Flush Metal Bathroom Stall Concealed Latch Housing. Manufacture part # 6606. This part has a 1-1/4" diameter.

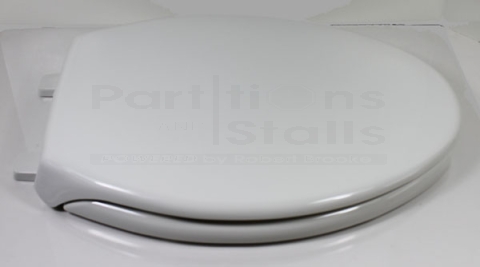

Toilet Seat White Regular 16-5/8" x 14-1/4" no cover white

Toilet Seat Black Regular 16-5/8"" X 14-1/4" wide. No cover.

Stamped SS Continuous One Ear Bracket 1/2" x 2-1/2" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 57" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2099.

The Toilet Partition Door Stop 2" High is constructed of chrome plated Zamac die cast. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4120.

The Toilet Partition Keeper- Outswing For 1" Square Edge is designed for out swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562308.

The Toilet Partition Keeper- Inswing For 1" Square Edge is designed for in swinging doors with a 1" thick square edged pilaster post.  It is constructed of cast stainless steel.  The manufactures part number is 40-8562307.

The Knickerbocker Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated and polished.  The wrap around dimension is 1-1/4" wide by 1-3/4" high and 11-16" deep. The hole spacing is 1-1/8" on center. The lug projects out 1-3/8" and is 1/2" thick with a 1/4" bushing diameter. Also known as a Bathroom Stall Pivot Hinge - Top 1-1/4". Manufacture part # 3910.  A=1-11/16".

The All American Toilet Partition Top Hinge 1" Door Insert is for plastic laminate restroom stalls.

The Ampco Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal and then chrome plated.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Fiat Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

Stamped SS Continuous Two Ear Bracket 1/2" X 2-1/2" X 41". 18 gauge (.05" thick) stamped stainless steel construction. Base is 3" x 41" long. Mounting holes are 2-3/8" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13". Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2059.

The Ampco Toilet Partition Top Hinge Pin For Laminate is constructed fo knurled steel.  This pin is used on there plastic laminate restroom stalls.   Hinge pin is 3-1/4" long by 1/4" diameter. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99585.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

The Sanymetal Toilet Partition Toggle & Screw is used on there surface mounted hinges 9S7770 and 9S7360.  Hadrian uses a the same item.

The Sanymetal Toilet Partition Keeper 2" Between Screws is constructed of Zamac die cast metal that is then chrome plated and polished.   Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.  Shipped with mounting screws.

Toilet Seat White Elongated W/Cover 18-1/2" x 14-1/4" with cover white

Toilet Seat Black Elongated N/Cover 18-1/2" X 14-1/4" wide . Black No cover.

The Hadrian Toilet Partition Pintle has a 1/2" diameter.  This is one of the components that makes the door self closing.  The manufactures part number is 601600.

Handicapped Toilet Seat 2" Lift, Elong. White 18-1/2" X 14-1/4" wide x 2" lift. No cover.

The Knickerbocker Toilet Partition Bottom Cam is for use on there plastic laminate of Formica restroom stalls.  The manufactures part number is 751.

The American Sanitary Toilet Partition Top Hinge is constructed of Zamac die cast metal that is chrome plated then polished.  The hinge is designed for use on an 1-1/4" thick pilaster post.  The hinge measures 2-1/4" high by 1-1/4" wide. The U channel is 2-1/4" by 1-1/4" by 1" deep. The lug projects out 1-5/8" by 1/2" thick with a 3/8" diameter bushing. Also known as a American Sanitary Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3790.  A=1-5/8"

The Ampco Toilet Partition Pintle is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175. Shipped with nut and lock washer.

The Global Toilet Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Handicapped Toilet Seat 3" Lift, Elong, White 18-1/2" X 14-1/4" wide x 3" lift. No cover.
