Accurate Commercial Partition Alcove Handicap Stalls in Powder Coated Steel overhead braced floor mounted compartments. The alcove stall includes 36" door, 2 pilasters and panel to make up the distance. Accurate Doors can be either in or out swing. All partition hardware included with standard chrome hardware for the door kits and brackets. All toilet partitions ship in 48-72 hours plus 2-4 days travel. New Style slide latch with indicator in chrome plated version included. New Door style are Integrated for no gap off doors.

Accurate Steel Color chart

Accurate Steel Instructions

one way screw #10 x 5/8" long, 11/32" head x 3/16" tread. Use a flat head screw driver to install.

Chrome plated outswing door kit for square edge doors and posts. For 1" doors and 1" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 21300.

Bobrick B211 heavy duty clothes hook with exposed mounting. This mounts with three countersunk mounting screw holes. The hook and flange are one piece brass casting in satin nickel plated finish to match stainless steel. This hook withstands up to 300lbs downward pull. The diameter is 2-3/4" x 3/7/16" projects out from the wall.

Ordering Online All Powder Coated Metal 10' Post & Panel Urinal Screen Manufactured by Global Partitions, see color chart below. For other factory colors please call for pricing. All toilet partition's ship in 48-72 hours plus 2-4 days travel. 10' Post/Panel Urinal Screen 1-3/4" square post up to 120" maximum with 58" high panel. Specify - and Part # 9SFCS-XX (where XX is width from the front of post to the wall). Width of screen 16"-76" x 58"ht, All standard chrome plated hardware included.

Global Partitions Color Chart

Partition Door Kit Inswing 1" Door & Post Cast Stainless Steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 11303.

Tubing is 1″ diameter x 20 gauge with a satin finish. 48" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Toilet partition pilaster shoes is designed to anchor directly to floor. Shoe is constructed of 20 gauge 304 stainless steel that is stamped and welded in a satin finish with square edges. Each shoe comes with fasteners and installation torx bit. Measurement is 3" tall and is designed to hold a pilaster that is 1" wide. Partition Pilaster will sit inside the shoe. This shoe is typically used with solid plastic partitions but could be used with different types of partition materials.

ASI Matte Black round 10" roll toilet tissue dispenser is surfaced mounted. This unit accepts one roll up to 10" (254mm) in diameter of 1-5/8" or 2-1/4"(41mm or 57mm) core diameter. Features a viewing slot and tumbler lock on front. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

10-5/8” x 10-5/8” x 4-1/2” (270 x 270 x 114 mm)

ASI Matte Black sanitary waste disposal is equipped with a top lid. This unit comes with 2 pre-cut holes on back for easy wall mounting. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

7-7/8″ x 9-11/16″ x 4″ (200 x 246 x 102 mm)

Ordering online all global partitions in powder coated panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All hardware chrome plated included. Available in 16"- 76". Actual width is 1/2" less. (58" Height). Panels are 1" thick.

Global Partitions Color Chart

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

The Knickerbocker Partition Door Latch Mechanism Kit is used on there concealed latches.  The bar measures 11/32" diameter by 3-7/16" long.  The Fulcrum measures 1-11/32" by 1-11/32 by 5/16" thick.  This part is also known as 8836, H749 and H748. Works with General partitions. Used with plastic laminate toilet partitions.

Global partitions plastic laminate pilasters are for commercial use. All toilet partitions ship in 48 hours, 2-4 days travel. The pilasters Include floor mounting hardware and stainless steel shoes and are 1" thick.  Available for the following widths are available in 3- 24". The pilasters are for overhead braced units that use an aluminum headrail to brace the top of the pilasters. A plastic laminate pilasters are 1" thick and 85" high. If yours are less you can cut the top off and the headrail will cover the top.

Global Plastic Laminate color chart

Full length aluminum door stop for 1" material used with solid plastic commercial toilet partitions or posts that are 1" thick. This product will help any gap from the front view of the toilet stall door on the latch side. For an out swing door the slide bolt latch locks onto the opposite side of the bumper. For an in swing door the kit comes with a simple stainless steel keeper that is mounted on the inside of the stall on the post for the latch to lock to. This kit is used for an inswing or an outswing door. The spec sheet is attached, the overall height is 53-1/2". The product is made by Global Partitions with part numbers 40-8464400 and 40-8262370.

Global partitions stainless steel 10' post & screen are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard brackets included. floor & ceiling braced post and panel 1-3/4" square post up to 120" maximum with 58" high panel. Width of screens 16"-76"x58" ht.

Global Stainless Steel Color Chart

Tubing is 1″ diameter x 20 gauge with a satin finish. 36" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 60" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

Stainless Alcove Two Ear Bracket Panel Kit for 3/4". This kit is used for 3/4" panel to 3/4" pilaster. Wall brackets and alcove clips are cast stainless steel. Security screws included. Also known as 615663.

Brackets designed to mount plexiglass/acrylic sheets to desk top or work surface when creating separation/barrier. Brackets are adjustable for thickness from 1/8" to 3/8". It is recommended for use of 1/4" Thick material. Sold as a Pair. Made of Aluminum Alloy. Screws and inserts included. Uses a 5mm/3/16" Allen Key(Not Included) to install screws These are available in either Silver or Black Finish. Silver Finish are readily available while Black Finish may have an extended leadtime depending on quantities being ordered.

Measurements

Height: 2-1/2"

Width:1-3/4"

Depth: 5/8"

Weight:About .6lb

The Partition Slide Bolt Latch with Indicator is constructed of Cast Stainless Steel.  It is designed for 3/4" or 1" thick doors, and has a screw spacing of 2-3/4" on center.   We find this latch on Global Partition Corp and Global Partition Corp restroom stalls.  The manufacturer part number is 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.partitionsandstalls.com/partition-hardware/latches/chrome-plated.html

https://www.partitionsandstalls.com/partition-hardware/latches/cast-stamped-stainless-steel.html

#12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

Grab Bar Installation Kit Concealed 1" Panel 3"dia SS plate stud/nut

The baby changing tables are a horizontal station, has a door facing and collar made from 18 gauge 304 stainless steel. Fabricated of FDA approved fungus and bacteria-resistant plastic. Unit complies with 2010 ADA Accessibility Standards and supports a static load of 300 lbs. This unit is used for recess mounting , also know as part number 9018-9 with American Specialties.

The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

The Partition Keeper - Outswing For 3/4" Square Edge is for out swinging doors and mounted on square edge 3/4" thick pilaster posts.  The keeper is constructed of cast stainless steel.  The manufacture part number is 40-8562306.

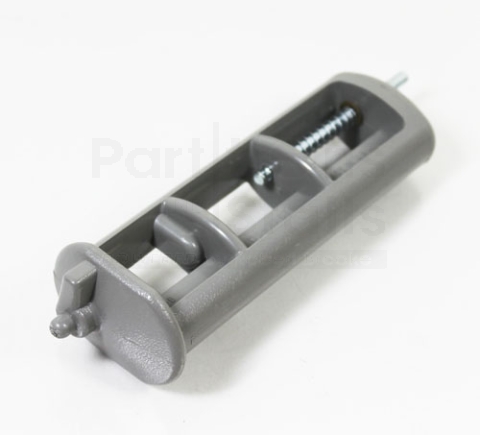

Replacement roller for the Control-O-Roll Toilet Paper Dispensers 6-1/2" wide

Tubing is 1″ diameter x 20 gauge with a satin finish. 42" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Tubing is 1″ diameter x 20 gauge with a satin finish. 72" Length will be as specified. Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others. Rod will bend and pull from flanges if significant body weight is suspended.

Chrome Plated Partition Keeper Bumper For Throw Latch, For Inswing Flat Stop

Chrome plated Zamac die casting. The strike and keeper is 1-1/4" high by 2-1/2" deep by 1/8" thick. The stop is 1/2" deep by 1-1/4 wide with a rubber insert. The slots are 1/4" deep. Also known as a Bathroom Stall Strike and Keeper Inswing Flat. Manufacture part # 5650.

Shipped with mounting screws.

Global Partition selling online all plastic laminate panel dividers. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes 4 standard chrome brackets. Available for the following widths 16-76" and are 1" thick. Actual width is 1/2" less.

Global Plastic Laminate color chart

Bobrick B-277 surface mounted waste receptacle with liner mate in a satin finish stainless steel. The top edges are hemmed and the bottom of unit. The capacity is 12.75 gallons and is 15-1/8"w x 23" ht x 8-1/2" depth.

Hadrian's new style 7/15/19 partition Ada latch knob with set screw included. The latch is ADA compliant and meets barrier free codes.  They are constructed of Zamac die cast metal that is then chrome plated and polished. This part is used on Hadrian Partitions and will replace the old style concealed turn latch. The new manufacturer's part number is 601150, but also associates with old parts and replaces 601100, 601110, 601200. This new turn latch with set screw and cover will replace all standard or old Ada latches prior to 8/1/2019.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305
