The Toilet Partition ADA Throw Latch & Keeper Chrome Plated is constructed of brass that is chrome plated and polished.  This heavy duty latch has a base that is 2" by 2" and is 3/16" thick. The throw latch is 5-7/16" long by 1-1/4" by 7/32" thick. The keeper is 2" by 2" by 21-32" high. Meets ADA codes in most States. Also known as a Bathroom Stall Heavy Duty ADA Throw Latch and Keeper and Toilet Partition Locks. Manufacture part # 5701.  Shipped with mounting screws.

The Toilet Partition ADA Slide Bolt Latch Inswing Latch & Keeper is constructed of Stamped Stainless Steel.  The latch is 2" wide by 2-7/8" tall. Latch bolt is 2-3/4" long by 13/16" wide by 1/8" thick and has a throw of 25/32". The keeper is 1-1/2" by 1-1/2" by .075" thick, and projects out 7/16". Commonly called a Bathroom Stall Latch for inswinging doors and Toilet Partition Locks. Manufacture part # 6409 and 6539.  Shipped with mounting screws.

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Compact high-speed hand dryer for applications where less space is available. 5-year warranty. 9-25/32" W x 6-5/8" H x 5-7/16" D
FEATURES

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

Global aluminum slide latch for solid plastic partitions typically. This latch has a brushed look to it. The hole spacing is 2-3/4". This products manufacture is global 8442899. Security screws included. The bolt extends 1" out from the edge.

"C" Fold or Multi-Fold
Tumbler lock, stainless steel and heavy duty piano hinge
Holds 275 Multi-fold or 200 C-fold towels
11"w x 8"h x 4"d

Stainless Steel unit Tumbler lock, sheet metal and heavy duty piano hinge width 11"w x 15"h x 4"d.
Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters. Fabricated of 22 gauge stainless steel with #4 satin finish. Fitted with tumbler lock and heavy duty stainless steel piano hinge.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

The Toilet Partition ADA Slide Bolt Latch & Keeper Stainless Steel is constructed of black acetate plastic and stainless steel.  This latch meets ADA Compliance Codes.   Slide lock measures 4-3/16" long by 1-1/8" tall by 15/32" thick. The mounting plate has mounting screws 1-1/4" on center and is 2-15/32" long. The lock projects out 1-3/16" from the face of the door. The keeper is 1-1/2" wide by 1-1/8" tall by 3/32" thick. Commonly known as a Bathroom Stall Surface Mounted ADA Slide Lock and Toilet Partition Locks. Manufacturer part # 6049, 1002927.  Shipped with mounting screws. For 1" thick doors.

Partition Door Piano Hinge W/Cover rh in/lh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8674.

Toilet Partition Continuous Hinge, 57" Long Non Handed,14 Gauge Stainless Steel ,1/4" Diameter Pin, Cam Close. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Bathroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #7789, 160029, 650-9400.

Turbo Dri High Speed Dryer American Specialties introduces the Turbo Dri High Speed Dryer 0197 model. Quick drying — less than 12 seconds Operates automatically using infrared sensor Auto-resetting thermostat 60-second automatic shut off Cover fabricated of heavy-duty, one-piece-formed stainless steel. Overall Size 8 1/16" W x 11 19/64" H x 7 5/64" D.

Bobrick B-2888 multi roll toilet tissue dispenser for surface mounted only. Satin finish in stainless steel dispensing mechanism. The door is equipped with a tumbler lock and holds up to two rolls 5-1/4" wide. The extra roll at the top will drop in place when the bottom roll is out. Theft resistant heavy duty spindles. The unit is 6-1/16" w x 11" ht x 5-15/16" deep.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

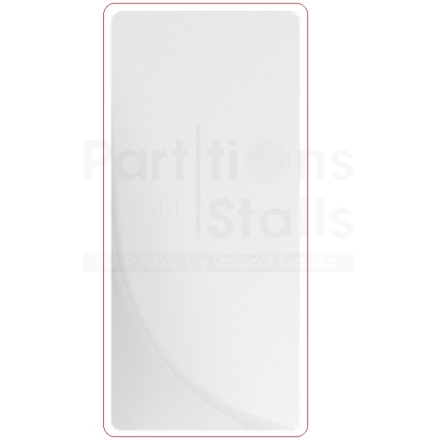

Wall Guard’s white acrylic units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10455K.

• Unit Size: 31.5”x15.5”x.06”
• White(Antimicrobial Acrylic-PVC Composite)
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

Wall Guard’s brushed stainless steel units measure 31.5”x15.5”x.06” and are designed to be installed under hand dryers. Provides protection for wall and makes clean up simple. Wall Guard can be used many different applications other than just under a hand dryer. Can be mounted around sinks, on restroom stalls or anywhere where to help prevent water damage. Known as World Dryers part number 37-10457K.

• Unit Size: 31.5”x15.5”x.06”
• Brushed Stainless Steel
• Mounted using Heavy Duty Double-Sided Adhesive Strips(Included)
• Easy Cleaning
• Modern Design

Euro Style Support Brace for 3/4" thickness material. Available in 4"-4-1/2", 6-6-1/2" and 9-9-1/2" height, all adjustable by a 1/2". Heavy duty industrial #304 stainless steel material. References part numbers are 189003, 189013, 189023.

Shower Room Pedestal 8" x 16-1/4"ht Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Putty color.

"C" Fold or Multi-Fold
Heavy duty steel back with impart resistant plastic front
Holds 540 multi-fold or 350 C-fold towels
11"w x 15"h x 4" d

"C" Fold or Multi-Fold
Heavy duty steel back with impart resistant white plastic front
Holds 540 multi-fold or 350 C-fold towels
11"w x 15"h x 4" d

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

Partition Door Piano Hinge W/Cover lh in/rh out 54" aluminum anodized is a heavy duty 1/4" pin with spring to close. this hinge has 5 holes on each side with 13" centers and starts at 1" from top and bottom. The cover makes the hinge holes not as noticeable. Also known as 8684.

Roval Paper Towel Dispenser, 20210 Dispenses 400 C-fold or 525 multi-fold paper towels. Fabricated of 22 gauge type 304 stainless steel with satin finish. Fitted with tumbler lock and heavy-duty stainless steel staked piano hinge.
ASI spec sheet

ASI Roval cast iron hand dryers offers many features, Quick Dry (Under 25 Secs), No Touch (Energy Efficient), Universal Voltage (100-240 VAC & 50/60 Hz), Only Available in White, Cover made from ¼” Thick Heavy Duty Cast Iron, ADA Compliant, Durable yet Modern Design. Dimensions are 15-3⁄32"W x 11-7⁄32"H x 3-15⁄16"D (383 x 285 x 100 mm).

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

Shower Room Pedestal Dove Gray Color 8" x 16-1/4" Sold Individually. Heavy duty Bench Pedestals shall consist of steel tubing with 10 gauge steel flanges welded to each end. The overall height of pedestal shall be 16-1/4". Pedestals are to be finished to match the lockers in  Dove Gray color.

Comtec Hiny Hider Partition Integral Hinge Pin Kit with heavy duty L brackets for extra strength. This kit includes everything you see in the picture. The long pin is 6" x 1/2" diameter, the smaller one is 3-1/2" x 1/2" diameter. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

ASI Matte Black paper towel dispenser multi/c-fold is surface mounted and is fabricated of 22 guage stainless steel. Dispenses 400 c-fold or 525 multi fold paper towels without adapters or adjustments. Features a tumbler lock(key included), refill viewing slot on sides and heavy duty stainless steel piano hinge. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

11-1/8″ x 14-5/8″ x 4″ (282 x 371 x 101 mm)

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Toilet partition continuous door stop for powder coated steel partitions, this has a slight round edge for attaching. The length is 57" and is used on a 1-1/4" slight round edge pilaster for mounting. Used with 1" doors and has a concealed turn latch with the pin coming out the center edge of the door. The hole spacing for the slot is 28-1/2" dead center of unit. The slot for the bolt to lock to is 7/16" wide x 5/8"ht. This helps with blocking the door gaps on the locking side of the door. This is made of brushed aluminum material and is used with in or out swing doors. Also known as Hadrian partitions part number 560058.
