Global Toilet Partitions Pintle
The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic. The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175. Shipped with nut and lock washer.
9G0237 -
Global Partition Stainless Steel Dividers
-
Global Steel Panel
-
Global Partitions Solid Plastic Braced Urinal Screens
Global partitions solid plastic HDPE for overhead braced privacy dividers manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard aluminum brackets included. The kit includes 6"x82" pilaster, panel, headrail and all the hardware to assembly. This works great for a privacy near the main restroom door.
9SOBPXX -
Metpar Partitions Bottom Cam Housing Chrome Plated
The Metpar Partitions Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal and then chrome plated. The housings outside dimensions are 3-1/8" wide by 1-5/32" deep by 1-7/16" high. The screw hole is 7/32" diameter. The square slot is 1" by 15/16". The square bulge were the screw is located is 1-1/2" by 1-5/32". Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4060
91005BC -
Global Phenolic Wall Mounted Privacy
Global partitions solid phenolic wall hung or mounted urinal privacy screens are available in a color thru or black core material. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Urinal screens are 1/2" thick by 48" high panel. Available in the following widths 12, 18, 24". Specify color and width.Cast stainless steel bracket included.
Global Solid Phenolic Color Chart9SWPHXX -
Global Partitions Top Hinge for Surface Mount
Global Partitions Top Hinge For Flat Surface Mounting. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0202 -
Global Toilet Partitions Keeper Bumper Concealed
The Global Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts. They are constructed of Zamac die cast metal that is chrome plated and then polished. Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510. Shipped with mounting screws. Globals manufacturer part number 40-8511530.
9G150C -
Global Partition Wall Hung Plastic Laminate Screen
Global Partition online all plastic laminate wall mounted screens are great for between urinals or a urinal and a sink. Laminated partitions ship in 48 hours, 2-4 days travel. Standard chrome bracket's are included. Wall mounted screens 1" thick by 48" high panel. Available in the following widths 12, 18, 24".
9SWHLXX -
Global Partitions Stainless Steel 10' Post & Urinal Privacy
Global partitions stainless steel 10' post & screen are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. All standard brackets included. floor & ceiling braced post and panel 1-3/4" square post up to 120" maximum with 58" high panel. Width of screens 16"-76"x58" ht.
9SFCSSXX -
Global Partitions Top Hinge for Surface Mount Stainless Steel
Global Partitions Top Hinge For Flat Surface Mounting. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Manufacturer part # 135580, 111723. Same part for Flush Metal and General Partitions. Shipped with mounting screws. A=1-7/6". Also used with Accurate Partition doors after January 2013.
9G0203 -
Global Partitions Solid Plastic 10' Post & Panel
Global partitions solid plastic HDPE 10' post & panel is Manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. 1-3/4" square post up to 120" maximum with 55" high panel. This works great for entrances of bathrooms to add privacy when people walk in. See sizes below that are available for quick shipping. All privacy kits included standard aluminum hardware.
9SFCPXX -
Global Wall Hung Urinal Screens Steel
Ordering Online All Powder Coated Metal Wall Hung Urinal Screens Manufactured by Global Partitions. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Wall Hung 1" thick by 48" high panel. Available in the following widths - 12, 18, 24" x 48"ht screen. Two Standard Chrome Plated Brackets included.
9SWHSXX -
Global Partitions Phenolic Floor Mounted Privacy
Global partitions solid phenolic floor mounted privacy's are available in phenolic color thru or black core. Color Thru is 10 days and Black Core ship in 5 Days, 2-4 days travel. Floor mounted urinal screen's are available for the following widths 16"- 52". Actual panel width is 1/2" less size ordering and all panels are 58" ht. All stainless steel brackets, 5x70 pilaster and panel included.
Global Solid Phenolic Color Chart9SFAPHXX -
Global Partitions Bottom Hinge for Surface Mount
Global Partitions Bottom Hinge For Surface Mount. Chrome plated Zamac die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0201 -
Aluminum Pilaster Stiffener
Toilet partition Aluminum Pilaster Stiffeners for restroom stalls. The Pilaster Stiffener is constructed of extruded aluminum. Measures 3-1/2" wide by 75" length. Used to help stablize restroom pilasters that carry the weight of a door or alcove panel. Typically used on pilasters that are 8" and lager in size and that support a door of 32" and larger. Designed to help provide stability to the partitions structure my making the pilaster less likey to bend, warp and break. To be installed as close as possible to the edge of the pilaster that is closest to the door. Comes pre-drilled with 14 holes and comes with screws for mounting. Can be utilized with any manufacturer for partitions but sizes could vary. Commonly known as 40-8447334(Global/Accurate), CI-76STIFFENER(Scranton) and 627240(Hadrian).
9a8447 -
Knickerbocker Partition Top Hinge Casting
The Knickerbocker Partition Top Hinge Casting is constructed of Zamac die cast metal and is not plated. This piece is used on Knickerbocker, Global and General Partitions metal doors, there maybe more, but this is all we know at this point. The outside measurements are 2-7/31" by 2-11/16" x 2-5/8", which is the measurement, less the tabs that go into the door. The hole throgh the center has a diameter of 1/4". The manufactures part number is 4646.
9K0245 -
Global Toilet Partitions Keeper Bumper Concealed
The Global Toilet Partitions Keeper Bumper Concealed is for used with concealed latches and 1-1/4" thick square edged pilaster posts. It is constructed of Zamac die cast metal that is chrome plated and polished. The keeper and strike is 2-1/2" tall by 1-7/8" wide. The stop is 17/32" thick and projects out 3/4". The mounting holes are 1-1/2" on center. The locking slot is 7/16" deep. Generally used with concealed latches. Also known as a Bathroom Stall Strike and Keeper - Inswing/Outswing 1-1/4". Manufacture part # 5230. Shipped with mounting screws.
9G631H -
Global Toilet Partitions Top Hinge Casting
The Global Toilet Partitions Top Hinge Casting is for use on there metal restroom stalls. It is constructed of Zamac die cast metal. The outside dimensions of the top hinge casting are 5-1/8" high by 2-5/8" deep by 25/32" wide. Two of the three holes are 3/8" diameter, and the other hole is threaded for a 5/16-18 screw. Also known as a Bathroom Stall Door Insert - Top 1". Manufacture part # 4556.
9G0220 -
Global Partitions Slide Bolt Latch
The Global Toilet Partitions Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions. Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136. This latch ships with the mounting screws.
9G0136 -
Global Partitions Bottom Hinge for Surface Mount Stainless Steel
Global Partitions Bottom Hinge For Surface Mount. Stainless Steel die cast construction. Used with powder coated steel and stainless steel partition doors. Pivot hinge is 2-3/16" tall by 1-1/2" wide. The hole spacing is 1-1/2" on center. The lug projects out 1-9/16" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Manufacture part # 3010, 111710, 111713. Also used with Flush Metal and General Partitions. Shipped with mounting screws. A=1-9/16". Also used with Accurate Partition doors after January 2013.
9G0204 -
Partition Slide Bolt Latch Chrome Plated
The Partition Slide Bolt Latch Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished. The latch measures 1-1/2" Wide X 3-1/4" High, and 2-3/4" Between Screws. We find this latch used on Accurate Partition Corp and Global Partition corp restroom stalls. Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.
9A2899 -
Global Toilet Partitions Ada Latch Knob Cover
The Global Toilet Partitions Ada Latch Knob Cover is constructed of Zamac die cast metal that is then chrome plated and polished. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380.
9G0139A -

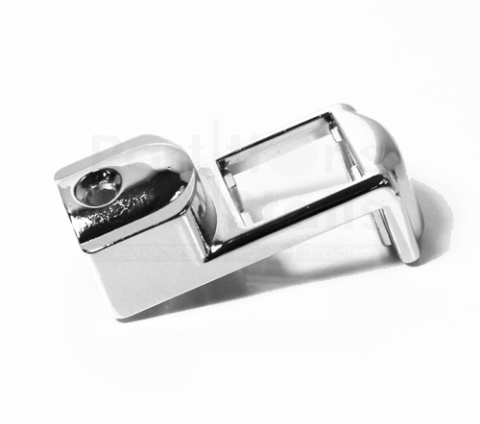

Global Toilet Partition Bottom Cam Housing Chrome Plated
The Global Toilet Partition Bottom Cam Housing Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished. The bottom cam housing measures 1-3/16" wide by 3" deep. The screw hole is 9/32" diameter. Also known as a Bathroom Stall Door Insert - Bottom 1". Manufacture part # 4090.
9FL275CH. -
Global Partitions Top Hinge
The Global Partitions Top Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed of Zamac die cast metal that is then chrome plated and then polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 3/8" diameter. Also known as a Bathroom Stall Pivot Hinge Top 1-1/4". Manufacture part # 3510. Shipped with mounting screws. A=1-7/6"
9G0225 -
Global Toilet Partitions Bottom Hinge
The Global Toilet Partitions Bottom Hinge is for use on 1-1/4" thick round edged pilaster posts. It is constructed on Zamac die cast metal that is chrome plated and polished. Pivot hinge is 2-3/16" tall by 1-1/4" wide. The slot that wraps around the post is 1-1/4" wide and 11-16" deep. The hole spacing is 1-1/2" on center. The lug projects out 1-1/2" and is 1/2" thick. The bushing on the lug is 5/16" diameter. Also known as a Bathroom Stall Pivot Hinge Bottom 1-1/4". Manufacture part # 3010. Shipped with mounting screws. A=1-7/6".
9G0230 -
Global Complete Hinge Set with Rounded Edge
Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.
9G663140 -
Global Partition Plastic Laminate Panel Dividers
Global Partition selling online all plastic laminate panel dividers. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes 4 standard chrome brackets. Available for the following widths 16-76" and are 1" thick. Actual width is 1/2" less.
9TPLXX -
ASI Headrail Return Kit
ASI Headrail Retrun Kit is designed to work with Global and Accurate Partitions. Manufacturered to work with the new style headrails introduced in May of 2023 which are a lower profile than the previous models that are no longer available. The headrail retun kit will work with the 3/4", 1" and 1-1/4" thickness headrails from ASI. This kit includes (2) Brackets, (2) Wall Anchoring Screws, (2) Plastic Anchors, (4) Fastening Screws and (1) Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with ASI Headrail (9A84) Manufacturer Part# 40-8448100.
9A8448 -
Global Toilet Partition Nylon Cam For Steel
The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic. Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.
9G0232 -
Partition Ada Latch Knob Cover w/Set Screw
The Partition Ada Latch Knob Cover with Set Screw is constructed of Zamac die cast with polished chrome plating. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall diameter of 1-1/4". This piece is used with All American, Flush Metal, General and Global Partitions, and may be more. Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part number is 6150, and 163500, it uses a T27 Torq Bit that is included.
9G5000 -
Global Toilet Partitions Latch Knob Cover
The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished. Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.
9G0139 -
Global Solid Plastic Wall Dividers
Global partitions solid plastic panel dividers are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Panels Include 4 standard aluminum Brackets. Available for the following widths 16- 76". Panel's actual width is 1/2" less.
9TPPXX
