Global Complete Hinge Set with Rounded Edge. Used currently with these factories Global, General and Flush Metal and Accurate Partitions. Complete as shown in picture with the parts. Includes top pin, top hinge, bottom cam, pintle and bottom hinge and security screws. Used with powder coated steel and stainless steel partitions with a slight round edge. These will not work with old original Accurate Partitions prior to 2013. Used 2013 to current with Accurate Partitions.

ASI Headrail Retrun Kit is designed to work with Global and Accurate Partitions. Manufacturered to work with the new style headrails introduced in May of 2023 which are a lower profile than the previous models that are no longer available. The headrail retun kit will work with the 3/4", 1" and 1-1/4" thickness headrails from ASI. This kit includes (2) Brackets, (2) Wall Anchoring Screws, (2) Plastic Anchors, (4) Fastening Screws and (1) Headrail End Cap. Can be used to run across the top of partitions either between two wall or runnning from a rear wall to a pilaster. Often used in conjuction with ASI Headrail (9A84) Manufacturer Part# 40-8448100.

Global partitions 8" wrap door kit for Solid Plastic material. Comes in anodized aluminum finish and are for 1" thick material only. You will need to choose in or out swing when ordering. Can be used as right or left hand as hinges are field reversible. This is done by taking the 3 pieces apart and reconfiguring the opposite swing. See manufacturers numbers listed below. Used with Global and Accurate partitions.

Inswing Door Kit: 40-8441007

Outswing door Kit: 40-8441008

Ordering online all global partitions in powder coated panels are Manufactured in the usa. All toilet partition panel's ship in 48-72 hours plus 2-4 days travel. All hardware chrome plated included. Available in 16"- 76". Actual width is 1/2" less. (58" Height). Panels are 1" thick.

Global Partitions Color Chart

Ordering online all plastic laminate doors are Manufactured by Global partitions. All toilet partitions ship in 48 hours, 2-4 days travel. Plastic laminate doors include hinges for 1" square edge pilaster and bumper keeper and surface mount slide bolt latch. Available for the following door opening widths 22-36 inch (actual door size is 3/8" narrower that the opening).

Global Plastic Laminate color chart

Global partitions solid plastic (HDPE) wall mounted urinal screens are manufactured in the USA. All toilet partitions ship in 48-72 hours plus 2-4 days travel. Plastic wall mounted screens can be 48" in height by 1" thick panel. Available in 12, 18, 24, 30 widths. Continuous aluminum channel bracket shown in picture included.

Global Solid Plastic Color Chart

Global Partition selling online all plastic laminate panel dividers. All toilet partitions ship in 48 hours, 2-4 days travel. Panels Includes 4 standard chrome brackets. Available for the following widths 16-76" and are 1" thick. Actual width is 1/2" less.

Global Plastic Laminate color chart

Global partitions plastic laminate panels & 10' aluminum post are great for extra privacy and extra strength and support. All bathroom toilet partitions ship in 1 week, 2-4 days travel. The post is 10' x 1-3/4" Square Post, panels are 58"ht. All standard chrome hardware included. 16- 76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

The Global Toilet Partitions Top Pin is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

Global partition plastic laminate overhead braced urinal privacy dividers. All toilet partitions ship in 1 week, 2-4 days travel. 6" x 82" ht pilaster and panel included and aluminum headrail and all standard hardware included. 16-76" panels available, note panels are 1/2" less than width size.

Global Plastic Laminate color chart

The Partition Slide Bolt Latch Chrome Plated is constructed of Zamac die cast metal that is then chrome plated and polished.  The latch measures 1-1/2" Wide X 3-1/4" High, and 2-3/4" Between Screws.  We find this latch used on Accurate Partition Corp and Global Partition corp restroom stalls.  Also known as a Surface Mounted Bathroom Stall Slide Latch and Toilet Partition Locks. Known as 40-8512899. Shipped with mounting screws. This latch is Ada approved.

The Global Toilet Partitions Top Pin is constructed of zinc plated steel.  The hinge pin is 3/8" diameter by 3-3/4" long. Also known as a Bathroom Stall Door Hinge Pin. Manufacture part # 98544.

Full length aluminum door stop for 3/4" material used with phenolic commercial toilet partitions or posts that are 3/4" thick. This product will help any gap from the front view of the toilet stall door on the latch side. For an out swing door the slide bolt latch locks onto the opposite side of the bumper. For an in swing door the kit comes with a simple stainless steel keeper that is mounted on the inside of the stall on the post for the latch to lock to. This kit is used for an inswing or an outswing door. The spec sheet is attached, the overall height is 53-1/2". The product is made by Global Partitions with part numbers 40-8454500 and 40-8262370.

The Toilet Partition Keeper- Outswing, For 1-1/4" Square Edge is designed for out swinging doors and an 1-1/4" thick square edged pilaster post.  The keeper is constructed of cast stainless steel.  The part is used by many manufactures on there plastic laminate restroom stalls, and there part number is 40-8562304.

The Global Toilet Partitions Pintle is for use on there steel doors and is constructed of steel and white nylon plastic.  The Pintle is 5/8" diameter by 2-1/4" overall length with 5/16-18 threaded end. Also known as a Bathroom Stall Bottom Pintle 5/8" Medium Lift. Manufacture part # 98175.  Shipped with nut and lock washer.

The Toilet Partition Keeper- Inswing For 3/4" Square Edge is for in swinging doors with a 3/4" squared edged pilaster post.  It is constructed of cast stainless steel.  We find this keeper used on Global Partition Corp and Accurate Partition Corp restroom stalls.  The manufacture part # on this is 40-8562305

Full length aluminum door stop for 1" material used with solid plastic commercial toilet partitions or posts that are 1" thick. This product will help any gap from the front view of the toilet stall door on the latch side. For an out swing door the slide bolt latch locks onto the opposite side of the bumper. For an in swing door the kit comes with a simple stainless steel keeper that is mounted on the inside of the stall on the post for the latch to lock to. This kit is used for an inswing or an outswing door. The spec sheet is attached, the overall height is 53-1/2". The product is made by Global Partitions with part numbers 40-8464400 and 40-8262370.

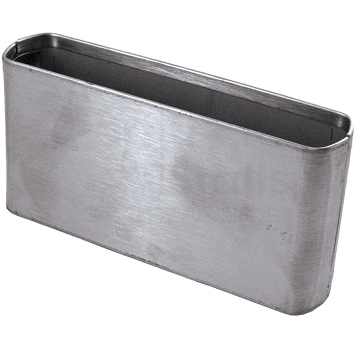

Toilet partition round edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoes are split on one end for easy installation. Also known as a Bathroom Stall Pilaster Post Shoe Round Edge. Used for the base of the support system with pilaster mounting.

The Global Toilet Partitions Top Hinge Pin is used on there Plastic Laminate restroom stalls.  The pin features knurled steel construction, and is 3-1/2" long by 3/8" diameter.  The knurled end has a threaded hole of a 10-24 screw. Also known as a Bathroom Stall Hinge Pin. Manufacture part # 99109.

The Global Toilet Partitions Latch Knob Cover is constructed of Zamac die cast metal that is chrome plated and then polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". Also known as a Bathroom Stall Concealed Latch Cover and Knob Assembly. Manufacture part # 1390, 6140.

The Global Toilet Partition Nylon Cam For Steel restrooms is constructed of white nylon plastic.  Square part of nylon cam is 7/8" by 1-1/8" with a diameter of 11/16". The cam has an overall height of 1-1/4", with a cylinder diameter of 7/8". Also known as a Bathroom Stall Cam. Manufacture part # 98185.

The Global Toilet Partitions Ada Latch Knob Cover is constructed of Zamac die cast metal that is then chrome plated and polished.  Outside diameter of the knob and cover are 1-5/8" with the inner ring diameter of 1-1/4". The ADA Barrier Free Lever is 2-9/16" long when measured from the all the way across the cover. The cover has an overall depth of 1-1/4". Also known as a Bathroom Stall Concealed ADA Latch Cover and Knob Assembly. Manufacture part # 6150, 1380.

The Partition Slide Bolt Latch with Indicator is constructed of Cast Stainless Steel.  It is designed for 3/4" or 1" thick doors, and has a screw spacing of 2-3/4" on center.   We find this latch on Global Partition Corp and Global Partition Corp restroom stalls.  The manufacturer part number is 8563009. This latch is Ada approved. There is no exact replacement available.

Sorry no longer available, see links for options

https://www.partitionsandstalls.com/partition-hardware/latches/chrome-plated.html

https://www.partitionsandstalls.com/partition-hardware/latches/cast-stamped-stainless-steel.html

Ordering online all powder coated metal pilasters Manufactured by Global Toilet Partitions. All toilet partition pilaster's ship in 48-72 hours plus 2-4 days travel. Includes Floor mount hardware and stainless steel shoes available for the following widths - 2"-24". All Pilaster height's are 84" x 1-1/4" thick..

Global Partitions Color Chart

ASI EZ Shoe is designed to anchor directely to the floor. Made for Global Partitions and Accurate Partitions restroom stall. This allows for the pilaster to sit inside the shoe. Constructed of #304 Stainless Steel and 3" height. The ASI EZ Shoe comes in round or square edge design. Round Edge shoes are configured for Solid Plastic (1" Thick), Powder Coated Steel and Stainless Steel (1-1/4" Thick) partition pilasters. Square Edge is designed for Plastic Laminate (1" Thick) and Phenolic (3/4" Thick) partition pilasters. ASI EZ Shoes come with all hardware for anchoring shoe to floor and screws for attaching pilaster shoe to pilaster. Pilaster shoes are the base support for partitions.

The Global Toilet Partitions Slide Bolt Latch is made of zamac die cast metal and then chrome plated and brought to a polished finish. This latch was used by Accurate Partition Corp and Global Partitions.  Latch base is 4-1/2" high with 3-1/2" hole spacing. Latch bolt is 3-3/32" long by 1" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5050 and also the same as 9G0136.  This latch ships with the mounting screws.
