ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Lathern or Liquid Dispenser
5 w" x 8 h" x 3" d
40 oz Bulk Fill
Stainless Steel

Cast Stainless Steel Partition Keeper 1-1/2" Between Screws

Cast stainless steel construction. Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5183.

Shipped with mounting screws.

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009

Universal Stainless Steel Handing Hinge Surface mounted. This hinge is universal which means this can be in or out swing and right or left hinged. This hinge is 1/8" thick, overall width is 3" x 3-3/8" ht. The hole spacing is 2" x 1-1/2" up and down. The manufacturer's part number is 650-8241, 7199. Hardware included for 1" door and 1-1/4" thick post.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

The Continuous Hinge without Spring Stainless Steel, is 57-1/2" long by 3".   It is constructed of 16 gauge (.060" thick) stainless steel.  Holes are located every 11" or so, and the hinge pin diameter is 1/8".  Hinge can be raised up 3/8" for emergency entry. This hinge is not self closing.  Also known as a Bathroom Stall Piano Hinge, or Full Length Stainless Steel Continuous Piano Hinge. Manufacture part # 7649.  Shipped with all the fasteners.

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

Partition panel bracket kit for 1" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615033.

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is cast Stainless Steel plated. All bracket kits include security screws to mount the brackets. Also known as 615513.

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is cast stainless steel plated. All kits include security fasteners to install the brackets. Also known as 615163.

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1/2"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1/2" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182669

Toilet Partition Stainless Steel Continuous One Ear Bracket, 71", 1"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. One ear bracket is for 1" wide partitions and is 2-1/2" height by 2-13/32" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous One Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182339

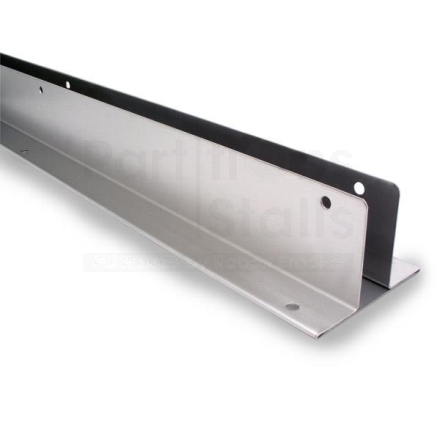

Toilet Partition Stainless Steel Continuous Two Ear Bracket, 71", 1"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge.Two ear bracket is for 1" wide partitions and is 2-1/2" height by 3-11/16" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Two Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182349

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

Alcove Clip Set Stainless Steel 2 Pieces for same thickness material 2-1/2"w x 1-5/8"ht. Security thru bolts included. Manufacture part 8369.

Toilet Partition Continuous "U" Wall Bracket For 1" Thick Panel Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 54" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2799.

Screws included with bracket.

Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

One Ear Pilaster Bracket Kit for 1-1/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615233.

Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

The Slide Bolt Latch With Indicator Cast Stainless Steel is a newer product for us.  The kit includes an adjustable spindle that will work on toilet partition door thicknesses of 3/4" all the way up to 2-1/2".  The latch body measures 2-11/16" by 1-5/8" tall by 1/2" thick.  The hole spacing on the latch body is 1-1/8" on the vertical and 1-11/16" on the horizontal.  The throw on the latch is 3/4".  The indicator plate measures 1-11/16" by 2-3/8".  This part is also known as the "Latch Slide S/M-Indicator-W/Keeper-Cast Stainless" and the manufacture part number is 124563.

Toilet Partition Stainless Steel Continuous Hinge, 71", Non-Handed, 14 Gauge, 1/4" Pin

Stainless Steel Construction 14 gauge (.075" thick). Hinge is 3" wide when laid flat, by 71" long. Holes are typically spaced every 14". The hinge pin is 1/4" diameter, and the mounting holes are 9/32" diameter. This hinge is also known as a Full Length Toilet Partition Continuous Hinge. Hinge had rounded edge 3/8" radius and is cam (gavity) self closing. Designed to be 20 degree hold so that door will close and rest at 20 degress from being flush with partitions surface but can be pulled flush. The Bathroom Stall hinge can be raised up 3/8" for emergency entry.

*Fasteners not Included *

Manufacture part # 160809

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

Occupancy Indicator Latch Handle is constructed of cast stainless steel with a satin finish. Latch handle is designed for 3/4" Doors and is through mounted to the occupancy indicator. Features a 4-1/2" length handle that is tapered at one end to engage with keeper for locking. Features emergency unlatching access on front of indicator. Shipped with fasteners for mounting occupancy indicator to door and pilaster. Known as manufacturer part number 4993.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, equal.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 14" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with same thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 190269

Stainless Steel Door Hook Fix it kit comes with stainless steel plate 3"x3", stainless steel hook and screws included. Also known as 115523. Hook projects 3" also known as 4113 or 4003.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615813.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws
