Toilet Partition Top Hinge Assembly For 7/8" Thick Door, 1-1/4" Pilaster Square Edge Chrome Plated Polished chrome plated zamac die cast construction. Kit includes Top Hinge, Pintle, Nylon Cam, and Top Hinge Door Insert. Bottom hinge measures 2-1/4" high by 1-1/4" wide with screw spacing of 1-1/2". Mounting lug projects out 1-1/4". Also known as a Bathroom Stall Bottom Hinge Kit. Manufacture part number 63020. Screws are also included.

Partition Door Stop, Pilaster Mounted, 2-1/2" X 4-1/4", Toilet Partition Door Stop Pilaster Mounted Polished Stainless Steel.

Partition Polished Stainless Steel Construction. The door stop base is 3" wide by 1-1/4" high with a 2-5/16" hole spacing. The stop projects out 2-1/2" and has a rubber insert in it. This door stop is usually mounted on the pilaster or post. Also known as a Bathroom Stall Door Stop. Manufacture part # 4155.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, equal.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 14" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with same thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 190269

projects 2", ht 1-3/4"

3/4" Center to Center Hole Spacing

The Toilet Partition Surface Mounted SS Hinge Set  are for use on Left Hand Out Swing and  Right Hand In Swinging Doors.  They feature 1/8" thick stainless steel construction.  Outside hinge measurements are 3-1/4" wide by 2-29/32" high. 1-1/2" hole spacing up and down, and 2-3/8" right to left hole spacing. The four mounting holes are 1/4" diameter. This hinge set includes the top and bottom hinges. Also known as Bathroom Stall Gravity Hinge Set. See "More Views" for the handing diagram. Manufacturer part # 7113.  Mounting screws are included.

Toilet Partition Stainless Steel Continuous Alcove Clip, 71, 14 Gauge, 1/8" offset.

Stainless Steel Construction 14 gauge (.075" thick). Alcove clip is 2-3/8" wide by 71" long. Holes are typically spaced every 13-1/2" vertically and 1-5/8" horizontally. This clip is also known as a Full Length Toilet Partition Continuous Clip. Alcove clip has rounded edge radius. Designed to attach pilasters and panels with different thicknesses by connecting them at the seams and eliminating sightline.

*Fasteners not Included *

Manufacture part # 189979

projects 1-3/4", 1-3/8"ht

3/4" center to center hole spacing

The Surface Mounted. Square Barrel Hinge Set- Right Hand Out Swing and Left Hand In swing are our most heavy duty hinges.  They are constructed of 1/8" thick stainless steel.  1-1/2" hole spacing up and down and 2-3/8" right to left hole spacing. Outside dimensions are 3-1/8" wide x 3" high. Also known as Bathroom Stall Gravity Hinge Sets. Manufacture part # 7051.  Includes all screws.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Right In Swing and Left Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7033.  Shipped with the fasteners.

The Toilet Partition Surface Mounted S.S. Hinge Set is for use on Left In Swing and Right Out Swinging Doors.  The hinge is constructed of 3/32" thick stainless steel. They measure 3-1/4" wide x 2-29/32" high outside dimensions. 1-1/2" hole spacing up and down, and  2-7/16" right to left hole spacing. Also known as a Bathroom Stall Surface Mounted Hinge Set. Manufactures part # 7043.  Shipped with the fasteners.

The Continuous Hinge Stainless Steel, 54"  is for use on Left Hand Outswing/ Right Hand Inswing restroom stall doors.  The hinge is constructed of 16 gauge (.060" thick) stainless steel.  The piece is 3" wide when laid flat, by 54" long. Holes are 9/32" diameter, spaced every 10-1/4" or so. Hinge can be raised up 3/8" for emergency entry. Hinge pin is 1/8" diameter. There is an internal spring to make this hinge self closing.  This Continuous Hinge is for Left Hand Outswing, and Right Hand Inswing, see handing diagram under "More Views". Also known as a Full Length Bathroom Stall Continuous Hinge. Manufacture part # 7959.

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

Partition Door Pull 3-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5403.

Partition Door Pull 2-3/4" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6200.

Partition Keeper 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The keeper measures 2-5/8" high by 1-3/8" wide with a 1-7/8" hole spacing. The slot is 1-5/16" high by 5/16" high. Also known as a Bathroom Stall Keeper - Inswing. Manufacture part # 6499.

Shipped with mounting screws.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 3" to 6" wide Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Stainless Steel L shape Partition Brace. Do your Toilet partition panels keep falling out of the bathroom stall wall mounted brackets? If so, the answer might be a Toilet Partition brace or support, which would support the panel and pilaster from falling, or as preventive maintenance to strengthen the compartment. They are also sometimes called Pilaster Support L-Brackets. The we stock 3 versions that are adjustable from 7-1/2″ to 10″, 9-1/2″ to 12″ and 11-1/2″ to 14″, floor to bottom of panel clearance. The bathroom stall brace is made of stainless steel, with a round base of 2-3/8″ and a support bracket that is 1-1/2″ x 2-3/8″. The diameter of the toilet partition support shaft is 1″. If you have any questions on the Toilet Partition Support Braces let us know!
Same as 8513, 85183, 85193, 9a6005, 9a85183, 9a85193. Most common 9a6005.

Note the most common are 11-1/2" to 14" due to the partitions are mounted 12" off the floor.

Also note quantities of 10 or more not returnable.

The Toilet Partition Slide Bolt Latch is constructed of Cast Stainless Steel.  The latch base is 4" high with 2-3/4" hole spacing. Latch bolt is 3-3/16" long by 3/4" wide by 3/16" thick. The latch bolt clearance is 9/16" from the back of the base to the under side of the latch bolt and projects out 15/16". The latch projects out 1-9/16" from the face of the door when installed. Also known as a Bathroom Stall Surface Mounted Slide Bolt Latch and Toilet Partition Locks. Manufacture part # 5023.  Shipped with mounting security screws.  Also known as 9F0302SS.

This latch is the same as our 9F0302 (5020), but is made of cast stainless steel, which is much more durable and heavy duty.

Stainless Steel Double Door Pull made for 3/4” and 1” thick doors. Measurements for the handle 6-5/8" width, 5-1/2" hole to hole spacing, 5" interior opening and 2" height. Constructed of stainless steel with though bolts for mounting back to back on partition doors.Commonly known as part number 189373. This double door pull kit comes with fasteners and Torx Bit(T-20) for 3/4" and 1" thck doors.

Chrome Plated Toilet Partition Flat Stop Keeper

Polished chrome plated Zamac construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5160.

Shipped with mounting screws.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

Partition Strike/Keeper For 3/4" Door Inswing 1-7/8" Between Screw Stamped Stainless Steel

Stamped stainless steel .075" thickness construction. The strike and keeper measures 2-7/8" tall by 2" wide by 1-15/16" deep with a 1-7/8" hole spacing. The stop is 7/16" thick with a rubber insert. Also known as a Bathroom Stall Strike and Keeper Inswing 3/4". Manufacture part # 6469.

Shipped with mounting screws.

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

Toilet Partition Pilaster Anchoring Device

Zinc plated steel construction. For 3/4" thick and larger Pilaster Posts and 3" wide and larger pilaster posts. The brackets are 11/16" wide. Also known as a Bathroom Stall Pilaster Post Anchoring Pack. All the screws are included in the package.

Partition Strike And Keeper For 3/4" Door, 1-7/8" Between Screws Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 3/4" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 3/4". Manufacture part # 6379.

Shipped with mounting screws.

Partition Door Pull 2-3/4" Between Screws Cast Stainless Steel

Cast stainless steel construction. Door pull measures 4-1/16" wide by 13/16" projection with a 2-3/4" hole spacing. The holes are threaded for a 8-32 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 6203.

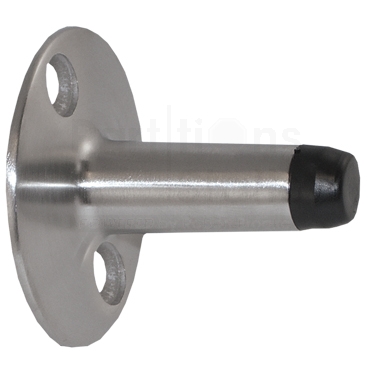

Partition Door Stop 2" High Cast Stainless Steel

Cast stainless steel construction. The door stop base is 2-1/8" diameter with a 1-19/32" hole spacing. The stop projects out 2" with a rubber insert on the end of the stop. Also known as Bathroom Stall Door Stop. Manufacture part # 4123.

Partition Door Pull 3-1/2" Between Screws Chrome Plated

Chrome plated Zamac die cast construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5400.

Toilet Partition Pilaster Floor Shoe 1-3/4" X 1-3/4" Square Post

Constructed of zamac die cast material, then polished chrome plated. Base is 2-5/32" x 3-7/8", with 3" on center hole spacing. Floor shoe projects up 2" and has a 1/4-20 treaded hole. Also known as a Bathroom Stall Pilaster Post Shoe, or Toilet Partition Pilaster Post Shoe. Manufacture part # 3040 and 40-8512510. Shipped with all the fasteners.

Partition Strike And Keeper For 1" Door, 1-7/8" Between Screws, Stamped Stainless Steel

Stamped stainless steel .075" thick construction. The strike and keeper measure 2-7/8" high by 2" wide with a 1-7/8" hole spacing. The stop posts are 5/8" wide by 7/8" tall with rubber inserts. For use with 1" square edge posts. Also known as a Bathroom Stall Strike and Keeper Outswing 1". Manufacture part # 6459.

Shipped with mounting screws.

The Partition Surface Mounted Hinge Set is for use on Left Hand Out Swing and Right Hand Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7011.

Partition Keeper Inswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5343.

Shipped with mounting screws.

Toilet partition full length aluminum door stop for 1" panel outswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an outswing the latch locks on the back side of the bumper. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134314 strike & keeper channel. Includes all hardware.

The Partition Surface Mounted Hinge Set is for use on Right Out Swing and Left Hand In Swinging doors.  The hinges raise the door up 1/4" when opening, and then gravity causes the door to shelf close.  They measure 1-1/2" center to center hole spacing on the vertical and 2-7/16" center to center on the horizontal.  Constructed of cast brass with chrome plating and polished.  They are also known as a Bathroom Stall Gravity Hinge Set.  Manufacture part # 7021.

Toilet Partition Pilaster Anchoring Device for 1" thick or larger.

Zinc plated steel bracket. For 7" wide and larger Pilaster Posts. Also known as a Bathroom Stall Pilaster Post Anchoring Device. Ships with all the hardware and screws shown.

Partition Door Hook & Bumper Stop Inswing Stamped Stainless Steel

Stamped stainless steel 1/16" thick construction. The hook and stop measures 5/8" wide by 2-3/4" high by 3-1/16" projection with a 1" hole spacing. There is a rubber bumper on the end of the 3-1/16" projection. Also known as a Bathroom Stall Hook. Manufacture part # 4009
