Accurate Toilet Partition Top or Bottom Hinge

In stock

SKU

9HAP10
$14.86

Description

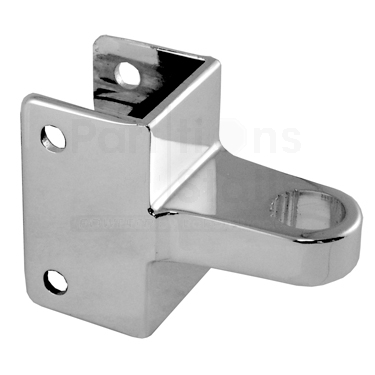

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

More Information
SKU 9HAP10
Availability In Stock
Manufacturer Accurate Toilet Partition
Description

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.

Detailed Description

The Accurate Toilet Partition Top or Bottom Hinge is for plastic laminate doors when attaching them to an 1-1/4" square edge pilaster or post.  The hinge mounts to the post to support the door. Chrome plated Zamac die cast construction. The hinge measures 2-1/4" high by 1-1/4" deep with a slot depth of 1-5/16" and 1-1/2" between screws on center. Hinge lug projects out 1-11/16" and is 1/2" thick with a 5/8" diameter hole. Also known as a Bathroom Stall Pivot Hinge Top/Bottom 1-1/4". Manufacture part # 3540. Same as 9G631A on our website.
