Sanymetal Toilet Partition

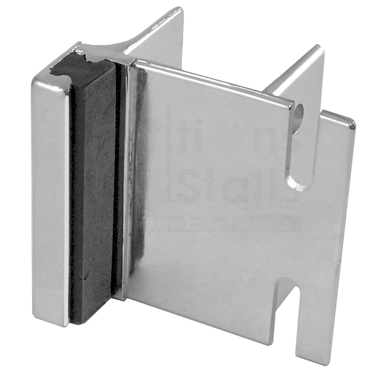

The Sanymetal Toilet Partition Keeper 2" Between Screws is constructed of Zamac die cast metal that is then chrome plated and polished.   Keeper base is 3" high by 1-1/16" wide with a 2" hole spacing. Strike is 3" tall by 7/8" deep. The material 1/8" thick. The slot is 1-1/8" high by 1/4". Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5130.  Shipped with mounting screws.

The Partition Keeper For Throw Latch is for use on inswinging doors.  Keeper base is 2-1/2" high by 1-3/16" wide with a 1-1/2" hole spacing. Strike is 2-1/2" tall by 7/8" deep. The material 1/8" thick. The slot is 13/16" high by 1/4".  They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Keeper Inswing Flat. Manufacture part # 5180.  Shipped with mounting screws.

The Sanymetal Toilet Partition Door Stop is constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing Flat. Manufacture part # 5170.  Shipped with mounting screws.

The Sanymetal Toilet Partitions Bottom Power Bearing For Laminate is used on there plastic laminate of Formica restroom stalls.   The Power Bearing is what makes the door self closing.  The manufacture part number is 97280.

The Sanymetal Partitions Top Hinge Door Escutcheon For 1" Door is constructed of Zamac die cast metal that is then chrome plated and polished.   The outside measurements of this part is 1-3/16" wide by 2-96/32" long by 1-5/8" high.  The hole through the middle is 3/8" diameter.  The manufactures part number is 2450.

The Sanymetal Toilet Partitions Bottom Hinge  Sq Edge is for use on 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.  The manufacturer's part number is 3460. A=1-1/2". 1-1/4" hole.

The Sanymetal Toilet Partitions Top Hinge is for use with there 1-1/4" thick square edged pilaster posts.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The manufactures part number on this is 3960.  A=1-1/2".

The Sanymetal Toilet Partitions SS Bottom Hinge For 1-1/4" thick Round Edged pilaster posts.  They are constructed of stainless steel cast.   The manufacturer part number is 3060, 3403  A=1-9/16".

The Sanymetal Toilet Partition Plastic Top Hinge Pin is 2-1/2" long by 3/8" diameter.  The manufacture part number is 98715.

The Sanymetal Toilet Partitions Bottom Power Bearing is for Metal restroom stalls.  This is the mechanism that makes the doors self closing on there metal doors.   The manufacture part number is 97295.

The Sanymetal Toilet Partitions Ada Latch Knob Cover & Pin is an ADA Compliant latching mechanism.  The pin measures 3-1/8" overall length.   They are constructed of Zamac die cast metal that is then chrome plated and polished.  Manufactures part # 6860 and 8860.

The Sanymetal Partitions Ada Latch Cover Knob is constructed of Zamac die cast metal that is then chrome plated and polished.  This latch is unique in that it has a flat surface on the male portion of the cover to prevent slipping.  This latch is ADA Compliant.  This piece is also known as the 111940 and 650-9117, 8809, 8818.

The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

The Partition Slide Bolt Latch 9/16" Bar To Door clearance is constructed of Zamac die cast metal that is then chrome plated and polished.   Base is 3-3/8" high with 2-5/8" hole spacing. Latch bolt is 3-1/8" long by 7/8" wide by 3/16" thick with a 9/16" dimension from the door to the under side of the latch bolt. The latch projects out 1-1/2" when installed on the door. Also known as a Bathroom Toilet Stall Door Slide Latch and Toilet Partition Locks. Manufacture part # 6540.  Shipped with mounting screws.

The Partition Chrome Plated ADA Throw Latch 3-1/2" Screws has chrome plated brass construction.  Base is 4-1/2" wide by 1-1/2" high by 3/16" thick. Throw latch is 3-11/16" long by 3/4" x 3/16" thick. The center to center distance between the mounting screws is 3-1/2".  The latch projects from the stall door 1-3/8". Also known as a Bathroom Stall or Toilet Partition Throw Latch. Manufacture part # 5151.  Shipped with mounting screws.

The Sanymetal Toilet Partition Coat Hook Bumper is constructed of Zamac die cast metal that is then chrome plated and polished.  Coat hook bumper projects out 3" and has a rubber insert. The hook projects out 1-7/32". The coat hook bumper base is 1-7/16" wide by 2-1/4" high with a hole spacing of 7/8". Also known as a Bathroom Stall Hook. Manufacture part # 4000.

The Sanymetal Toilet Partition Toggle & Screw is used on there surface mounted hinges 9S7770 and 9S7360.  Hadrian uses a the same item.

The Sanymetal Toilet Partitions Keeper Bumper Concealed is for use with concealed latches that have 1-1/4" thick squared edged pilaster posts.  They are constructed of Zamac die cast metal that is chrome plated and then polished.  Strike and Keeper measures 1-1/4" high by 2-3/8" wide by 1-3/4" deep. Stop is 1/2" thick and projects out 1-1/8". The latching slot is 7/16" deep x 3/4" high. This Bathroom Toilet Door Keeper is designed for use on 1-1/4" thick round edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5510.  Shipped with mounting screws.

The Sanymetal Keeper Bumper For Concealed Latches constructed of Zamac die cast metal that is then chrome plated and polished.   And is designed for use on 1-1/4" thick square edged pilaster posts.  Keeper is 1-1/4" tall by 2-3/8" wide by 1-3/4" deep. The strike is a1/2" thick and the slot is 7/16" deep. The opening to mount it on the pilaster or post is 1-1/4" by 1-1/4".  Also known as a Bathroom Stall Strike and Keeper for Inswing/Outswing 1-1/4". Manufacture part # 5960.  Shipped with screws for mounting.
