Search results for: 'alcove clip for 1"-11/4" pilas'

The All American Toilet Partition Keeper Bumper for 1 1/4" Square Edge is for use with square edged 1-1/4" thick pilaster posts.  The keeper is constructed of die cast metal that is then chrome plated and polished.  The manufacture part number is 105PL.

The Knickerbocker Partition Top Hinge Casting is constructed of Zamac die cast metal and is not plated.  This piece is used on Knickerbocker, Global and General Partitions metal doors, there maybe more, but this is all we know at this point.  The outside measurements are 2-7/31" by 2-11/16" x 2-5/8", which is the measurement, less the tabs that go into the door.  The hole throgh the center has a diameter of 1/4".  The manufactures part number is 4646.

Partition Keeper Inswing 1-1/4" Square Edge Cast Stainless Steel

Cast stainless steel construction. The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5343.

Shipped with mounting screws.

The Partition Keeper Bumper- Outswing for 1-1/4" Sq Edge is for out swinging doors and square edged pilaster posts of 1-1/4" thickness.  The Keeper is constructed of die cast metal that is then chrome plated.  Used on many toilet partition manufacturers partitions, the manufactures part # is 40-8512354.

Partition Keeper Bumper For 1-1/4" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. The strike and keeper is 2-1/2" tall by 1-7/8" wide. The stop sticks out 3/4" and has a rubber bumper on it. The two mounting screws are 1-1/2" on center. This keeper bumper is designed for use on a 1-1/4" Post or Pilaster for outswinging doors. Also known as a Bathroom Stall Strike and Keeper-Outswing 1-1/4". Manufacture part # 5213.

Shipped with mounting screws.

Surface mounted unit dispenses 250 single or half-fold seat covers. Fabricated of 22 gauge type 304 stainless steel with satin finish. 15.75 in × 11 in × 1-7/8" in Stainless Steel. Also known as 0477-sm by American Specialties.

The Partition Bottom Hinge Assembly Cast Stainless Steel is for use on 1" Door and 1-1/4" thick square edged Pilaster Posts.  They are constructed of cast stainless steel.  Set includes bottom hinge, pin, door insert and mounting screws. Also known as a Bathroom Toilet Stall Bottom Hinge Kit. Manufacture part #63033.

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel, Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1849.

Shipped with screws

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

Concealed Partition Latch Keeper Bumper Outswing 1-1/4" Round Edge Cast Stainless Steel

Cast stainless Steel Construction. The outside dimensions are 2-3/8" wide by 1-1/4" high by 1-3/4" deep. Stop projects out 1-1/8" by 1/2" thick with a rubber insert. Designed for an 1-1/4" thick post round edge. Also known as a Bathroom Stall Strike and Keeper Outswing 1-1/4". Manufacture part # 5573.

Shipped with mounting screws.

Partition Door Pull 5" Between Screws Stamped Stainless Steel

Stamped stainless steel construction, 3/32" thick. The door pull measures 5-21/32" wide by 5/8" high by 1-11/16" projection with a 5" on center hole spacing. Also known as a Bathroom Stall Door Pull. Manufacture part # 6419.

Shipped with mounting screws.

Roll Type - Full Width Lever Action
Heavy gauge steel back with impact resistant plastic front
for Rolls 8"w x 8" Dia.
11"w x 16"h x 9"d

Toilet Partition Wall Bracket One Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 2-5/8" wide with the mounting holes 1-3/8" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall One Ear Wall Bracket, or Toilet Partition One Ear Wall Bracket. The manufacturers part number is 2274 and 650-1848. This bracket ships with all the needed fasteners.

Toilet Partition Bracket Two Ear For 1" Thick Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3" high by 3-3/4" wide with the mounting holes 2-3/4" on center. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The 8 holes are 1/4" diameter. All wall thicknesses are 1/8". This bracket is sometimes known as a Bathroom Stall Two Ear Wall Bracket, or Toilet Partition Two Ear Wall Bracket. The manufacturers part number is 2264 and 650-1839. This bracket ships with all the needed fasteners.

The One Ear Hinged Bracket Stainless Steel , measures 3" high by 2-1/2" deep by 1-1/4" and is designed for an 1-1/4" thick panel.  Hinge is 16 ga (.060") thick, Bracket is 14 ga (.075") thick. The one ear hinged bracket is Riveted and welded together.  This bracket is ideal for applications were the Pilaster and Panels are not at a 90 degree angle. Also known as a Bathroom Stall Hinged Wall Bracket. Manufacture part # 111369.

The General Top Hinge Pin 3/8" Dia 3-1/4" Long For Laminate is for plastic laminate restroom stalls.  The top pin measures 3/8" diameter by 3-1/4" long with 5/16-18 threads. It has a screw driver flat slot on one end. Also known as a Bathroom Stall Door Top Hinge Pin. Manufacture part # 98584.  It is constructed of threaded steel.

Toilet Partition U Bracket Chrome Plated For 3/4" X 1-1/2" X 1-3/8. If your toilet partition or bathroom stall wall bracket is cast with the number 1890 on the back, then you have the “U” Bracket for 3/4″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or Wall Bracket.

The Partition Inswing Keeper For Throw Latch for use on a 1-1/4" Square Post or pilaster.  They are constructed of Zamac die cast metal that is then chrome plated and polished.   The strike and keeper measure 2-1/2" high by 1-7/8" wide with a hole spacing of 1-1/2" on center. The stop is 2-1/2" tall by 3/4" wide with a rubber insert. The slot measures 13/16" high by 1/4" deep. Commonly known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5340.  Shipped with mounting screws.

The Partition Slide Bolt Latch 1-1/2" wide x 3-1/4 Long is constructed of cast stainless steel, and then brushed to the desired finish.  The hole spacing is 2-3/4" center to center.  This latch is used on Global Partition Corp and Accurate Partition Corp products.  The manufacture part numbers are  40-256300, 40-8562899, and 8698. This latch is Ada approved.

Roval Surface Mount Waste Receptacle 20826 Receptacle front and sides fabricated of 20 gauge type 304 stainless steel with satin finish. Capacity 11 gal. (42 L). Same as 20826 but with closed top, spring-loaded door. Capacity 12.8 gal. (48.8 L). Overall size 15-1/8"x23"x8-1/2"

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Napkin / Tampon Disposal Recessed in Wall

Body: Type 304 #22 ga stainless steel, #4 satin finish.

Flange: Type 304 #22 ga stainless steel #4 satin finish, drawn one piece construction with 1/4" returns to wall surface. (Without miters or welds)

Push Panel: Type 304 #22 ga stainless steel self closing push panel door. *International Graphic Symbols are optional.

Waste: Type 304 #22 ga stainless steel, removable type waste, secured by pin tumbler lock. Pin tumbler commercial quality locks, keyed like all other A & J cabinets. *(Optional finger grip in lieu of lock)

The Toilet Partition Coat Hook & Bumper 3-1/2" Projection x 2-3/4" High is constructed of Zamac die cast metal and then chrome plated and polished.  Coat hook base is 1-1/2" wide by 2-3/4" high, with screw spacing of 7/8" at the top. Hook projects out 1". Bumper projects out 3-1/2" with a rubber insert. Also known as a Bathroom Stall Coat Hook and Bumper. Manufacture part # 4260.  This product is the same as our 9OT285 and 9HA426.   We find this hooks used on Global Partition Corp and Accurate Partition Corp restroom stalls.

Bathroom partition chrome plated inswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 17800.

Bathroom partition chrome plated outswing door kit for square edge doors and posts. For 7/8" doors and 1-1/4" post. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27810.

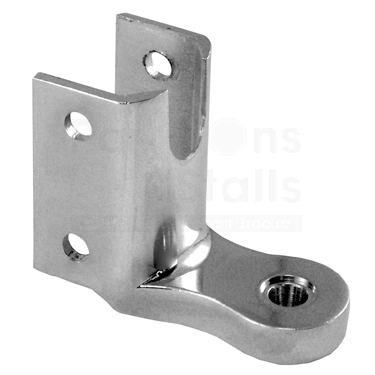

The Sanymetal Toilet Partitions SS Bottom Hinge For 1-1/4" thick Round Edged pilaster posts.  They are constructed of stainless steel cast.   The manufacturer part number is 3060, 3403  A=1-9/16".

Partition Bathroom Stall Door Heavy Duty Piano Hinge 57-1/2", Left Hand In Swing, Right Hand Outswing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2".  9" centers with 6 holes on each side.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Roval Automatic Roll Towel Dispenser & Waste Receptacle Fabricated of 18 gauge type 304 stainless steel. 17.8 gal. (67.2 L) removable waste receptacle. Wall Opening: 15 13/16” x 54 11/16” x 10”

Single Hook Chrome Plated Projects 1-3/4", also known as UC10.

The Sanymetal Toilet Partitions Coat Hook Bumper has a 3" projection.  The coat hook base measures 2" by 1-11/16" with a 1-1/8" hole spacing. The hook projects out 1-13/16". The bumper projects out 3" with a rubber insert on the tip. They are constructed of Zamac die cast metal that is then chrome plated and polished.   Also known as a Bathroom Stall Hook. Manufacture part # 4280.  Shipped with mounting screws.

Used with ADA Grab Bars For concealed mounting to the flange and set screw.

Roll Type Bottom Pull Towel Dispenser.
Impact resistant plastic Roll Type Paper Dispenser.
For Rolls 8"w x 8"dia.
Towels are cut automatically
sheets are cut at 11" length
11"w x 16"h x 9"d

Kit includes rod with exposed flanges.

Flanges fabricated of 20ga. stainless steel with a satin finish. Flanges have (3) countersunk 13/64" dia. holes to accept #10 flat or oval head screws furnished by others.

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 60′′ require ceiling hanger Model No 1204-C18.

For use with standard shower curtain model No ’s 1200 or 1200-V having 60′′ length and standard hooks Model No 1200-SHU unit should be installed with rod centerline 74-1/2′′ AFF or 67′′  above tub rim to obtain 6′′ bottom overlap.

Restroom Door Kit Outswing 7/8" Door & 1-1/4" Post Cast stainless steel. All hardware screws included for installation of these products. All hardware is a gravity close so your door self closing every time. Also known as part number 27813.
