Partition panel bracket kit for 3/4" thick panel, Two eared bracket that is chrome plated. All kits include security fasteners to install the brackets. Also known as 615010.

Toilet Partition Continuous U Bracket For 1" Thick Panels Aluminum

Constructed of extruded anodized aluminum. Base is 1-5/16" wide by 54" long, with screw holes every 13" or so. The legs project out 1-3/8" with the thru hole at 1" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous U Bracket. The manufacturers part numbers are 2794, 650-1968, 650-1968-54 and U Channel 1 x 54. These brackets are shipped with all the needed fasteners.

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-15/16" with the mounting screws are 2-3/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1839.

Shipped with screws

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

If your toilet partition (bathroom stall) wall bracket is stamped 1620, then chances are you have the Two Ear Wall Bracket for 3/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3″ long with 2-7/32″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket

Partition Continuous One Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2334, one ear 1" x 57, and 650-9750-58. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

If your toilet partition (bathroom stall) wall bracket is cast 1760, then chances are you have the One Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-21/32″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

ASI Matte Black twin hide a roll toilet paper dispenser is surface mounted. This unit holds two rolls (5-1/4") diameter roughly 1800 sheets. Designed so that when bottom roll is used top roll should drop down in place. Product comes with theft resistant spindles. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

ADA Partition Slide Latch with Occupied Symbol. Stainless steel door lock surface mounted for 1" doors, this can be used for doors less than 1" if the rod is cut down between the two pieces. All hardware included for installation. This manufactures part number is 50553. Hole spacing is 3-1/2".

If your toilet partition (bathroom stall) wall bracket is cast 1840, then you have the One Ear Wall Bracket for 1-1/4″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-3/4″ long with 1-1/2″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Aluminum Continuous Two Ear Bracket 1/2" X 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2674. These brackets are shipped with all the needed fasteners.

Toilet Partition "U" Wall Bracket For 7/8" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-1/8". Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1909.

Shipped with screws

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel Aluminum

The Matte Black Hadrian Headrail is constructed of aluminum and designed to fit over the top of a 3/4" Pilaster. Comes in lengths of 60", 74" and 96" and are able to be cut down to size needed. Headrails help provide stability for partitions. Known as manufacturers part number 670060-BLK, 670074-BLK, and 670096-BLK.

Toilet Partition Continuous One Ear Wall Bracket For 1 1/4" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1-1/4" for 1-1/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2354, and 650-9186-57. These brackets are shipped with all the needed fasteners.

Toilet Partition Stainless Steel Continuous U Bracket, 71", 1"x1-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge. U bracket is for 1" wide partitions and is 1-1/2" height and 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous U Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182369

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

If your toilet partition (bathroom stall) wall bracket is stamped 1750, then chances are you have the Two Ear Wall Bracket for 1″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 3-15-16″ long with 3″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall (toilet partition) Two Ear Bracket or Wall Bracket.

Two Ear Stainless Steel Partition Bracket for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 3-1/4". The screw holes are 1/4" diameter at 8 places. This is also known as 2209. The stainless steel is flat and rolled to form a two ear partition bracket.

Toilet Partition Bracket Two Ear For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 1-1/2" high by 3-3/4" wide, with mounting screws at 2-3/4" on center. Legs project out at 2-3/4" with the thru hole at 2-1/2" for the back of the base. The legs are 1" apart. Also known as a Bathroom Stall Two Ear Wall Bracket and Toilet Partition Two Wing Wall Bracket. The manufacturers part numbers are 1754, 650-1839, and 40-8445210. Bracket is shipped with all the fasteners.

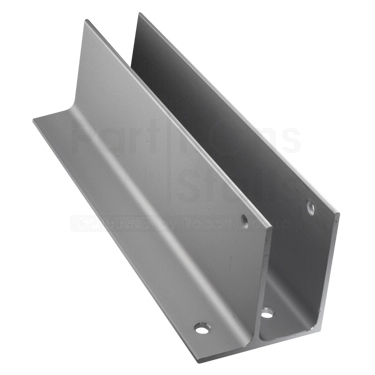

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Two Ear Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 2-1/2" with the thru hole at 2-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear 1". Manufacture part # 1613.

Ships with mounting screws.

Comtec Stealth Brackets for Integral Hinges 4 brackets included. These brackets help support the plastic pins used with the integral hinge pin system. These brackets help to reinforced the hinge pins so they do not break or the door breaking at the top and bottom.

The Matte Black Hadrian Continuous U Bracket is constructed of stainless steel. This continuous U bracket is designed for 1/2" thickness material and measures 57-1/2" in length. Bracket comes with fasteners to install. Known as manufacturers part number H60258-BLK.

The Matte Black Hadrian Two Ear Bracket is constructed of stainless steel and measures 3-1/8"Wx1-1/4"Hx3-1/8"L. This two ear bracket is designed for 1/2" thickness material. It is recommended that 3 bracket be used for panels of 58" height. Can be used on partitions or urinal screens. Bracket comes with fasteners to install. Known as manufacturers part number 672115-BLK.

Toilet Partition Two Ear Wall Bracket For 1 1/4" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" hole spacing. Bracket walls are 1/8" thick. The legs project out 2-1/2" with the thru holes at 2-1/8" from the bottom of the base. Also known as a Bathroom Stall Two Ear Wall Bracket, or Two Ear 1". Manufacture part # 1833

Shipped with mounting screws.

Aluminum One Ear Bracket 1/2" Panel, 2-1/2" X 57-1/2". Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1/2" for 1/2" thick panels. Sometimes known as Toilet Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2094. These brackets are shipped with all the needed fasteners.

Partition "U" Bracket Chrome Plated 1" X 1-1/2" X 1-3/8" . If your toilet partition or bathroom stall wall bracket is cast with the number 1910 on the back, then you have the “U” Wall Bracket for 1″ thick toilet partition panels. The wall bracket is usually mounted on the wall or the pilaster to mount the toilet partition stall panels. This bracket is 1-1/4″ wide x 1-3/8″ tall, with the through hole located at 1″ from the back. If features 4 holes with a 1/4″ diameter, with two of them on the base. The bracket is made of a die cast material that is then polished chrome plated. This bracket is sometimes called a Toilet Partition or Bathroom Stall “U” Bracket, or “U” Wall Bracket.

Aluminum 2 piece wall bracket kit typically used with toilet partition panels, but have various other uses. The overall length of the brackets are 2-1/2" x 1-1/2" x 1-1/2". The holes are 1/4" diameter. This item also know as 1864. All hardware included with brackets and note these are 2 piece L brackets.
