Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

If your toilet partition (bathroom stall) wall bracket is stamped 1650, then chances are you have the One Ear Wall Bracket for 7/8″ thick toilet partition panels. This brackets base is 1-3/8″ wide x 2-1/8″ long with 1-1/8″ center to center hole spacing. The distance from the bottom of the base to the screw holes on the legs is 2-1/8″. The bracket is made of a die cast material that is then chrome plated. The bracket sometimes goes by the name Bathroom Stall One Ear Bracket, Toilet Partition One Ear Bracket, Single Leg Bracket or Wall Bracket.

Partition Inswing Surface Keeper 1-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The keeper base is 2-1/2" tall by 1-3/32" wide. The latch face measures 2-1/2" tall with a 7/8" projection. The hole spacing is 1-1/2". The slot measures 5/16" by 1-9/16". Also known as a Bathroom Stall Keeper-Inswing Flat. Manufacture part # 5163.

Shipped with mounting screws.

Partition panel bracket kit for 1" panel, Two eared chrome plated bracket. Part includes all security fasteners to install the brackets. Also known as 615030.

Toilet Partition One Ear Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-5/16" with the mounting screws are 1-13/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1659.

Shipped with screws

Partition panel bracket kit for 1" thick panel, One eared bracket that is chrome plated. All bracket kits include security screws to mount the brackets. Also known as 615050.

U Bracket Stainless Steel for 1/2" Panel. This is used with a 1/2" thick panel only. The hole spacing is 1-1/2" and height is 3", and sticks out from the wall 2-1/2". The overall width is 5/8". This is also known as 2189. The stainless steel is flat and rolled to form a two ear partition bracket.

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and chrome plated. Includes security screws for installation. Also known as 615810.

#12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

Partition Anti-Grip Headrail 1" X 65" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 65" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

Replacement roller for the Control-O-Roll Toilet Paper Dispensers 6-1/2" wide

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Thick Doors- Square Edge for Plastic Laminate
All Hardware included

Concealed Latch Fix it Kits for Powder Coated Steel

For 1" Thick Doors- Round Edge for Powder Coated Steel
All Hardware included

Toilet Partition Keeper For Inswing Doors 1-7/8" Between Screws Stainless Steel

14 gauge (.075" thick) stainless steel construction. Keeper is 2-7/8" high x 1-13/16" wide with 1-7/8" hole spacing. Lip is 9/16" and the slot or cut out is 7/32" x 1". Also known as Bathroom Stall Keeper Inswing. Manufacture part # 6319.

Shipped with screws.

Stamped SS Continuous 'U' Bracket 1/2" x 1-3/8" X 57". 18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Manufacturer part # 2669. Screws included with bracket.

Toilet Partition Stainless Steel Continuous Two Ear Bracket, 71", 1/2"x2-1/2" 18 Gauge.

Stainless Steel Construction 18 gauge.Two ear bracket is for 1/2" wide partitions and is 2-1/2" height by 3" wide by 71" long. Holes are typically spaced every 13-1/2" vertically. This bracket is also known as a Full Length Toilet Partition Continuous Two Ear Bracket 71". Bracket has rounded edge radius. Designed to attach pilasters and/or panels to walls. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182679

One Ear Pilaster Bracket Kit for 3/4" Post are available for quick deliveries and cast stainless steel plated. Includes security screws for installation. Also known as 615813.

Partition panel bracket kit for 1/2" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615003. Global's 40-8275020.

Generic Plastic Rod fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. This is the replacement hinge pin on there Solid Plastic bottom hinges. Also known as a Bathroom Stall 8" Bottom Repair Kit.  Manufacture part # 8475.

Partition Door Pull 3-1/2" Between Screws Cast Stainless Steel

Cast stainless steel construction. The pull measures 4-3/4" wide and projects 1" with a hole spacing of 3-1/2". The mounting holes are threaded for a 10-24 screw. Also known as a Bathroom Stall Door Pull. Manufacture part # 5403.

Partition panel bracket kit for 1" panel, Two eared cast stainless steel plated bracket. Part includes all security fasteners to install the brackets. Also known as 615033.

Toilet Partition Continuous 'U' Wall Bracket For 1" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2369.

Screws included with bracket.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 54" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2879.

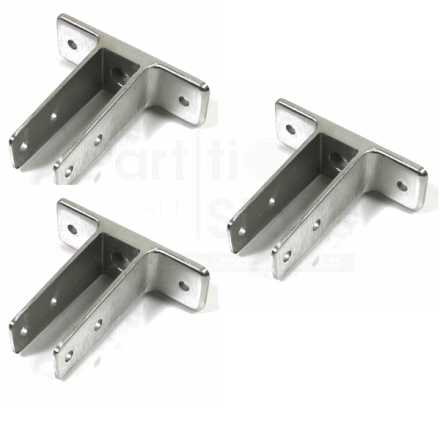

Partition screen urinal bracket kit for 1" thick panel, two ear bracket that is cast Stainless Steel plated. All bracket kits include security screws to mount the brackets. Also known as 615513.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 54" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2869.

Stamped SS Continuous Two Ear Bracket 1/2" X 2-1/2" X 41". 18 gauge (.05" thick) stamped stainless steel construction. Base is 3" x 41" long. Mounting holes are 2-3/8" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13". Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2059.

Concealed Latch Fix it Kits for Plastic Laminate Doors

For 1" Square edge for Plastic Laminate
All Hardware included

#12 X 2-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91903. This uses a Torx bit to drive screw.

Stainless Steel #12 X 2-1/2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91909. This uses a Torx bit to drive screw.

Toilet Partition Keeper Bumper Inswing With 1-7/8" Between Screws

Stainless steel construction, 14 gauge (.075" thick). Plate measures 2-7/8" high x 1-7/8" wide including lugs. Lugs are 7/8" high and 9/16" thick. Screw holes are 1/4" diameter. Sometimes called Bathroom Stall Strike and Keeper-Inswing/Outswing Flat. Manufacuture part # 6329 and 650-8226.

Screws are included with this keeper.

Toilet Partition Continuous Two Ear Wall Bracket For 1/2" Panel X 57" Long Stamped Stainless Steel. 18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2679.

ADA Concealed Latch Fix it Kits for metal partitions. For 1" thick doors with a round edge. All Partition security hardware included. ADA Stainless Steel Slide Bolt Latch with Indicator, Keeper and with Stainless Steel "U" Shape cover for both sides of door. Also known as 126629.

Toilet Partition SS L Channel 2-1/2" X 57" are great for extra privacy in the bathroom toilet stalls. This product can be used for any thickness material by using two units. This product is also known as 2689. Security screws included.
