Partition Door Piano Hinge 57", 14 Gauge SS,1/4" Pin with 20 Degree Cam Close. This hinge keeps the door open 20 degree so the user knows there is nobody in the restroom toilet stall. This is the most Heavy Duty Continuous Full Length Hinge we sell. 14 gauge (.075" thick) stainless steel construction with a 1/4" diameter hinge pin. The hinge leafs are angle cut so your door will close with the camming action. The hinge is 3" wide when laid flat, and 57" long. Screws are spaced 11" apart and the holes are 9/32" diameter and has 6 sets of holes. Hinge can be raised up 3/8" for emergency entry. Also known as a Restroom Toilet Stall Full Length Continuous Hinge. Manufacturer part #650-9401 and 160039. The hinges must be mounted flat when door is shut. For inside swing the hinges are mounted on the inside of the stall. For the outside they must be mounted on the outside.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

The Top Hinge Assembly Cast SS is for use with 1" Doors, and 1-1/4" thick square edged pilaster posts.  The hinge is constructed of cast stainless steel that is then brushed to the proper finish.  The set included the top hinge, pin, door insert and mounting screws.  Also known as a Bathroom Toilet Stall Top Hinge Kit. Manufacture part #63043.

Toilet Partition Urinal Screen Bracket Chrome Plated. This bracket is for any thickness panel. The bracket is 2 separate pieces. The base is 1-1/2" x 1-1/2". The base mounting hole is 1" from the inside face of the leg face. The bracket projects out 2-1/2", and the holes are at 2-1/8" and 1-1/8" from the mounting face. The brackets are made of a zamac die cast material and polished chrome plated. This bracket is also known as a Two Piece Bracket - Two Holes, Toilet Partition Bracket, or Bathroom Stall Bracket. The manufacturers part number is 1860 or 650-6437. The bracket is shipped as two pieces plus all of the fasteners.

Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

Generic Plastic Rod fits most manufactures like Global, Hadrian, Accurate Toilet Partitions. These might not fit exactly. Shave off two sides to make smaller. The configuration is the same for all manufactures, some just a little wider in the diameter. This is the replacement hinge pin on there Solid Plastic bottom hinges. Also known as a Bathroom Stall 8" Bottom Repair Kit.  Manufacture part # 8475.

Partition Surface Mounted Stainless Steel Slide Bolt Latch 1-7/8" Screws. Stamped stainless steel construction. Base is 2-7/8" high by 1-3/8" wide by 5/32" thick. Latch bolt is 2-1/4" long x 13/16" wide x 1/8" thick, and the slide distance is 25/32". Also known as a Bathroom Stall Stainless Steel Slide Latch and Toilet Partition Locks. Manufacture part # 6309. Shipped with mounting screws.

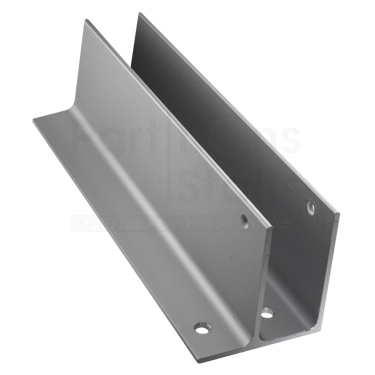

Toilet Partition Continuous 'U' Wall Bracket For 3/4" Thick Panel 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 1-1/8" x 57" long. Legs project out 1-1/2" with the thru hole at 1-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Continuous U Wall Bracket. Manufacturer part # 2069.

Screws included with bracket.

Partition Anti-Grip Headrail 1" X 95" Type B Aluminum

Extruded anodized aluminum construction. The cross section measures 2-3/4" high by 1-3/32" by 95" long. The part that fits on top of the pilaster is 1" wide by 3/4" deep. The wall thickness on this part is 3/64". Also known as a Bathroom Stall Headrail. Manufacture part # 80042.

This product is usually used on Solid Plastic (HDPE) Toilet Partitions.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 54" long. Legs project out 1-3/4" with the thru hole at 1-3/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Manufacturer part # 2859.

Shipped with screws.

Toilet Partition Two Ear Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/32" with the mounting screws are 2-21/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1629.

Shipped with screws

Toilet Partition "U" Wall Bracket For 3/4" Thick Panel Stamped Stainless Steel. 14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 15/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1899. Shipped with screws.

Toilet partition square edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1" thick by 3" high. This size pilaster post shoe is not split on either end. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with pilaster mounting.

Toilet Partition 'U' Wall Bracket For 1" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-13/16" . Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thrue holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1919.

Shipped with screws

Toilet partition square edge pilaster shoe, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -3/4" thick by 3" high. This size pilaster post shoe is not split on either end. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with pilaster mounting.

Chrome Plated Toilet Partition Keeper Bumper Flat Stop 1-1/2" Between Screws, For Outswing

Polished chrome plated Zamac construction. The strike and keeper measure 2-1/2" high by 1-5/8" deep by 1/8" thick. The stop has a 3/4" projection and is 9/16' deep with a rubber insert. The mounting holes are 1-1/2" on center. Also known as a Bathroom Stall Strike and Keeper Outswing Flat. Manufacture part # 5260

Shipped with mounting screws.

Chrome Plated Toilet Partition Keeper Bumper Inswing 1-1/4" Round Edge

Polished chrome plated Zamac die casting. The strike and keeper measures 1-7/8" wide by 2-1/2" tall by 1-1/2" deep. The stop measures 2-1/2" tall and projects out 3/4" and has a rubber insert. The two slots have a 1/4" opening by 13/16". Also known as a Bathroom Stall Strike and Keeper Inswing 1-1/4". Manufacture part # 5330

Partition Keeper Bumper For 1" Square Post Outswing Cast Stainless Steel

Cast stainless steel construction. Strike and Keeper measures 2-1/2" high by 1-15/16" wide. Stop is 17/32" thick and projects out 13/16". The screw holes are 1-1/2" on center. This Bathroom Toilet Door Keeper is designed for use on 1" thick square edge posts or pilasters. Also known as a Bathroom Stall Strike and Keeper for Outswing 1". Manufacture part # 5723.

Shipped with mounting screws.

Toilet Partition Two Ear Wall Bracket For 7/8" Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 3-13/16" with the mounting screws are 2-13/16" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and Two Wing Bracket. Manufacturer part # 1639.

Shipped with screws

Toilet partition square edge pilaster shoe split, stamped stainless steel construction. Pilaster Shoe measures 2" to 24" wide by -1-1/4" thick by 3" high. This size pilaster post shoe is split on one end for easy installation. Also known as a bathroom stall pilaster post shoe square edge. Used for the base of the support system with floor mounted pilaster.

Toilet Partition One Ear Wall Bracket For 1-1/4" Panel, Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 2-13/32" with the mounting screws are 1-15/32" on center. Leg project out 2-1/2" with the thru hole at 2-1/8" from the base. Also known as a Bathroom Stall Wall Bracket and One Wing Bracket. Manufacturer part # 1849.

Shipped with screws

Toilet Partition "U" Wall Bracket For 7/8" Thick Panel Stamped Stainless Steel

14 gauge (.075" thick) stamped stainless steel construction. Base is 1-1/2" x 1-1/8". Leg project out 1-1/2" with the thru hole at 1-1/8" from the base. The 4 thru holes are 1/4" diameter, two of them are the mounting holes. Also known as a Bathroom Stall U Wall Bracket. Manufacturer part # 1909.

Shipped with screws

Chrome Plated Toilet Partition Bumper Keeper For 1" Square Edge Post

Polished chrome plated Zamac construction. The strike and keeper measures 2-1/2" tall by 1-15/16" wide by 1-17/32 deep. The mounting holes are 1-1/2" on center. The stop measures 7/8" wide by 17/32" deep with a rubber insert bumper. Also known as a Bathroom Stall Strike and Keeper Inswing/Outswing 1". Manufacture part # 5730.

Shipped with mounting screws.

Toilet Partition Two Ear X- Long Urinal Wall Bracket For 1" Panel Cast Stainless Steel

Cast stainless steel construction. Base is 1-1/2" x 4" with 3" centers on the mounting holes. The bracket legs project out 3-1/2" with the thru hole at 3-1/8" from the back of the base. Walls are 1/8" thick. Also know as a Bathroom Stall Partition Urinal Screen Bracket - Two Ear Extra Long 1". Manufacture part # 1283.

Ships with mounting screws.

Toilet Partition Continuous Two Ear Wall Bracket For 3/4" Panel X 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 57" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 14" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2089.

Toilet Partition Continuous Two Ear Wall Bracket For 1" Panel X 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 3-11/16" x 54" long. Mounting holes are 2-15/16" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall Two Ear or Two Wing Wall Bracket. Manufacturer part # 2869.

Toilet Partition Continuous Alcove "H" Bracket For 1" Panel x 57" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Bracket is 1" x 3-1/2" x 71" long. Legs project out 1-3/4" with mounting holes typically spaced every 14". Also known as a Bathroom Stall Alcove Bracket or "H" Bracket. Bracket has rounded edge radius. Designed to attach pilasters to panels inline. Continuous brackets help eliminate sightline into stalls.

*Fasteners not Included *

Manufacture part # 182859

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a right hand inswing and left hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7273. All hardware included to install. Maximum door weight is 80lbs.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel x 54" Long Stamped Stainless Steel

18 gauge (.05" thick) stamped stainless steel construction. Base is 2-1/2" x 54" long. Mounting holes are 1-15/32" center to center. Legs project out 2-1/2" with the thru hole at 2-1/8" from the base. Mounting and thru bolts every 13" or so. Also known as a Bathroom Stall One Ear or One Wing Wall Bracket. Manufacturer part # 2879.

Heavy Duty Piano Hinge Stainless Steel 57-1/2", Left Hand Outswing, Right Hand In Swing is constructed of 14 gauge (0.75" thick) stainless steel.  The internal spring makes this a self closing hinge. This toilet partition door hinge is heavy duty with a 1/4" pin for extra strength. The hinge measures 3" laying flat by 57-1/2". 9" centers with 6 holes on each side.

The Surface Mount Door Hinge Set LH In/ RH Out is for use on Right Hand Out Swing and Left Hand In Swinging doors. They are self closing. The hinges are constructed on stamped stainless steel that is then polished. The package includes the top and bottom hinges and the mounting screws. Hole spacing right to left 2-1/4", up and down 1-1/2", overall 3" width by 2-1/2" height.  Also known as a toilet partition or bathroom stall gravity surface hinge set. Manufacture part number is 7083.

Toilet partition full length aluminum door stop for 1" panel Inswing doors. This product is clear anodized aluminum. This full length door stop with block the gap between the door and the post next to it. For an inswing the slot is 3/8"x1-1/4" wide for the slide latch to latch it. The door keeper and strike is 54" in length and has 5 holes spaced at 13" apart and starts at 1" from the top and the bottom. Also known as 134304 strike & keeper channel. Includes all hardware.

Surface Mounted Stainless Hinge sets in stock for quick deliveries, this version is a left hand inswing and right hand outswing hinge set, always facing the toilet compartments. The overall wide is 3-1/4" x 3-5/32"ht, the hole spacing is 2-5/16" and 1-1/2"ht with 1/4" holes. This is a gravity type hinge that uses a stainless adjustable pintle to close the door. This part is also known for 7283. All hardware included to install. Maximum door weight is 80lbs.

Toilet Partition Continuous Two Ear Wall Bracket For 1"Panel Aluminum

Constructed of extruded anodized aluminum. Base is 3-3/4" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous Two Ear Wall Bracket. The manufacturers part numbers are 2344, and 650-4029. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 54" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 1" for 1" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 2878, and 650-9750-54. These brackets are shipped with all the needed fasteners.

Toilet Partition Continuous One Ear Wall Bracket For 1" Panel Aluminum

Constructed of extruded anodized aluminum. Base is 2-5/8" wide by 57-1/2" long, with screw holes every 13" or so. The legs project out 2-3/4" with the thru hole at 2-3/8" from the back of the base. The legs have a clearance of 3/4" for 3/4" thick panels. Sometimes known as Bathroom Stall Continuous One Ear Wall Bracket. The manufacturers part numbers are 650-4031. These brackets are shipped with all the needed fasteners.
