Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

ASI Matte Black grab bars are surface mount and come with conceales snap flange harwdare. This finish is only available in a 1-1/2" diamater bar, constructed from 18 guage stainless steel and ADA Complaint. Uses 2 holes for the mounting plate and 3 dimples for attaching the cover to plate.  The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Security Chase Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 rods welded to the back of the flange for wall mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

*** DISCOUNTINUED SIZES 36", 42" AND 48" IN 2024-25 ***

Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

Swing Up Grab Bar (1-1/4" O.D) - Smooth - With Detent Stops at 0°, 45° and 90° Positions.Features include flange of 3″ diameter, 1/8″ thick type 304 stainless steel with a satin finish; exposed mounting screw holes are drilled and countersunk. Swing Up Grab Bar Locks firmly into place when lifted into an upright position. 1-1/4" OD. Projects 30" from wall. When properly mounted, swing-up type bar will sustain a static load of 250 lbs. Known as 10-3414.

Security Front Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 holes on each flange for exposed mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.

ASI Matte Black single roll toilet tissue holder is a surface mounted unit. Heavey gauge concealed mounting brackets allow this holder to support a standard rolls of toilet paper and comes with chrome rollers. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

ASI Matte Black double roll toilet tissue holder is a surface mounted unit. Heavey gauge concealed mounting brackets allow this holder to support 2 standard rolls of toilet paper and comes with chrome rollers. The product is stainless steel with a matt black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Stainless Steel unit Tumbler lock, sheet metal and heavy duty piano hinge width 11"w x 15"h x 4"d.
Dispenses 400 C-fold or 525 multi-fold paper towels without adjustment or adapters. Fabricated of 22 gauge stainless steel with #4 satin finish. Fitted with tumbler lock and heavy duty stainless steel piano hinge.

Introducing American Specialties Adjustable Ada tilt mirrors. Offers visibility for wheelchair users or returns to upright position. 18 gauge stainless steel frame with plate glass. Tilts full 6 degrees. 15 Year warranty against silver spoilage. Frames are roll formed to make the 1/2” x 1/2” x 1/2” channel, the corners are then mitered and secured with stainless steel rivets, with a #4 satin finish. Stainless steel hinge pivot brackets and hinge attached mirror to wall. Also known as 0600 series mirrors.

Roval Surface Mount Sanitary Waste Receptacle, 20852 Lid and cabinet are each drawn one piece construction. Lid is secured to the cabinet with a heavy-duty 9/64" multi-staked concealed piano hinge

ASI Matte Black toilet seat cover dispenser is surface mounted and can dispense 250 single or half-fold seat covers. Fabricated of 22 gauge type 304 stainless steel with satin finish. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

15-3/4” x 11” x 1-7/8” (400 x 279 x 48 mm)

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior diameter is 5" with 4-1/2" depth to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7-1/8" (181mm) Square and features front mounting holes. Designed in mind for Behavioral Health and Detention Centers. Mounting hardware included.

Overall Dimensions:

7-1/8″ x 7-1/8″ x 4″ (181 x 181 x 102 mm)

Wall Opening:

5-5/16″ dia. x 5″ min. depth (135 x 127 mm)

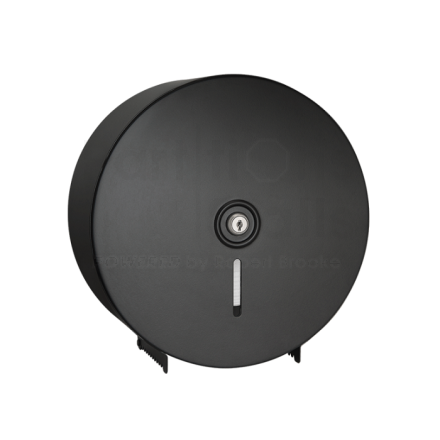

ASI Matte Black round 10" roll toilet tissue dispenser is surfaced mounted. This unit accepts one roll up to 10" (254mm) in diameter of 1-5/8" or 2-1/4"(41mm or 57mm) core diameter. Features a viewing slot and tumbler lock on front. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

10-5/8” x 10-5/8” x 4-1/2” (270 x 270 x 114 mm)

Recessed toilet tissue holder that is fabricated of 14 gauge type 304 stainless steel. Offers a satin finish exterior and glass blasted insterior finish. Interior depth 4-1/2" with 5" diameter is to accomodate a single standard roll of tissue tissue paper. Mounting flange is 7" (179mm) Square and includes Mounting Hardware. Designed in mind for Behavioral Health and Detention Centers.

ASI Matte Black twin hide a roll toilet paper dispenser is surface mounted. This unit holds two rolls (5-1/4") diameter roughly 1800 sheets. Designed so that when bottom roll is used top roll should drop down in place. Product comes with theft resistant spindles. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

6″ x 12″ x 6 1/2″ (152 x 305 x 165 mm)

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

C-Fold, Multi-Fold Paper Towel Dispenser
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
13"w x 26"h x 4"d

Roval Recessed Paper Towel Dispenser, 20452 Dispenses 600 C-fold or 800 multi-fold paper towels. Door fabricated of 18 gauge type 304 drawn one piece stainless steel with satin finish. Door secured with 3/16" staked piano hinge and flush tumbler lock. Wall Opening: 11 3/16" W x 26 1/4" H x 4" D

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

"C" Fold or Multi-Fold
Tumbler lock, stainless steel and heavy duty piano hinge
Holds 275 Multi-fold or 200 C-fold towels
11"w x 8"h x 4"d

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep.

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
15"w x 54"h x 4"d

C-Fold, Multi Fold Towel Dispenser and Waste Receptacle
22 gauge Type 304 Stainless Steel
Heavy duty door and piano hinge
Tumble lock on doors and waste receptacle
600 C-fold or 800 Multi-fold towel capacity
12 gallon waste receptacle
h15"w x 54" x 4"d hole opening
17-1/4"x56"ht x 4" overall dimension.

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 600 C-fold or 800 multi-fold paper towels. 14.8 gal. (56 L) removable waste receptacle. Door made of 18 gauge type 304 stainless steel with a heavy-duty 3/16" staked piano hinge. Wall Opening: 15 3/4" W x 54 1/2" H x 4" D

ASI Matte Black Horizontal liquid soap dispenser is surface mounted and holds 40 oz of soap. Unit offers tamper resistant refill indicator and bush buton dispensing. Refill manually using hinged door at top with special key(included). The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

Roval Paper Towel Dispenser & Removable Waste Receptacle. Dispenses 350 C-fold, 475 multi-fold paper towels. 2.96 gal. (11.2 L) removable stainless steel waste receptacle with a tumbler lock. 22 gauge type 304 stainless steel door in a satin finish with a flush lock and a heavy-duty 3/16" staked piano hinge on door. Wall Opening: 12 3/4" W x 26 1/2" H x 4 1/4" D

Napkin Disposal w/o Shelf Stainless Steel Surface mount 16 gauge utility shelf. Overall Size 7 1/2" x 10" x 3 7/8".  Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction. American Specialties 0852 stainless steel napkin disposal unit.

ASI Matte Black Vertical liquid soap dispenser is surface mounted and holds 40 oz of soap. Unit offers tamper resistant refill indicator and bush buton dispensing. Refill manually using hinged door at top with special key(included). The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

The Stainless Steel Folding Utility Shelf has 14-5/8" projection by 5-13/16" width.  An internal heavy duty spring in the hinging mechanism returns the shelf to the up right position when not in use.  The shelf is fabricated of 18 gauge stainless steel with a #4 satin or brushed finish.  The leading edges are radiused  and deburred to prevent injury.  The support bracket is fabricated of 14 gauge stainless steel, and are also radiused and deburred to prevent injury.

ASI Matte Black paper towel dispenser multi/c-fold is surface mounted and is fabricated of 22 guage stainless steel. Dispenses 400 c-fold or 525 multi fold paper towels without adapters or adjustments. Features a tumbler lock(key included), refill viewing slot on sides and heavy duty stainless steel piano hinge. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

11-1/8″ x 14-5/8″ x 4″ (282 x 371 x 101 mm)

ASI Matte Black liquid soap dispenser is surfaced mounted and holds 48 oz of soap. Refill window is tamper resistant with concealed fastening and offers vandal resistant top hinges filler. The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Dimensions

7-1/4” x 6-1/2” x 3-11/16” (184 x 165 x 94 mm)

Spout Projection: 15/16”

Soap Requirements:Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.

Viscosity Range (mPa·s or cP): 100 – 2.5k

pH Range: 5.5 ~ 8.0
