Toilet Grab Bar Wall Mounted ADA Accessible Compartments Require: 1-1/4" dia. bars, Exposed Mounting. Type 34 from American Specialties. Manufacture part number 3434 Straddle Grab Bar by American Specialties. When installing to meet ADA Compliance, top of grab bar would need to be mounted minimum 33" Above Finished Floor to 36" maximum AFF.

ASI Matte Black grab bars are surface mount and come with conceales snap flange harwdare. This finish is only available in a 1-1/2" diamater bar, constructed from 18 guage stainless steel and ADA Complaint. Uses 2 holes for the mounting plate and 3 dimples for attaching the cover to plate.  The product is stainless steel with a matte black powder coated finish. With a matte black finish this product offers a more sophisticated and bold look while being aesthetically appealing to the eye.

Security Chase Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 rods welded to the back of the flange for wall mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

*** DISCOUNTINUED SIZES 36", 42" AND 48" IN 2024-25 ***

Grab Bar L 54" x 42" ADA Accessible Concealed Snap on mounting,1-1/2" Diameter. Snap Flange (1-1/2" O.D) Smooth - Horizontal Grab Bar, 54" x 42". Snaps over mounting flange dimples to conceal screws and concealed mounting flange of 3-1⁄8″ O.D. diameter with 2 screw holes and 3 locking dimples; 1/8″ thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16″ diameter. Known as 10-3857.

Snap Flange (1-1/4" O.D) Smooth - Straight Grab Bar w/ Intermediate Support, 48". Features include cover that snaps over mounting flange dimples to conceal screws and concealed mounting flange of 31/8" O.D. diameter with 2 screw holes and 3 locking dimples; 1/8" thick, type 304 stainless steel. Cover is type 304 stainless steel with a satin finish and 22 gauge, 3-3⁄16" diameter. Also know as 10-3702-48.

Grab Bar 30" x 33" Ht ; ADA Accessible Compartments Require: 1-1/2" diameter with concealed snap on flange 30" x 33"ht.  2nd leg sticks out 5" x 12"ht. Right hand shown, left hand is on opposite side.

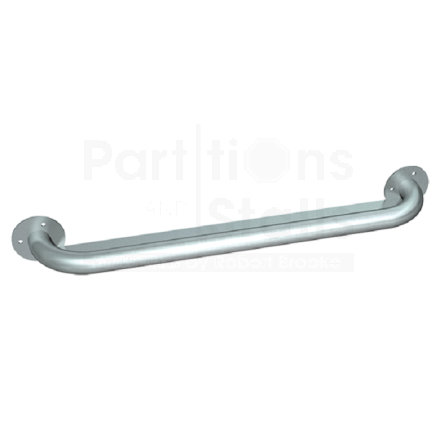

The Handicap Grab Bar is fabricated of #18 gauge stainless steel with a #4 satin finish.  They are available in 1 1/4” and 1-1/2” outside diameter.  All bars maintain a constant 1 1/2” offset, which is the distance between the inside of the bar and the mounting surface.  The mounting flanges have a 3” diameter.  We offer two types of mounting,  exposed screw mounting and snap on flange concealed. When properly installed they will easily support up to 250 pounds.  The recommended height for mounting these grab bars is 33 to 36” above the finished floor, but heights vary depending on local codes.  The overall length of a 12" grab bar is 15" due to the 3" diameter flanges.  Due to the various materials that these are mounted on, screws are not included.

Swing Up Grab Bar (1-1/4" O.D) - Smooth - With Detent Stops at 0°, 45° and 90° Positions.Features include flange of 3″ diameter, 1/8″ thick type 304 stainless steel with a satin finish; exposed mounting screw holes are drilled and countersunk. Swing Up Grab Bar Locks firmly into place when lifted into an upright position. 1-1/4" OD. Projects 30" from wall. When properly mounted, swing-up type bar will sustain a static load of 250 lbs. Known as 10-3414.

Security Front Mount Grab Bar fabricated with 18 gauge, 1-1/2" diameter tubing and flanges are 1/8" (3mm) thick stainless steel type 304 satin finish. The Closure Plate is 1/8" (3mm) thick and is welded the the bottom side of the grab bar. Closure plate is constructed of 12 gauge stainless steel. Unit has 3 holes on each flange for exposed mounting. Each flange is " in diameter Special Closure Plate is designed for Security and Anti-Ligature applications. Designed in mind for Behavioral Health and Detention Centers.

Heavy-duty 9/64" staked piano hinge adds to the robust construction. Drawn one piece seamless door of 22 gauge type 304 stainless steel with a satin finish. 1 gal. (3.7 L) waste capacity. wall opening 11-3/8"tall x 9-5/8"wide x 4"deep. Same as 20470 but mounts through partitions up to 1 1/4" thick. Expandable steel waste can ensures a perfect fit for thicker partitions. This for 2 stalls with a common partition divider.
