Fasteners

All partition security screws and fasteners are in stock for fast delivery. We offer partition security screws that are one way screws used with a flat head screw driver. Partition security screws must be used with toilet partitions. We only offer the one way screw type, the torq 27 t-bit is another version that we do not offer at this time. The through bolts are also called sex bolts which are male and female bolts for extra strength. Notice we have put the gripping range to make things easier. If you have a 1" panel and are attaching a bracket to it, you should use the 1-1/16"-1-5/16" range. We also offer the un do it tools, This tool will help undo the one way screws and remove them. This process involves lining the  tool up to the screw head and hitting the tool with a hammer lightly to create divots in the head of the screw so you can un do it. The screws are threaded so once you start it they should just unscrew with fingers.
RBA Partitions and Parts Catalog

View as Grid List

34 Items

per page
Set Descending Direction
  1. #10 x 5/8" Long Screw 6 Lobe(T-27)

    #10 x 5/8" Long Screw 6 Lobe(T-27) Chrome, 7/16" diameter head, Also known as 90963. This uses a Torx bit to drive the screw.

    9A90963
    $0.18
  2. #12 X 1-1/2" Long Screw 6 Lobe(T-27)

    #12 X 1-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91813. This uses a Torx bit to drive screw.

    9A91813
    $0.18
  3. #14 x 5/8" Long Screw 6 Lobe(T-27)

    #14 x 5/8" Screw 6 Lobe(T-27), Chrome, 7/16" diameter head, also known as 92193. This uses a Torx bit to drive screw.

    9A92193
    $0.18
  4. Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping

    Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe head torque. Both pieces included.

    9SS075T
    $0.40
  5. Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping

    Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

    9SS087T
    $0.40
  6. Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping

    Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

    9SS106T
    $0.40
  7. Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping

    Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread chrome plated and uses a 6 lobe  head torque. Both pieces included.

    9SS131T
    $0.40
  8. Torx driver bit T27

    Torx driver bit T27 for toilet partition security screws. These torq heads screws are used with brackets that hold the partitions together. This torx bit is for a T27 size and is hollow for a screw with a pin sticking out in the middle of head of the screw and uses a 1/4" shank bit.

    TBIT
    $1.39
  9. Toilet Partition Un-Do-It for #12 & #14 Screw

    For Removing Toilet Partition one-way screws. First line up to tighten screw, Hit with a hammer lightly to create divots in the screw head and unscrew. known as 8935, 650-7903.
    9A0810
    $17.39
  10. Toilet Partition Un-Do-It for #8 & #10 Screw

    For Removing Partition one-way screws. First line up to tighten screw, Hit with a hammer lightly to create divots in the screw head and unscrew. known as 8925, 650-7902.
    9A0807
    $17.39
  11. Toilet Partition Un-Do-It for #6 & #8 Screw

    For Removing Toilet Partition one-way screws. First line up to tighten screw, Hit with a hammer lightly to create divots in the screw head and unscrew. known as 8915, 650-7901.
    9A0804
    $17.39
  12. Toilet Partition Un-Do-Its Three Pack

    For Removing Toilet Partition one-way screws. First line up to tighten screw, Hit with a hammer lightly to create divots in the screw head and unscrew. known as 8905, 8915, 8925, 8935, 650-7904.
    9A0801
    $50.60
  13. Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip

    Chrome Plated One-Way Shoulder Screw & Barrel 1 5/16" - 1 5/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

    9SS131
    $0.40
  14. Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip

    Chrome Plated One-Way Shoulder Screw & Barrel 1 1/16" - 1 5/16" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

    9SS106
    $0.40
  15. One Way Shoulder Screw & Barrel Nut 7/8" - 1 1/16" Grip

    One-Way Shoulder Screw & Barrel 7/8" -1 1/16" Grip, Chrome Plated. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

    9SS087
    $0.40
  16. Chrome Plated One-Way Shoulder Screw & Barrel 5/8" -7/8" Grip

    Chrome Plated One-Way Shoulder Screw & Barrel 5/8" -7/8" Grip. Use a Flat Head Screw Driver to install. This is a 10-24 thread.

    9SS075
    $0.40
  17. Driver for 6-Lobe(Torx-Hex) Bits

    Hand Driver with Magnetic End, used to install and remove fasterners. Accepts Hex bits for use with different fasterners. Can be used with TBIT(T-27 Torx) bit we offer for installing fasteners on restroom partitions. End holds a standard 1/4" Hex Bit.

    9A8965
    $10.00
  18. 8-32 Screw Set for Latches

    The 8-32 screw set for the diamond shaped latches. This thread is special to the chrome or stainless steel diamond shape looking surfacemount latch. Note the screw length is 1-1/8" and is a one way screw, the female portion is included and is slotless head. This is for a 1" door.

    9F0302SCREWS
    $0.40
  19. Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping

    Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1/2" - 3/4" Gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread, stainless steel unplated and uses a 6 lobe  head torque. Both pieces included.

    9SS075TSS
    $1.15
  20. Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" Gripping

    Stainless Steel Torque Head Barrel Nut Shoulder Screw for 7/8" - 1-3/16" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stanless steel unplated and uses a 6 lobe head torque. Both pieces included.

    9SS087TSS
    $1.20
  21. Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" Gripping

    Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-3/16" - 1-3/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

    9SS106TSS
    $1.30
  22. Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" Gripping

    Stainless Steel Torque Head Barrel Nut Shoulder Screw for 1-1/4" - 1-5/8" gripping. Use with torque driver bit T27 for toilet partition security screws. 10-24 thread stainless steel unplated and uses a 6 lobe head torque. Both pieces included.

    9SS131TSS
    $1.35
  23. Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27)

    Stainless Steel #10 x 5/8" Long Screw 6 Lobe(T-27), 7/16" diameter head, Also known as 90969. This uses a Torx bit to drive the screw.

    9A90969
    $0.30

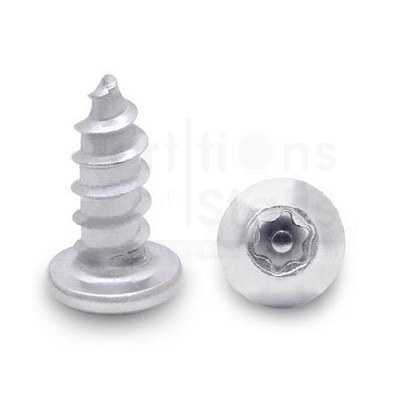

  24. Stainless Steel #14 x 5/8" Long Screw 6 Lobe(T-27)

    Stainless Steel #14 x 5/8" Screw 6 Lobe(T-27), 7/16" diameter head, also known as 92199. This uses a Torx bit to drive screw.

    9A92199
    $0.32
  25. #12 X 2" Long Screw 6 Lobe(T-27)

    #12 X 2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91913. This uses a Torx bit to drive screw.

    9A91913
    $0.25
  26. Stainless Steel #12 X 2" Long Screw 6 Lobe(T-27)

    Stainless Steel #12 X 2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91919. This uses a Torx bit to drive screw.

    9A91919
    $0.70
  27. #12 X 2-1/2" Long Screw 6 Lobe(T-27)

    #12 X 2-1/2" Screw 6 Lobe(T-27), Chrome, 1/2" diameter head, also known as a 91903. This uses a Torx bit to drive screw.

    9A91903
    $0.26
  28. Stainless Steel #12 X 2-1/2" Long Screw 6 Lobe(T-27)

    Stainless Steel #12 X 2-1/2" Screw 6 Lobe(T-27), 1/2" diameter head, also known as a 91909. This uses a Torx bit to drive screw.

    9A91909
    $0.75
